MNH15W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205-0504)

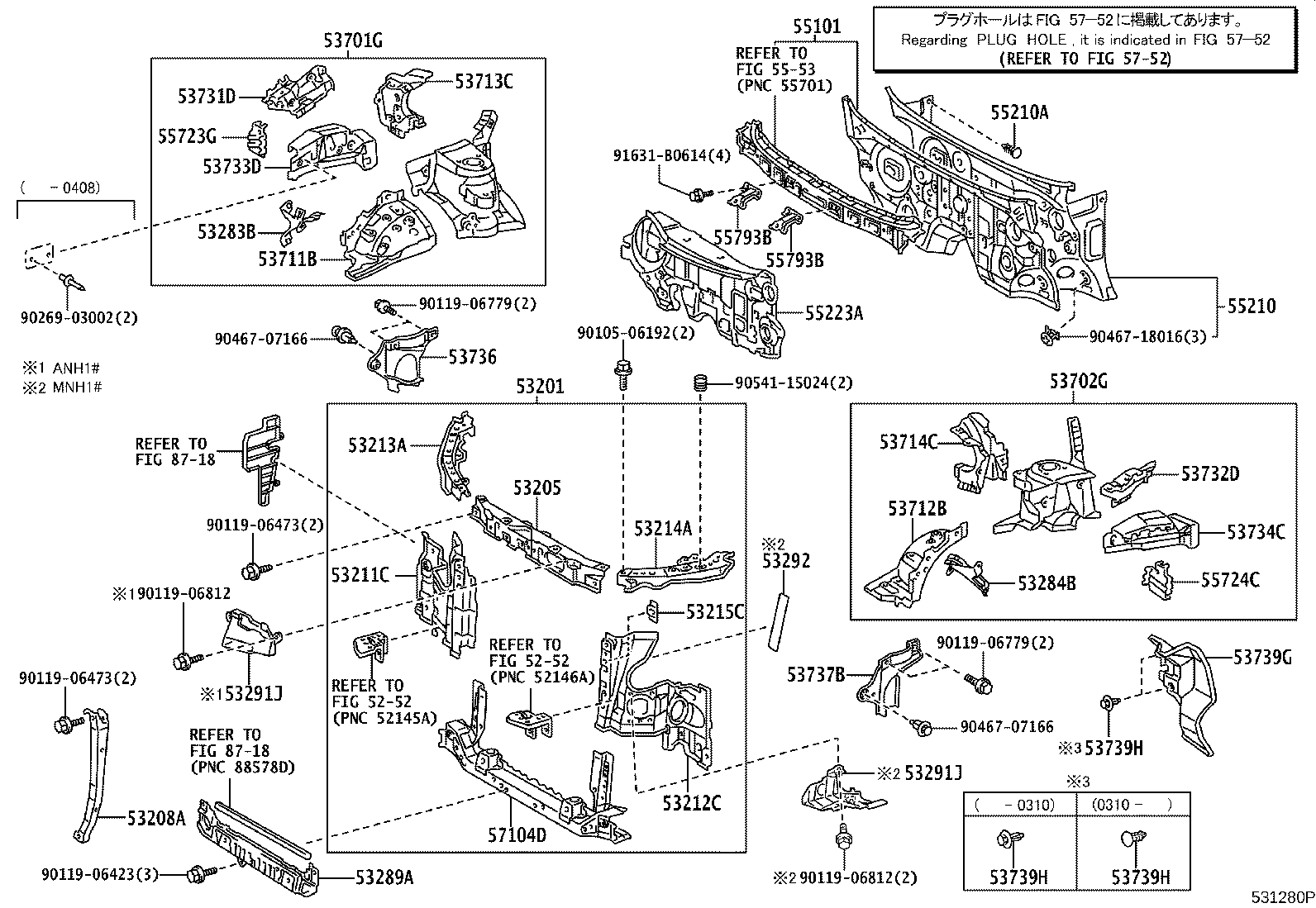

Click highlighted areas on diagram

diagram 5252 5252 53201 53205 53208A 53211C 53212C 53213A 53214A 53215C 53283B 53284B 53289A 53291J 53291J 53292 53701G 53702G 53711B 53712B 53713C 53714C 53731D 53732D 53733D 53734C 53736 53737B 53739G 53739H 53739H 53739H 55101 55210 55210A 55223A 5553 55723G 55724C 55793B 55793B 57104D 5752 8718 8718 9010506192 9011906423 9011906473 9011906473 9011906779 9011906779 9011906812 9011906812 9026903002 9046707166 9046707166 9046718016 9054115024 91631B0614
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53210-58010

MNH1#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-58010

MNH1#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53217-58020

ANH1#,MNH1#

 1
53217-58010

ANH1#,MNH1#

 1
53211C - SUPPORT, RADIATOR, RH
53211-58012

MNH1#

 1
53211-58010

ANH1#,MNH1#

 1
53211-58011

MNH1#

 1
53212C - SUPPORT, RADIATOR, LH
53212-58012

MNH1#

 1
53212-58010

MNH1#

 1
53212-58011

MNH1#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-58010

ANH1#,MNH1#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-58010

ANH1#,MNH1#

 1
53215C - BRACKET, BATTERY SUPPORT, NO.1
53215-58010

MNH1#

 1
53215-58020

MNH1#

 1
53283B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53283-58010

ANH1#,MNH1#

 1
53284B - REINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53284-58010

ANH1#,MNH1#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-58010

ANH1#,MNH1#

 1
53291J - SEAL, RADIATOR SUPPORT
53292-58010

MNH1#

 1
53291J - SEAL, RADIATOR SUPPORT
53292-58010

MNH1#

 1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53291-58010

MNH1#

 1
53701G - APRON SUB-ASSY, FRONT FENDER, RH
53701-58010

ANH1#,MNH1#

 1
53702G - APRON SUB-ASSY, FRONT FENDER, LH
53702-58010

ANH1#,MNH1#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-58010

ANH1#,MNH1#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-58010

ANH1#,MNH1#

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53707-58010

ANH1#,MNH1#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53708-58010

ANH1#,MNH1#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-58010

ANH1#,MNH1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-58010

ANH1#,MNH1#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-58010

ANH1#,MNH1#

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-58010

ANH1#,MNH1#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-33030

ANH1#,MNH1#

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-28020

ANH1#,MNH1#

 1
53739G - SEAL, FRONT FENDER APRON, REAR LH
53739-58010

ANH1#,MNH1#

 1
53739H - CLIP(FOR FRONT FENDER APRON SEAL)
90467-07121A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
90467-07044

ANH1#,MNH1#

 2
90467-08188

ANH1#,MNH1#

 2
53739H - CLIP(FOR FRONT FENDER APRON SEAL)
90467-07121A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
90467-07044

ANH1#,MNH1#

 2
90467-08188

ANH1#,MNH1#

 2
53739H - CLIP(FOR FRONT FENDER APRON SEAL)
90467-07121A1

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
90467-07044

ANH1#,MNH1#

 2
90467-08188

ANH1#,MNH1#

 2
55101 - PANEL SUB-ASSY, DASH
55101-58020

ANH1#,MNH1#

有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)

 1
55101-58010

ANH1#,MNH1#

 1
55101-58020

ANH1#,MNH1#

有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-58010

ANH1#,MNH1#

 1
55210A - CLIP
90467-07049C0

ANH1#,MNH1#..AX,MX,MZ

BLACK,TRIM0#

 2
55223A - INSULATOR, DASH PANEL, OUTER
55223-58010

ANH1#,MNH1#

 1
55723G - GUSSET, FRONT PANEL, RH
55723-58010

ANH1#,MNH1#

 1
55724C - GUSSET, FRONT PANEL, LH
55724-58010

ANH1#,MNH1#

 1
55793B - COVER, WIPER MOTOR SERVICE HOLE
55793-58020

ANH1#,MNH1#

左側

 1
55793-58010

ANH1#,MNH1#

右側

 1
55793B - COVER, WIPER MOTOR SERVICE HOLE
55793-58020

ANH1#,MNH1#

左側

 1
55793-58010

ANH1#,MNH1#

右側

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-58010

ANH1#,MNH1#

 1
57104-58030

ANH1#,MNH1#

 1
Common parts
90105-06192
90119-06423
90119-06473
90119-06779
90119-06812
90269-03002
90467-07166
90467-18016
90541-15024
91631-B0614
