MNH15W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )1MZFE

Click highlighted areas on diagram

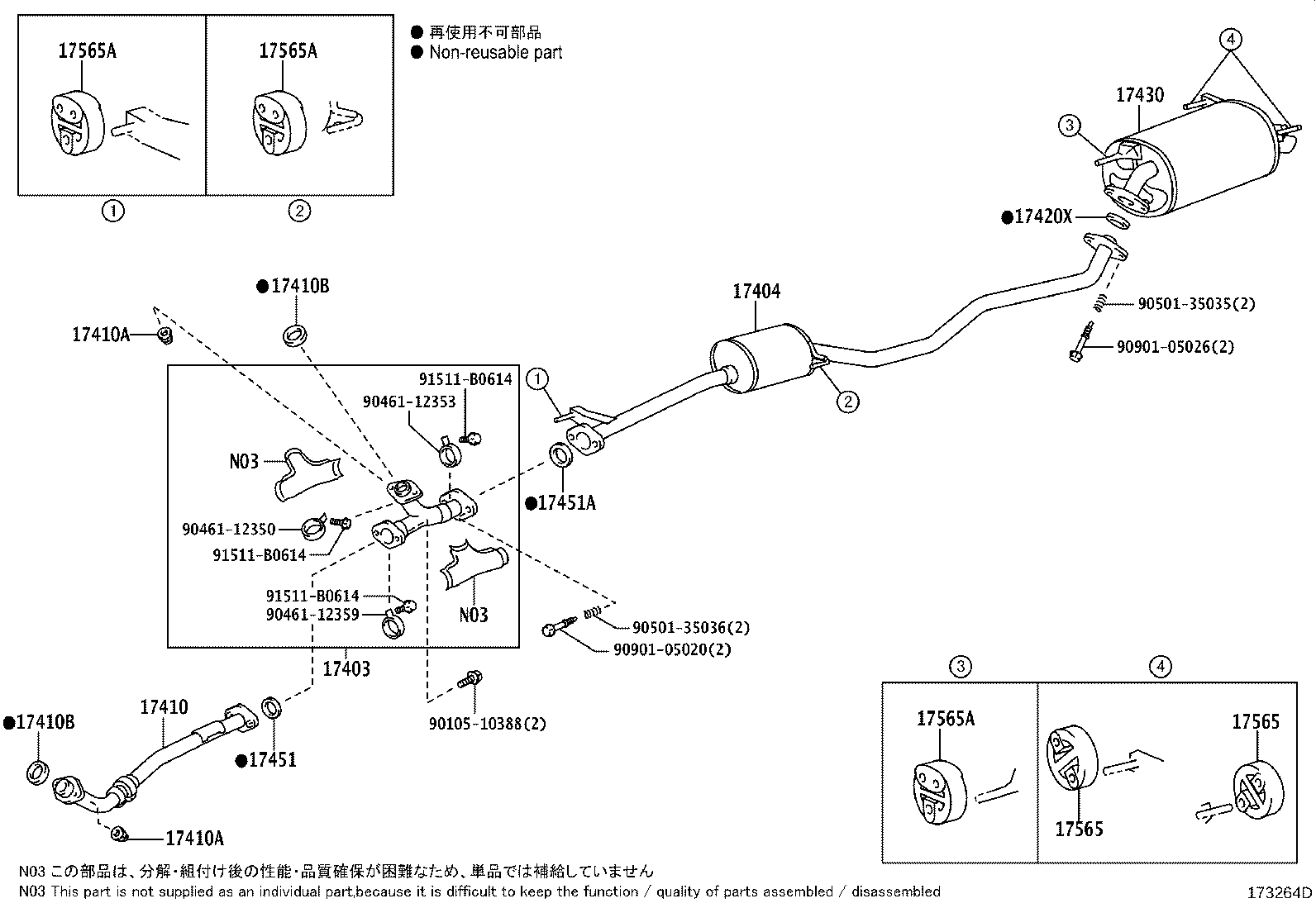

diagram 17403 17404 17410 17410A 17410A 17410B 17410B 17420X 17430 17451 17451A 17565 17565 17565A 17565A 17565A 9010510388 9046112350 9046112353 9046112359 9050135035 9050135036 9090105020 9090105026 91511B0614 91511B0614 91511B0614
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-20150

1MZFE..MNH15

 1
17404 - PIPE SUB-ASSY, EXHAUST FORKED
17404-20080

1MZFE..MNH15

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-20110

1MZFE..MNH15

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MNH1#

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MNH1#

 4
17410B - GASKET, EXHAUST PIPE
90917-06089

1MZFE..MNH1#

 2
17410B - GASKET, EXHAUST PIPE
90917-06089

1MZFE..MNH1#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-54010

2AZFE,1MZFE..ANH1#,MNH1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-20030

2AZFE,1MZFE..ANH1#,MNH1#..AX,MX,MZ

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

2AZFE,1MZFE..ANH10,MNH1#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-20020

1MZFE..MNH1#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1MZFE..ANH1#,MNH1#

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1MZFE..ANH1#,MNH1#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1MZFE..ANH1#,MNH1#

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1MZFE..ANH1#,MNH1#

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1MZFE..ANH1#,MNH1#

 3
Common parts
90105-10388
90461-12350
90461-12353
90461-12359
90501-35035
90501-35036
90901-05020
90901-05026
91511-B0614
