Toyota Alphard g/v MNH15 FOG LAMP

MNH15W-PRASK (2005)

Toyota Alphard G/V

Production Apr 2005 - Apr 2008

Engine 1MZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

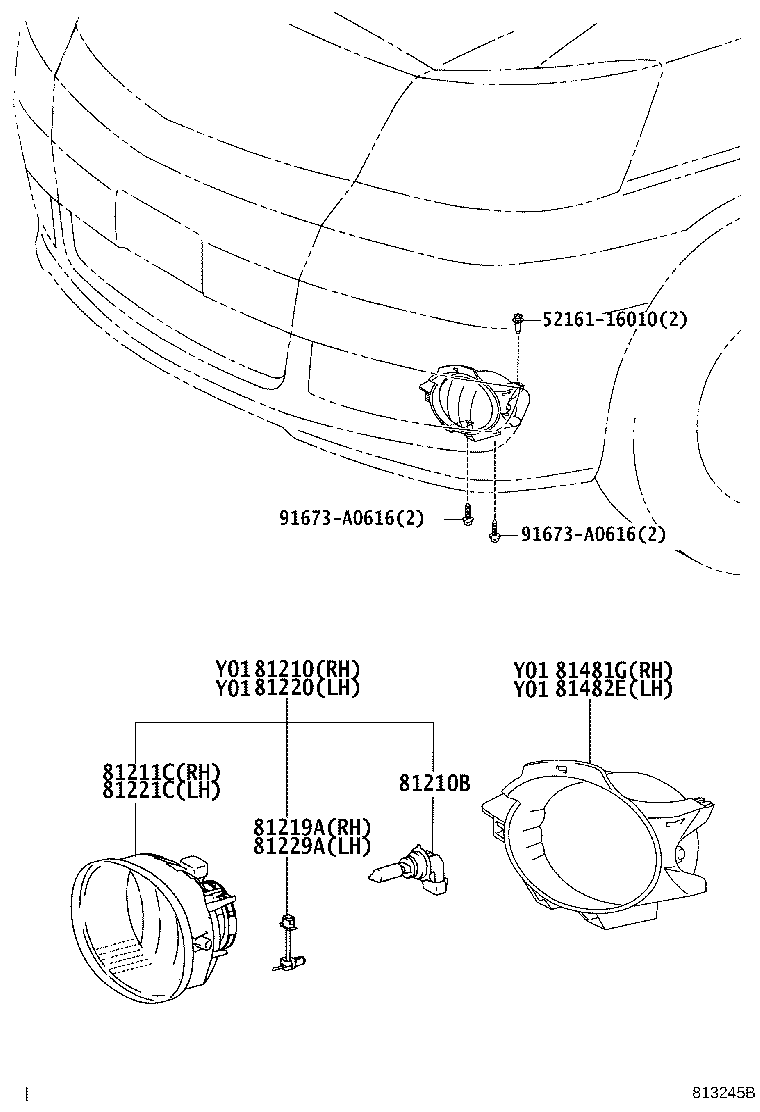

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210 - LAMP ASSY, FOG
81210-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81210B - BULB, FOG LAMP
90981-13071	ANH1#,MNH1#..AX,MX,MZ 12V 55W,ﾊﾛｹﾞﾝ	05/2002 - 04/2005	2
90981-13057	ANH1#,MNH1#..AS,MS 12V 35W	05/2002 - 04/2005	2
90981-13047	ANH1#,MNH1# 12V 55W,ﾊﾛｹﾞﾝ	04/2005 - 12/2999	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-13040	ANH1#,MNH1#..AS,MS	05/2002 - 04/2005	1
81211-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81211-28210	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
81211-58030	ANH1#,MNH1#..AX,MX,MZ	05/2002 - 05/2003	1
81219A - BRACKET, FOG LAMP, RH
81218-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81220 - LAMP ASSY, FOG, LH
81220-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81221-58030	ANH1#,MNH1#..AX,MX,MZ	05/2002 - 05/2003	1
81221-13040	ANH1#,MNH1#..AS,MS	05/2002 - 04/2005	1
81221-28110	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
81229A - BRACKET, FOG LAMP, LH
81228-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81481G - BRACKET, FOG LAMP, RH
81481-58010	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
81481-58020	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81482E - BRACKET, FOG LAMP, LH
81482-58020	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81482-58010	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
Common parts
52161-16010
91673-A0616

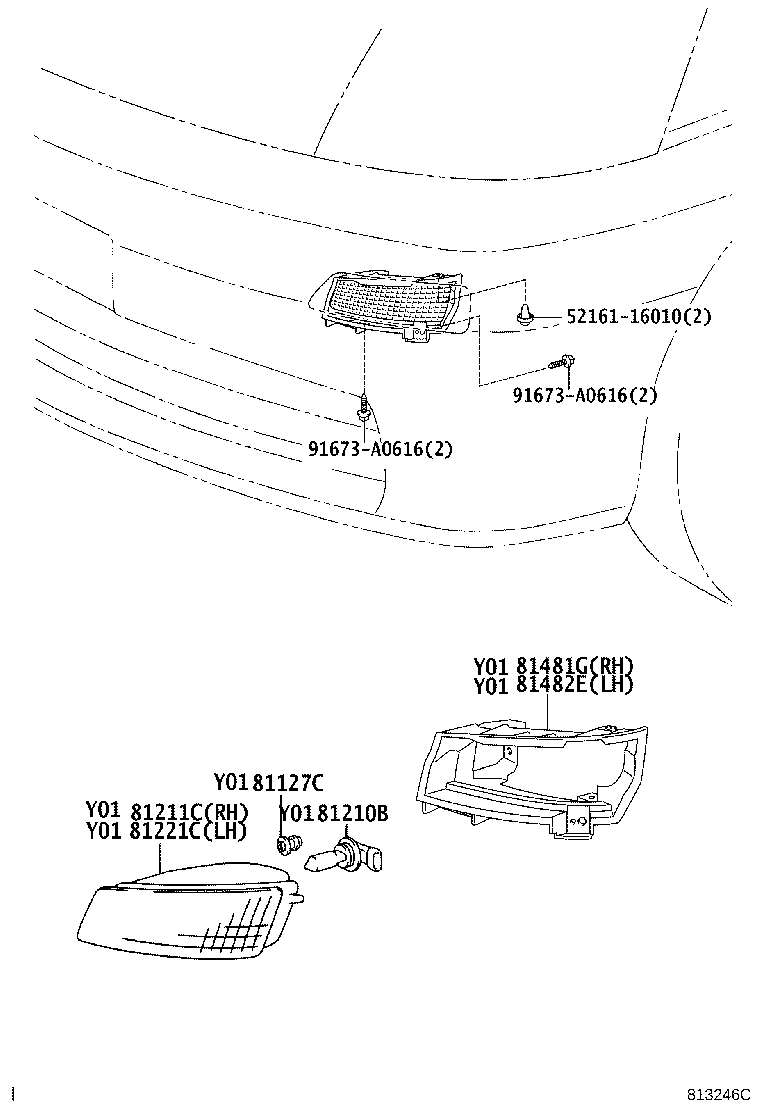

Click highlighted areas on diagram

Part #	Description	Period	Qty
81127C - BEARING FOG LAMP
90075-10811	ANH1#,MNH1#..AS,MS	05/2002 - 04/2005	2
90075-10811	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	2
81210B - BULB, FOG LAMP
90981-13071	ANH1#,MNH1#..AX,MX,MZ 12V 55W,ﾊﾛｹﾞﾝ	05/2002 - 04/2005	2
90981-13057	ANH1#,MNH1#..AS,MS 12V 35W	05/2002 - 04/2005	2
90981-13047	ANH1#,MNH1# 12V 55W,ﾊﾛｹﾞﾝ	04/2005 - 12/2999	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-13040	ANH1#,MNH1#..AS,MS	05/2002 - 04/2005	1
81211-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81211-28210	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
81211-58030	ANH1#,MNH1#..AX,MX,MZ	05/2002 - 05/2003	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-42050	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81221-58030	ANH1#,MNH1#..AX,MX,MZ	05/2002 - 05/2003	1
81221-13040	ANH1#,MNH1#..AS,MS	05/2002 - 04/2005	1
81221-28110	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
81481G - BRACKET, FOG LAMP, RH
81481-58010	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
81481-58020	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81482E - BRACKET, FOG LAMP, LH
81482-58020	ANH1#,MNH1#..AS,MS	04/2005 - 12/2999	1
81482-58010	ANH1#,MNH1#..AX,MX,MZ	04/2005 - 12/2999	1
Common parts
52161-16010
91673-A0616
