MNH15W-PRASK (2005)
Toyota Alphard G/V

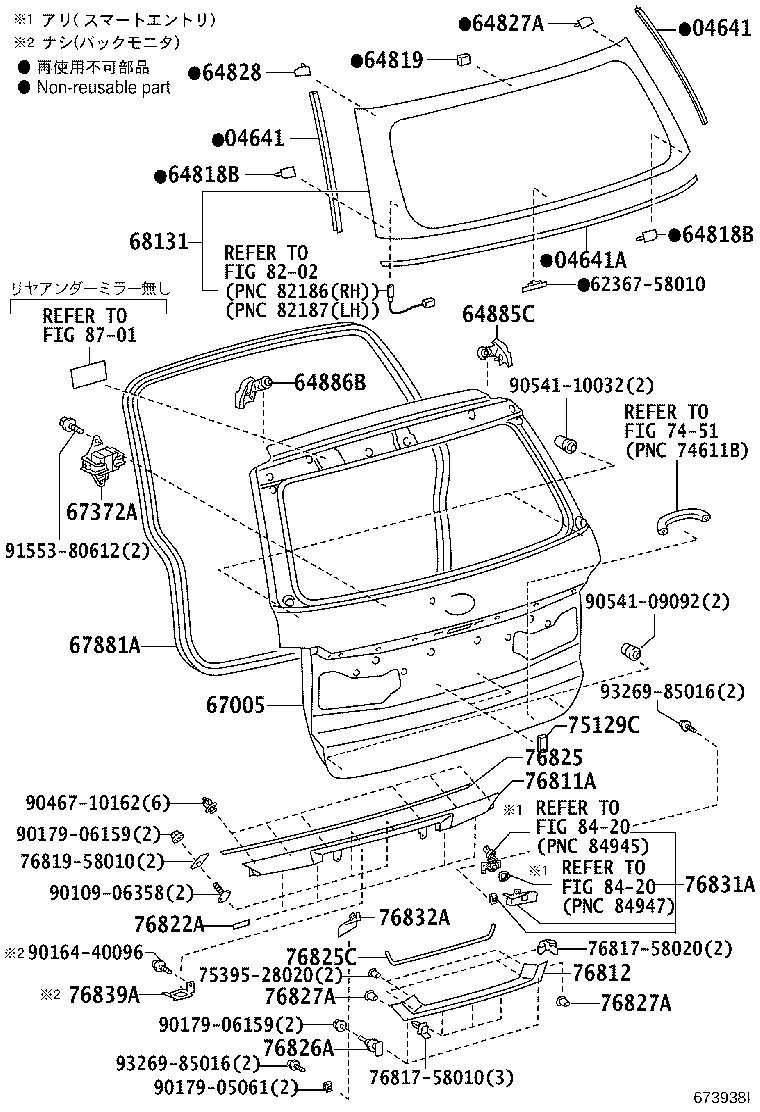

ILLUST NO. 2 OF 2(0504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 68294-58021 |
ANH1#,MNH1# 右側 |
1 | ||
| 68294-58031 |
ANH1#,MNH1# 左側 |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 68294-58021 |
ANH1#,MNH1# 右側 |
1 | ||
| 68294-58031 |
ANH1#,MNH1# 左側 |
1 | ||
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-58010 |
ANH1#,MNH1# |
1 | ||
| 68294-58010 |
ANH1#,MNH1# |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-58010 |
ANH1#,MNH1# 右側 |
1 | ||
| 64819-58010 |
ANH1#,MNH1# 左側 |
1 | ||
| 64819-58010 |
ANH1#,MNH1# 左側 |
1 | ||
| 64818-58010 |
ANH1#,MNH1# 右側 |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-58010 |
ANH1#,MNH1# 右側 |
1 | ||
| 64819-58010 |
ANH1#,MNH1# 左側 |
1 | ||
| 64819-58010 |
ANH1#,MNH1# 左側 |
1 | ||
| 64818-58010 |
ANH1#,MNH1# 右側 |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 68294-44050 |
ANH1#,MNH1# |
1 | ||
| 68294-44050 |
ANH1#,MNH1# |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-58010 |
ANH1#,MNH1# |
1 | ||
| 64827-58010 |
ANH1#,MNH1# |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-58010 |
ANH1#,MNH1# |
1 | ||
| 64828-58010 |
ANH1#,MNH1# |
1 | ||
| 64885C - CHANNEL, BACK DOOR GLASS, RH | ||||
| 64885-58010 |
ANH1#,MNH1# |
1 | ||
| 64885-58010 |
ANH1#,MNH1# |
1 | ||
| 64886B - CHANNEL, BACK DOOR GLASS, LH | ||||
| 64886-58010 |
ANH1#,MNH1# |
1 | ||
| 64886-58010 |
ANH1#,MNH1# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-58050 |
ANH1#,MNH1#..AS,MS,MZ |
1 | ||
| 67005-58060 |
ANH1#,MNH1#..08S..(AS,MS) ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾃﾞｭｱﾙﾋﾞｭｰ&ﾊﾞｯｸﾓﾆﾀｰ−有り(音声ｶﾞｲﾄﾞ 無し) |
1 | ||
| 67005-58090 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ) |
1 | ||
| 67005-58080 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り |
1 | ||
| 67005-58060 |
ANH1#,MNH1#..AS,MS,MZ ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ) |
1 | ||
| 67005-58090 |
ANH1#,MNH1#..08S..(AS,MS) PLATINUMｾﾚｸｼｮﾝ OR PLATINUMｾﾚｸｼｮﾝ2&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ&ｻｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005-58060 |
ANH1#,MNH1#..08S..(AS,MS) PRIME SELECTION&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ&ｻｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005-58060 |
ANH1#,MNH1#..AS,MS,MZ ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ) |
1 | ||
| 67005-58090 |
ANH1#,MNH1#..08S..(AS,MS) PRIME SELECTION&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ&ｻｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005-58090 |
ANH1#,MNH1#..08S..(AS,MS) PLATINUMｾﾚｸｼｮﾝ OR PLATINUMｾﾚｸｼｮﾝ2&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ&ｻｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005-58090 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ) |
1 | ||
| 67005-58080 |
ANH1#,MNH1#..08S..(AS,MS) PRIME SELECTION&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り |
1 | ||
| 67005-58090 |
ANH1#,MNH1#..08S..(AS,MS) PRIME SELECTION&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ&ｻｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005-58080 |
ANH1#,MNH1#..08S..(AS,MS) PLATINUMｾﾚｸｼｮﾝ OR PLATINUMｾﾚｸｼｮﾝ2&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り |
1 | ||
| 67005-58060 |
ANH1#,MNH1#..08S..(AS,MS) PRIME SELECTION&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀｰ−有り(ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ&ｻｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-58010 |
ANH1#,MNH1# |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-58010 |
ANH1#,MNH1# |
1 | ||
| 67881-58010 |
ANH1#,MNH1# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-58010 |
ANH1#,MNH1# *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68105-58010 |
ANH1#,MNH1# *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68105-58020 |
ANH1#,MNH1# *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,寒冷地仕様 |
1 | ||
| 68105-58020 |
ANH1#,MNH1# *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,寒冷地仕様 |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-58010 |
ANH1#,MNH1# |
2 | ||
| 75129-58010 |
ANH1#,MNH1# |
2 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-58040D1 |
ANH1#,MNH1#..AX,MX,MZ BLACKISH RED MC.,3R0 |
1 | ||
| 76811-58040A0 |
ANH1#,MNH1# WHITE PM.,042 |
1 | ||
| 76811-58040C0 |
ANH1#,MNH1# BLACK MC.,209 |
1 | ||
| 76811-58010 |
ANH1#,MNH1# ﾒｯｷ |
1 | ||
| 76811-58040F0 |
ANH1#,MNH1#..AX,MX,MZ GOLD ME.,593 |
1 | ||
| 76811-58040A1 |
ANH1#,MNH1# WHITE PEARL CS.,070 |
1 | ||
| 76811-58040J0 |
ANH1#,MNH1# DK.BLUE MC.,8K8 |
1 | ||
| 76811-58040B1 |
ANH1#,MNH1# SILVER ME.,1F7 |
1 | ||
| 76811-58040B0 |
ANH1#,MNH1# SILVER ME.,1E4 |
1 | ||
| 76812 - GARNISH, BACK DOOR, OUTSIDE LOWER | ||||
| 76812-58010 |
ANH1#,MNH1# |
1 | ||
| 76812-58020 |
ANH1#,MNH1# |
1 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76825-58020 |
ANH1#,MNH1# |
4 | ||
| 76825-58020 |
ANH1#,MNH1# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-58030 |
ANH1#,MNH1# |
1 | ||
| 76825-58060C0 |
ANH1#,MNH1#..AX,MX,MZ BLACK,1E4 ,209 ,3R0 ,593 ,8K8 |
1 | ||
| 76825-58061C0 |
ANH1#,MNH1#..AX,MX,MZ BLACK,209 ,3R0 ,593 ,8K8 |
1 | ||
| 76825-58060B0 |
ANH1#,MNH1# LT. GRAY,042 ,1F7 |
1 | ||
| 76825-58061B0 |
ANH1#,MNH1# LT. GRAY,042 ,070 ,1F7 |
1 | ||
| 76825-58060C0 |
ANH1#,MNH1#..AS,MS BLACK,1E4 ,209 ,8K8 |
1 | ||
| 76825-58061B1 |
ANH1#,MNH1# MEDIUM GRAY,070 ,1F7 |
1 | ||
| 76825-58061C0 |
ANH1#,MNH1#..AS,MS BLACK,1E4 ,209 ,8K8 |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-58070 |
ANH1#,MNH1# |
1 | ||
| 76825-58010 |
ANH1#,MNH1# |
1 | ||
| 76826A - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-58010 |
ANH1#,MNH1# |
2 | ||
| 76826-58010 |
ANH1#,MNH1# |
2 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-58010 |
ANH1#,MNH1# |
2 | ||
| 76827A - RETAINER, BACK DOOR GARNISH, NO.2 | ||||
| 76827-58010 |
ANH1#,MNH1# |
2 | ||
| 76831A - COVER, BACK DOOR FINISH PANEL, RH | ||||
| 75403-58020 |
ANH1#,MNH1#..AS,MS,MZ |
1 | ||
| 76832A - COVER, BACK DOOR FINISH PANEL, LH | ||||
| 76832-58010 |
ANH1#,MNH1# |
1 | ||
| 76839A - COVER, BACK DOOR GARNISH | ||||
| 76839-58020 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 62367-58010 | ||||
| 75395-28020 | ||||
| 76817-58010 | ||||
| 76817-58020 | ||||
| 76819-58010 | ||||
| 90109-06358 | ||||
| 90164-40096 | ||||
| 90179-05061 | ||||
| 90179-06159 | ||||
| 90467-10162 | ||||
| 90541-09092 | ||||
| 90541-10032 | ||||
| 91553-80612 | ||||
| 93269-85016 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8202 | ||||
| 8420 | ||||
| 8701 | ||||
