MNH15W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

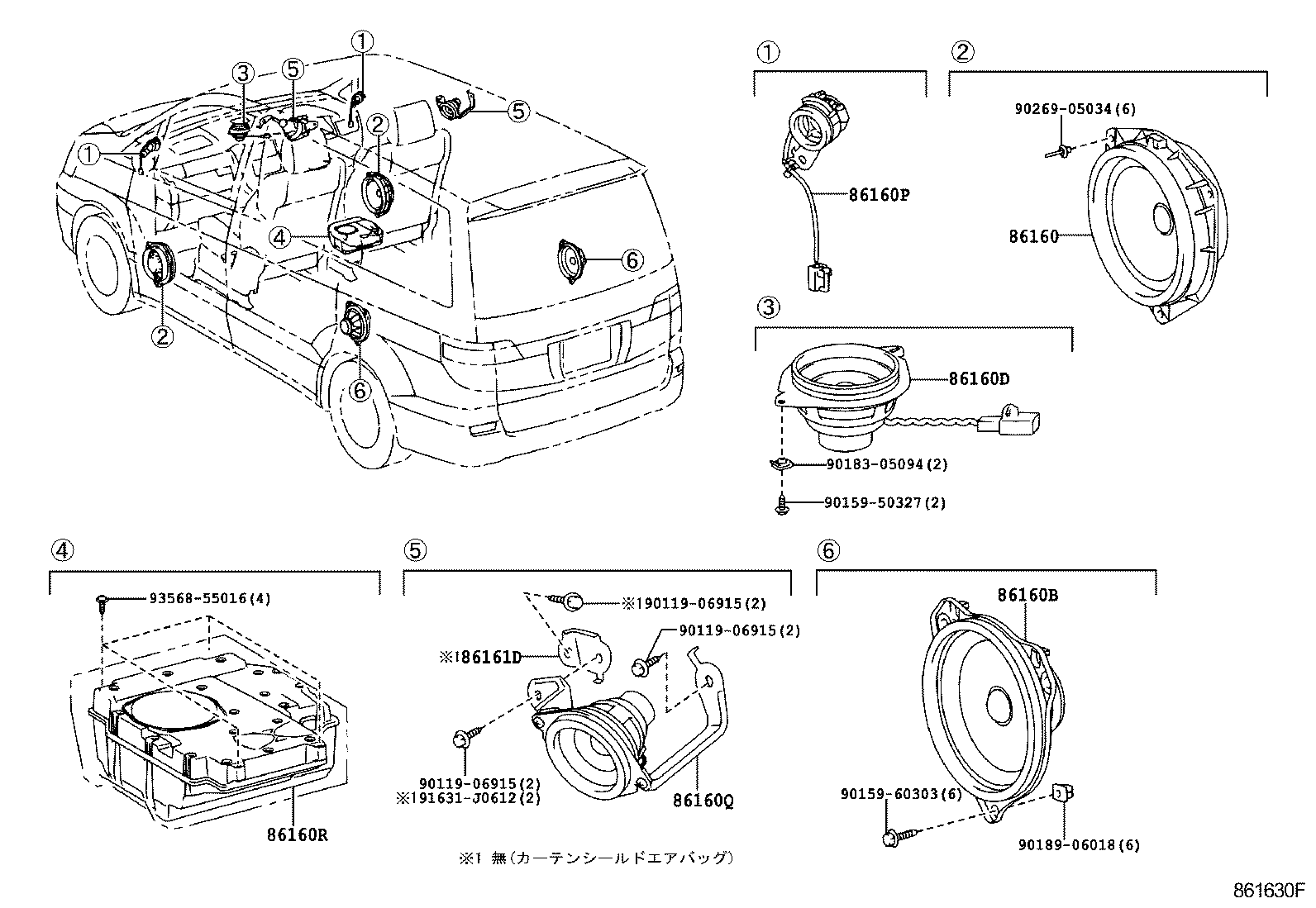

Click highlighted areas on diagram

diagram 86160 86160B 86160D 86160P 86160Q 86160R 86161D 9011906915 9011906915 9011906915 9015950327 9015960303 9018305094 9018906018 9026905034 91631J0612 9356855016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-22890

ANH1#,MNH1#

 2
86160-58060

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 2
86160B - SPEAKER ASSY, REAR
86160-58070

ANH1#,MNH1#

 2
86160-58110

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 2
86160-58110

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-58050

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-58030

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),右側

 1
86160-58040

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),左側

 1
86160-58010

ANH1#,MNH1#

右側

 1
86160-58020

ANH1#,MNH1#

左側

 1
86160Q - SPEAKER ASSY, ROOF
86160-58080

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),右側

 1
86160-58080

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),右側

 1
86160-58090

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),左側

 1
86160-58090

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),左側

 1
86160R - SPEAKER ASSY, STEREO COMPONENT
86150-58010

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 1
86150-58010

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-58010

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),右側

 1
86161-58020

ANH1#,MNH1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),左側

 1
Common parts
90119-06915
90159-50327
90159-60303
90183-05094
90189-06018
90269-05034
91631-J0612
93568-55016
