MNH15W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

Click highlighted areas on diagram

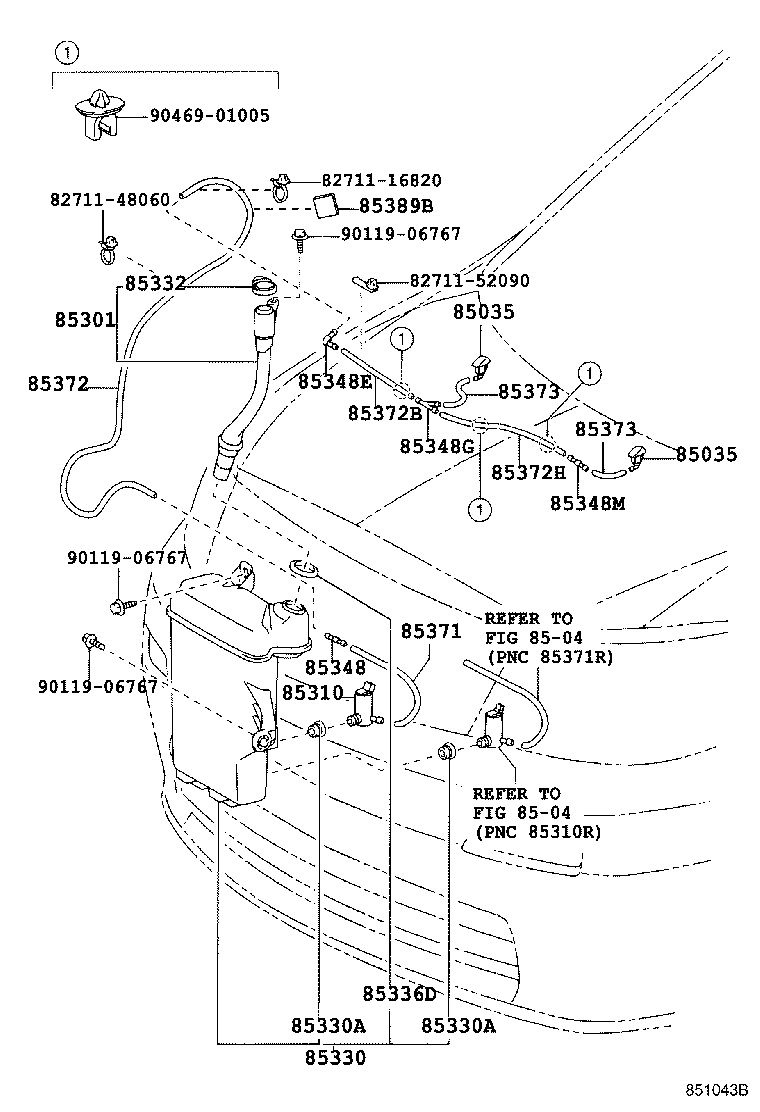

diagram 8271116820 8271148060 8271152090 85035 85035 8504 8504 85301 85310 85330 85330A 85330A 85332 85336D 85348 85348E 85348G 85348M 85371 85372 85372B 85372H 85373 85373 85389B 9011906767 9011906767 9011906767 9046901005
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-58020D0

MNH1#..MZ

BORDEAUX MC.,3P2

 2
85381-58020F0

MNH1#..MZ

GOLD ME.,593

 2
85381-58020B1

MNH1#..MZ

GRAY M.M.,1E8

 2
85381-58020B0

MNH1#..MZ

SILVER ME.,1C0

 2
85381-58020C0

MNH1#..MZ

BLACK MC.,209

 2
85381-58020G0

MNH1#..MZ

LT. GREEN M.M.,6T2

 2
85381-68010

ANH1#,MNH1#..AS,AX,MS,MX

 2
85381-58020A0

MNH1#..MZ

WHITE PM.,042 ,2JD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-58020D0

MNH1#..MZ

BORDEAUX MC.,3P2

 2
85381-58020F0

MNH1#..MZ

GOLD ME.,593

 2
85381-58020B1

MNH1#..MZ

GRAY M.M.,1E8

 2
85381-58020B0

MNH1#..MZ

SILVER ME.,1C0

 2
85381-58020C0

MNH1#..MZ

BLACK MC.,209

 2
85381-58020G0

MNH1#..MZ

LT. GREEN M.M.,6T2

 2
85381-68010

ANH1#,MNH1#..AS,AX,MS,MX

 2
85381-58020A0

MNH1#..MZ

WHITE PM.,042 ,2JD

 2
85301 - INLET SUB-ASSY, WASHER
85301-58010

ANH1#,MNH1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10280

ANH1#,MNH1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-58010

ANH1#,MNH1#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ANH1#,MNH1#

 2
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ANH1#,MNH1#

 2
85332 - CAP, WINDSHIELD WASHER JAR
85316-16070

ANH1#,MNH1#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

ANH1#,MNH1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ANH1#,MNH1#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

ANH1#,MNH1#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-12250

ANH1#,MNH1#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

ANH1#,MNH1#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

ANH1#,MNH1#

*H,L=410

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

ANH1#,MNH1#

*H,L=990

 1
90099-33299

ANH1#,MNH1#

*H,L=900

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

ANH1#,MNH1#

*H,L=430

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-59024

ANH1#,MNH1#

*H,L=470

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ANH1#,MNH1#

*H,L=140

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ANH1#,MNH1#

*H,L=140

 2
85389B - PROTECTOR, WINDSHIELD WASHER
85389-28130

ANH1#,MNH1#

 1
Common parts
82711-16820
82711-48060
82711-52090
90119-06767
90469-01005
Linked diagrams
8504
