MNH15W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

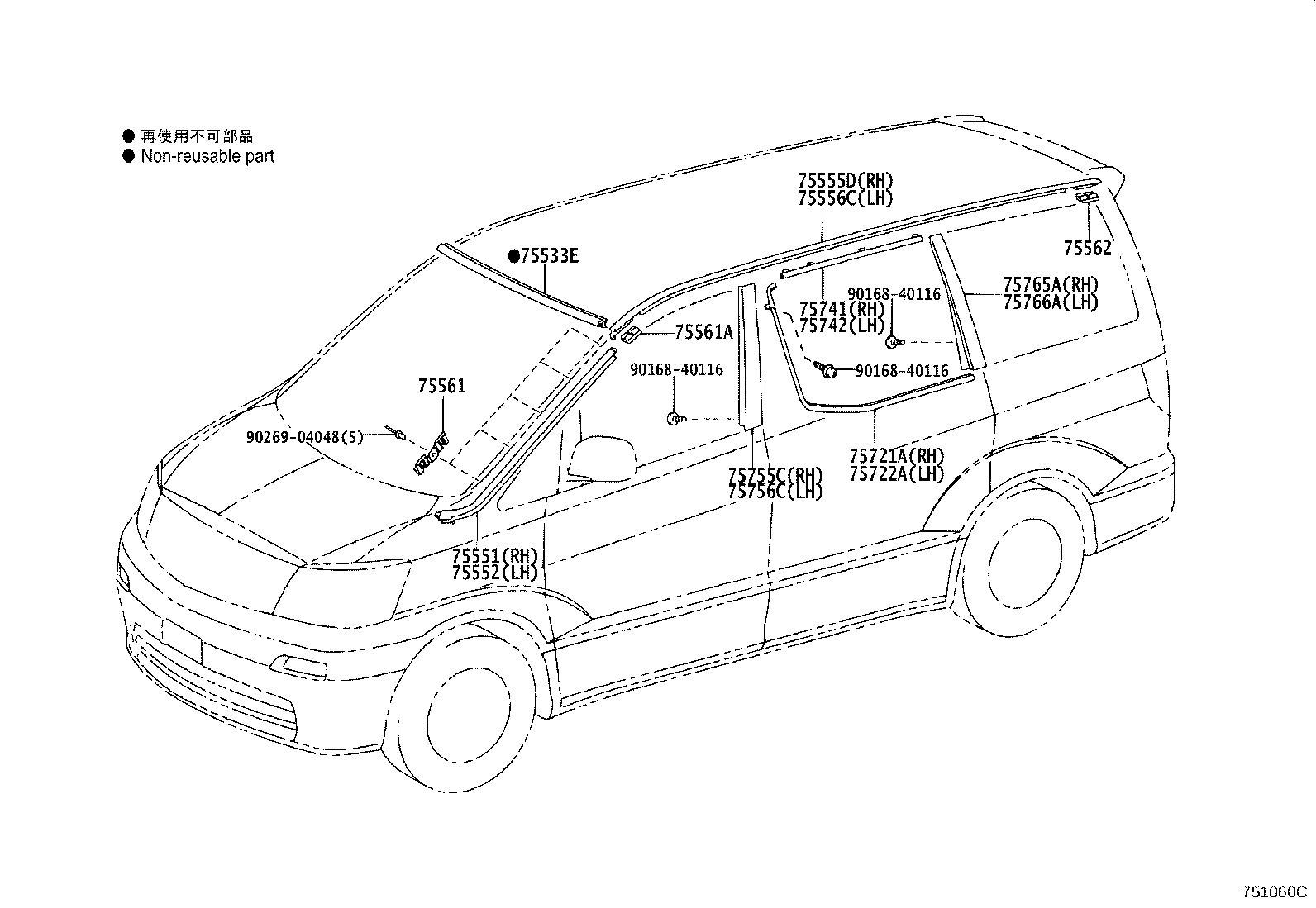

Click highlighted areas on diagram

diagram 75533E 75551 75552 75555D 75556C 75561 75561A 75562 75721A 75722A 75741 75742 75755C 75756C 75765A 75766A 9016840116 9016840116 9016840116 9026904048
Part # Description Qty Price
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-58010

ANH1#,MNH1#

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-58010

ANH1#,MNH1#

塗装不要

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-58010

ANH1#,MNH1#

塗装不要

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-58010

ANH1#,MNH1#

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-58010

ANH1#,MNH1#

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75545-58010

ANH1#,MNH1#

 10
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-58020

ANH1#,MNH1#

 2
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75561-58020

ANH1#,MNH1#

 2
75721A - MOULDING, REAR DOOR BELT, RH
75721-58010

ANH1#,MNH1#

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-58010

ANH1#,MNH1#

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-58010

ANH1#,MNH1#

塗装不要

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-58010

ANH1#,MNH1#

塗装不要

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-58010

ANH1#,MNH1#

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-58010

ANH1#,MNH1#

 1
75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-58010

ANH1#,MNH1#

 1
75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-58010

ANH1#,MNH1#

 1
Common parts
90168-40116
90269-04048
