MNH15W-PFPSK (2002)
Toyota Alphard G/V

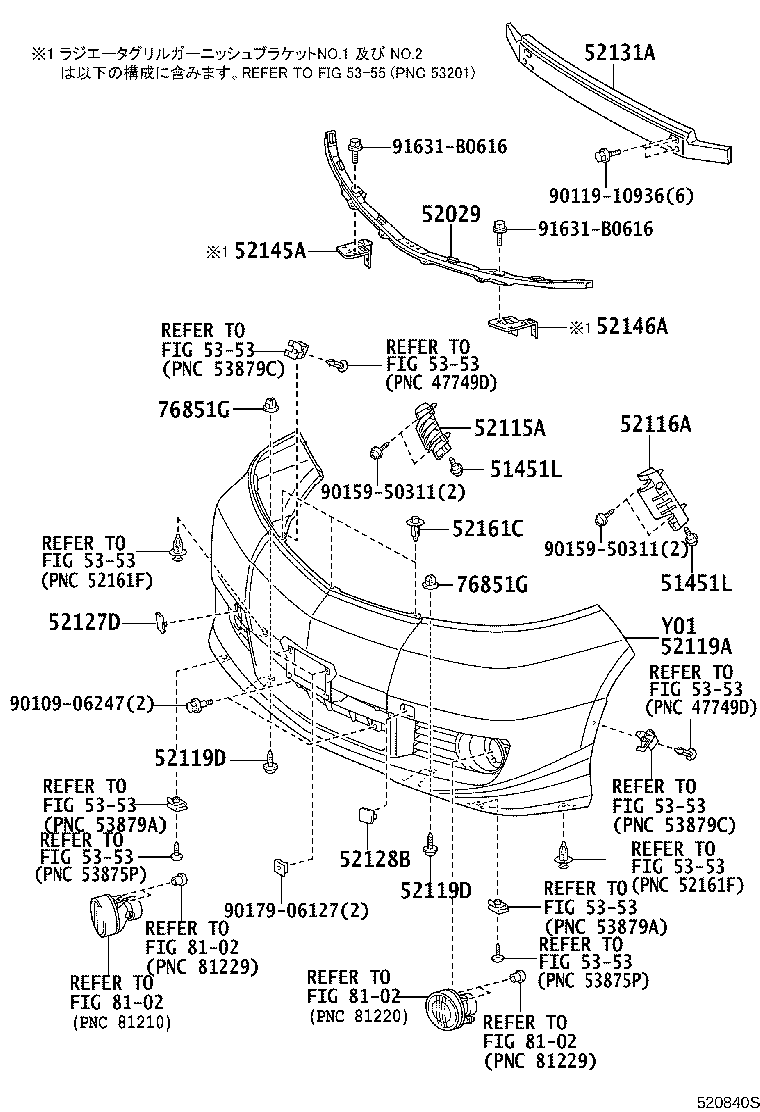

(0205-0504)AX,MX,MZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
ANH1#,MNH1# |
2 | ||
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
ANH1#,MNH1# |
2 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-58010 |
ANH1#,MNH1# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58010 |
ANH1#,MNH1# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58010 |
ANH1#,MNH1# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58040B1 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GRAY M.M.,1E8 |
1 | ||
| 52119-58050B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 52119-58060B1 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),GRAY M.M.,1E8 |
1 | ||
| 52119-58060B1 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,GRAY M.M.,1E8 |
1 | ||
| 52119-58020B1 |
MNH1#..MZ GRAY M.M.,1E8 |
1 | ||
| 52119-58020B0 |
MNH1#..MZ SILVER ME.,1C0 |
1 | ||
| 52119-58020C1 |
MNH1#..MZ BLACK MC.,209 |
1 | ||
| 52119-58020D0 |
MNH1#..MZ BORDEAUX MC.,3P2 |
1 | ||
| 52119-58020C0 |
MNH1#..MZ GRACEFUL PEARL TONIN,2JD |
1 | ||
| 52119-58020A0 |
MNH1#..MZ WHITE PM.,042 |
1 | ||
| 52119-58040C0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BLACK MC.,209 |
1 | ||
| 52119-58040C1 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GRACEFUL PEARL TONIN,2JD |
1 | ||
| 52119-58020F0 |
MNH1#..MZ GOLD ME.,593 |
1 | ||
| 52119-58040G0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,LT. GREEN M.M.,6T2 |
1 | ||
| 52119-58040F0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GOLD ME.,593 |
1 | ||
| 52119-58060B0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,SILVER ME.,1C0 |
1 | ||
| 52119-58020G0 |
MNH1#..MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52119-58060A0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,WHITE PM.,042 |
1 | ||
| 52119-58060A0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),WHITE PM.,042 |
1 | ||
| 52119-58050C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 52119-58050B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 52119-58060C0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),BLACK MC.,209 |
1 | ||
| 52119-58040D0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BORDEAUX MC.,3P2 |
1 | ||
| 52119-58050A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 52119-58060C0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,BLACK MC.,209 |
1 | ||
| 52119-58040A0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,WHITE PM.,042 |
1 | ||
| 52119-58906 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-58060B0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),SILVER ME.,1C0 |
1 | ||
| 52119-58060J0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,DK.BLUE MC.,8K8 |
1 | ||
| 52119-58060J0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-58050J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 52119-58040B0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,SILVER ME.,1C0 |
1 | ||
| 52119-58906 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ANH1#,MNH1#..AX,MX,MZ |
4 | ||
| 90159-60383 |
ANH1#,MNH1#..AS,MS |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ANH1#,MNH1#..AX,MX,MZ |
4 | ||
| 90159-60383 |
ANH1#,MNH1#..AS,MS |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-58030D0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BORDEAUX MC.,3P2 |
1 | ||
| 52127-58030B0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,SILVER ME.,1C0 |
1 | ||
| 52127-58030A0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,WHITE PM.,042 |
1 | ||
| 52127-58030D1 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,SHELL ME.,2JD |
1 | ||
| 52127-58030B1 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GRAY M.M.,1E8 |
1 | ||
| 52127-58030C0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BLACK MC.,209 |
1 | ||
| 52127-58030G0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,LT. GREEN M.M.,6T2 |
1 | ||
| 52127-58030F0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GOLD ME.,593 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58020B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 52127-58010B1 |
MNH1#..MZ GRAY M.M.,1E8 |
1 | ||
| 52127-58010A0 |
MNH1#..MZ WHITE PM.,042 |
1 | ||
| 52127-58010A0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,WHITE PM.,042 |
1 | ||
| 52127-58010B0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,SILVER ME.,1C0 |
1 | ||
| 52127-58010C0 |
MNH1#..MZ BLACK MC.,209 |
1 | ||
| 52127-58010D0 |
MNH1#..MZ BORDEAUX MC.,3P2 |
1 | ||
| 52127-58010B0 |
MNH1#..MZ SILVER ME.,1C0 |
1 | ||
| 52127-58010D1 |
ANH1#,MNH1#..AX,MX,MZ SHELL ME.,2JD |
1 | ||
| 52127-58010F0 |
MNH1#..MZ GOLD ME.,593 |
1 | ||
| 52127-58010D0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BORDEAUX MC.,3P2 |
1 | ||
| 52127-58010G0 |
MNH1#..MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52127-58010C0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BLACK MC.,209 |
1 | ||
| 52127-58020B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 52127-58010F0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GOLD ME.,593 |
1 | ||
| 52127-58020A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 52127-58010G0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,LT. GREEN M.M.,6T2 |
1 | ||
| 52127-58020C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 52127-58020J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58010C0 |
ANH1#,MNH1#..AX,MX,MZ BLACK MC.,209 |
1 | ||
| 52128-58010B1 |
MNH1#..MZ GRAY M.M.,1E8 |
1 | ||
| 52128-58020B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 52128-58010A0 |
ANH1#,MNH1#..AX,MX,MZ WHITE PM.,042 |
1 | ||
| 52128-58010D0 |
ANH1#,MNH1#..AX,MX,MZ BORDEAUX MC.,3P2 |
1 | ||
| 52128-58020B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 52128-58010B0 |
ANH1#,MNH1#..AX,MX,MZ SILVER ME.,1C0 |
1 | ||
| 52128-58010D1 |
ANH1#,MNH1#..AX,MX,MZ SHELL ME.,2JD |
1 | ||
| 52128-58020A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 52128-58020J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 52128-58010G0 |
ANH1#,MNH1#..AX,MX,MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52128-58010F0 |
ANH1#,MNH1#..AX,MX,MZ GOLD ME.,593 |
1 | ||
| 52128-58020C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-58010 |
ANH1#,MNH1# |
1 | ||
| 53903-58010 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-58010 |
ANH1#,MNH1# |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-58010 |
ANH1#,MNH1# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH1#,MNH1# |
3 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06006 |
ANH1#,MNH1# |
2 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-06065 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 8102 | ||||

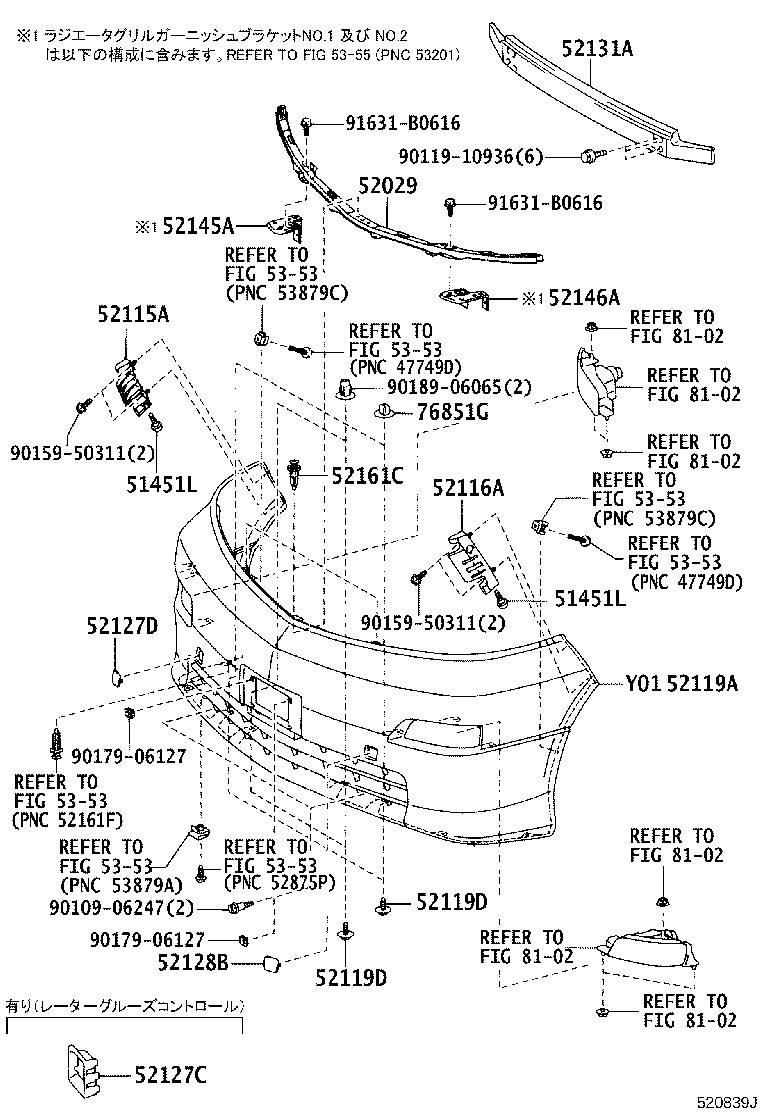

(0205-0504)AS,MS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
ANH1#,MNH1# |
2 | ||
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
ANH1#,MNH1# |
2 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-58010 |
ANH1#,MNH1# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58010 |
ANH1#,MNH1# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58010 |
ANH1#,MNH1# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58040B1 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GRAY M.M.,1E8 |
1 | ||
| 52119-58050B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 52119-58060B1 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),GRAY M.M.,1E8 |
1 | ||
| 52119-58060B1 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,GRAY M.M.,1E8 |
1 | ||
| 52119-58020B1 |
MNH1#..MZ GRAY M.M.,1E8 |
1 | ||
| 52119-58020B0 |
MNH1#..MZ SILVER ME.,1C0 |
1 | ||
| 52119-58020C1 |
MNH1#..MZ BLACK MC.,209 |
1 | ||
| 52119-58020D0 |
MNH1#..MZ BORDEAUX MC.,3P2 |
1 | ||
| 52119-58020C0 |
MNH1#..MZ GRACEFUL PEARL TONIN,2JD |
1 | ||
| 52119-58020A0 |
MNH1#..MZ WHITE PM.,042 |
1 | ||
| 52119-58040C0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BLACK MC.,209 |
1 | ||
| 52119-58040C1 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GRACEFUL PEARL TONIN,2JD |
1 | ||
| 52119-58020F0 |
MNH1#..MZ GOLD ME.,593 |
1 | ||
| 52119-58040G0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,LT. GREEN M.M.,6T2 |
1 | ||
| 52119-58040F0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GOLD ME.,593 |
1 | ||
| 52119-58060B0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,SILVER ME.,1C0 |
1 | ||
| 52119-58020G0 |
MNH1#..MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52119-58060A0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,WHITE PM.,042 |
1 | ||
| 52119-58060A0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),WHITE PM.,042 |
1 | ||
| 52119-58050C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 52119-58050B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 52119-58060C0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),BLACK MC.,209 |
1 | ||
| 52119-58040D0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BORDEAUX MC.,3P2 |
1 | ||
| 52119-58050A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 52119-58060C0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,BLACK MC.,209 |
1 | ||
| 52119-58040A0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,WHITE PM.,042 |
1 | ||
| 52119-58906 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-58060B0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),SILVER ME.,1C0 |
1 | ||
| 52119-58060J0 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り,DK.BLUE MC.,8K8 |
1 | ||
| 52119-58060J0 |
ANH1#,MNH1#..AS,MS 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ),DK.BLUE MC.,8K8 |
1 | ||
| 52119-58050J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 52119-58040B0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,SILVER ME.,1C0 |
1 | ||
| 52119-58906 |
ANH1#,MNH1#..AS,MS ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ANH1#,MNH1#..AX,MX,MZ |
4 | ||
| 90159-60383 |
ANH1#,MNH1#..AS,MS |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ANH1#,MNH1#..AX,MX,MZ |
4 | ||
| 90159-60383 |
ANH1#,MNH1#..AS,MS |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58020B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 52127-58010B1 |
MNH1#..MZ GRAY M.M.,1E8 |
1 | ||
| 52127-58010A0 |
MNH1#..MZ WHITE PM.,042 |
1 | ||
| 52127-58010A0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,WHITE PM.,042 |
1 | ||
| 52127-58010B0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,SILVER ME.,1C0 |
1 | ||
| 52127-58010C0 |
MNH1#..MZ BLACK MC.,209 |
1 | ||
| 52127-58010D0 |
MNH1#..MZ BORDEAUX MC.,3P2 |
1 | ||
| 52127-58010B0 |
MNH1#..MZ SILVER ME.,1C0 |
1 | ||
| 52127-58010D1 |
ANH1#,MNH1#..AX,MX,MZ SHELL ME.,2JD |
1 | ||
| 52127-58010F0 |
MNH1#..MZ GOLD ME.,593 |
1 | ||
| 52127-58010D0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BORDEAUX MC.,3P2 |
1 | ||
| 52127-58010G0 |
MNH1#..MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52127-58010C0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,BLACK MC.,209 |
1 | ||
| 52127-58020B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 52127-58010F0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,GOLD ME.,593 |
1 | ||
| 52127-58020A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 52127-58010G0 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,LT. GREEN M.M.,6T2 |
1 | ||
| 52127-58020C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 52127-58020J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58010C0 |
ANH1#,MNH1#..AX,MX,MZ BLACK MC.,209 |
1 | ||
| 52128-58010B1 |
MNH1#..MZ GRAY M.M.,1E8 |
1 | ||
| 52128-58020B1 |
ANH1#,MNH1#..AS,MS GRAY M.M.,1E8 |
1 | ||
| 52128-58010A0 |
ANH1#,MNH1#..AX,MX,MZ WHITE PM.,042 |
1 | ||
| 52128-58010D0 |
ANH1#,MNH1#..AX,MX,MZ BORDEAUX MC.,3P2 |
1 | ||
| 52128-58020B0 |
ANH1#,MNH1#..AS,MS SILVER ME.,1C0 |
1 | ||
| 52128-58010B0 |
ANH1#,MNH1#..AX,MX,MZ SILVER ME.,1C0 |
1 | ||
| 52128-58010D1 |
ANH1#,MNH1#..AX,MX,MZ SHELL ME.,2JD |
1 | ||
| 52128-58020A0 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 52128-58020J0 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 52128-58010G0 |
ANH1#,MNH1#..AX,MX,MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52128-58010F0 |
ANH1#,MNH1#..AX,MX,MZ GOLD ME.,593 |
1 | ||
| 52128-58020C0 |
ANH1#,MNH1#..AS,MS BLACK MC.,209 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-58010 |
ANH1#,MNH1# |
1 | ||
| 53903-58010 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-58010 |
ANH1#,MNH1# |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-58010 |
ANH1#,MNH1# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ANH1#,MNH1# |
3 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06006 |
ANH1#,MNH1# |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06006 |
ANH1#,MNH1# |
2 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
