MNH15W-PFPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )1MZFE

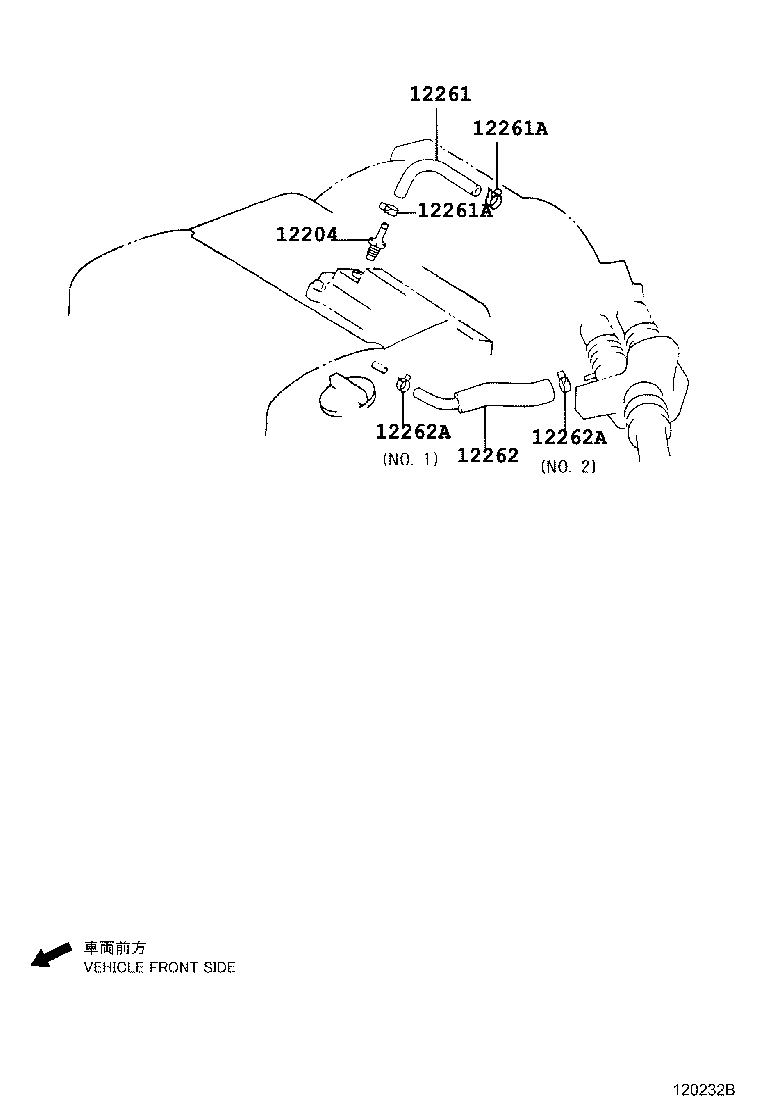

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-20040

1MZFE..MNH1#

 1
12204-20060

1MZFE..MNH1#..4FC

 1
12204-20040

1MZFE..MNH1#..4FC

 1
12261 - HOSE, VENTILATION
12261-20090

1MZFE..MNH1#

 1
12261-20011

1MZFE..MNH1#..4FC

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

1MZFE..MNH1#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

1MZFE..MNH1#

 2
12262 - HOSE, VENTILATION, NO.2
12262-20030

1MZFE..MNH1#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41900

1MZFE..MNH1#

NO.2

 1
96134-51700

1MZFE..MNH1#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41900

1MZFE..MNH1#

NO.2

 1
96134-51700

1MZFE..MNH1#

NO.1

 1
