MNH15W-PFPQK (2002)
Toyota Alphard G/V
Production
May 2002
-
Apr 2005
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

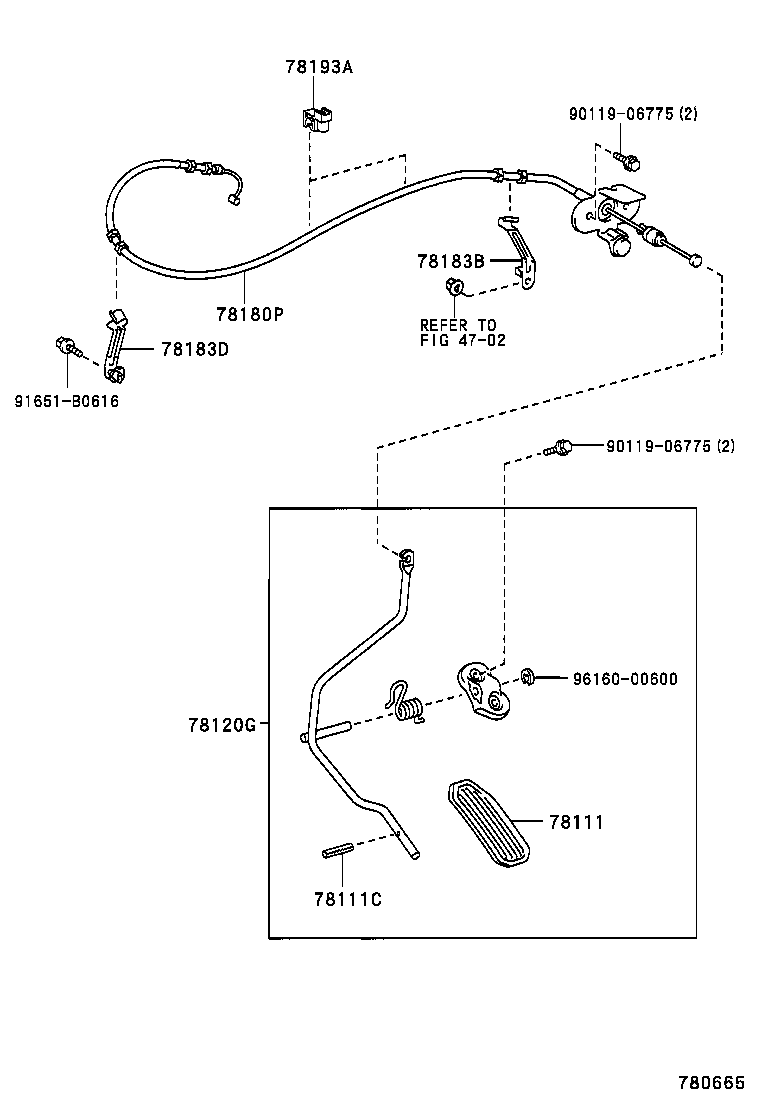

(0205-0504)MNH1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32020 |
ANH1#,MNH1# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04034 |
ANH1#,MNH1# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-58020 |
ANH1#,MNH1# |
1 | ||
| 78120-58030 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-58030 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 78180-58010 |
MNH1# |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-58010 |
ANH1#,MNH1# |
1 | ||
| 78183D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-58040 |
MNH1# |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-28010 |
MNH1# |
2 | ||
| 78193-28010 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 91651-B0616 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 4702 | ||||

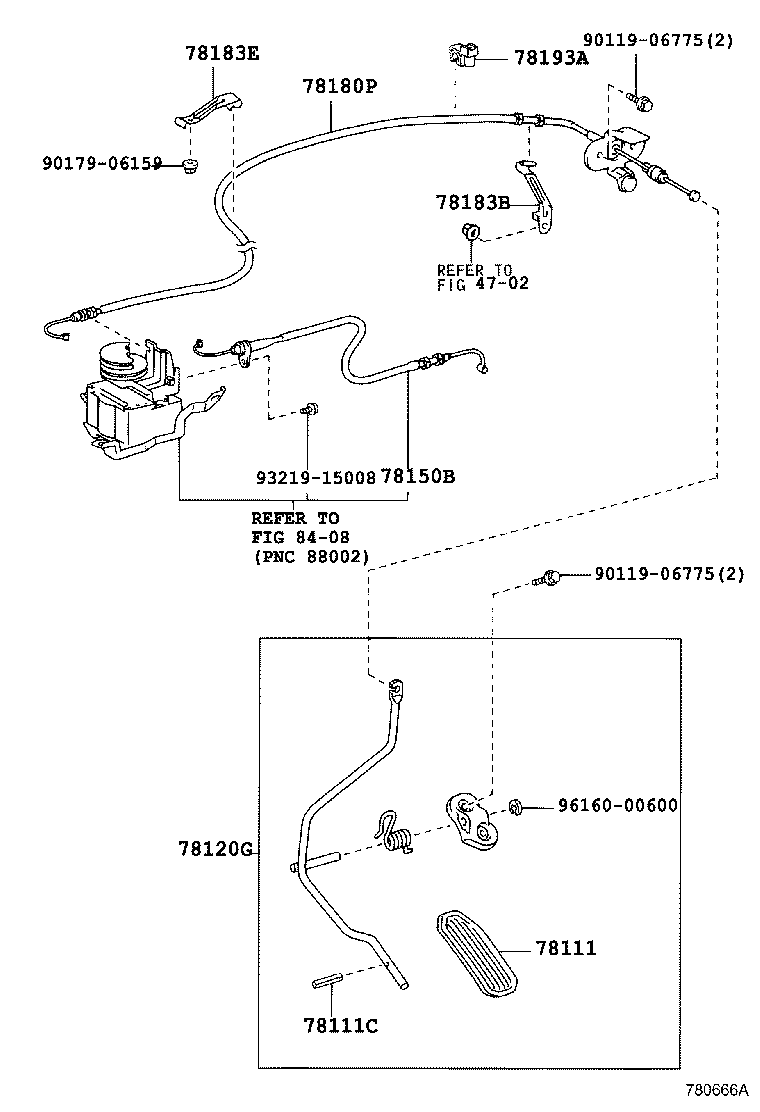

(0205-0504)MNH1#
Click highlighted areas on diagram
ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32020 |
ANH1#,MNH1# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04034 |
ANH1#,MNH1# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-58020 |
ANH1#,MNH1# |
1 | ||
| 78120-58030 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-58010 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-58030 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 78180-58010 |
MNH1# |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-58010 |
ANH1#,MNH1# |
1 | ||
| 78183E - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-58030 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-28010 |
MNH1# |
2 | ||
| 78193-28010 |
MNH1#..MZ ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90179-06159 | ||||
| 93219-15008 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8408 | ||||
