MNH15W-PFPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

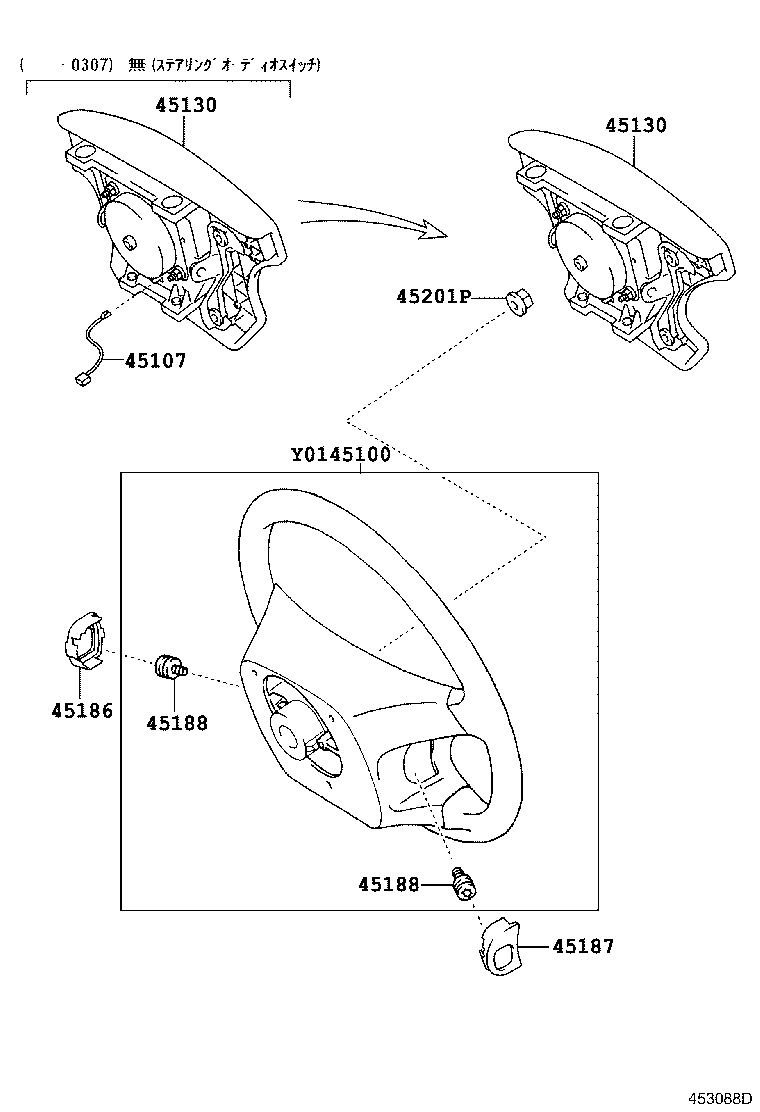

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45130 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-58020E0

MNH1#..MZ

4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ORCHID BROWN,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-58021E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-58021E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-58020E0

MNH1#..MZ

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り,ORCHID BROWN,TRIM0#

 1
45186-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-58010E0

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANH1#,MNH1#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANH1#,MNH1#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ANH1#,MNH1#

 1
