MNH15W-PFPGK (2002)
Toyota Alphard G/V

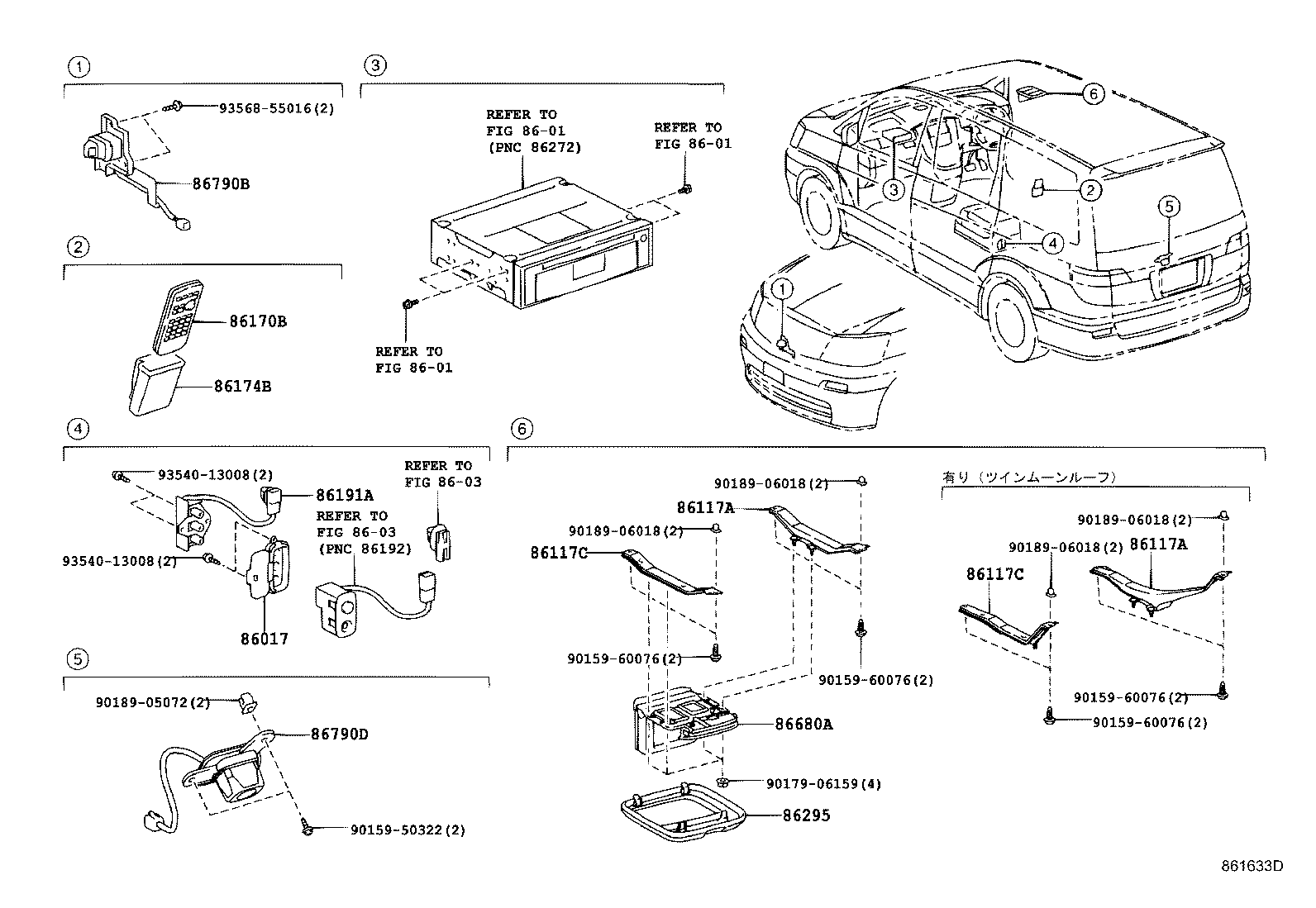

ILLUST NO. 1 OF 2(0205-0504)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86017 - PARTS SET, VIDEO | ||||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子有り,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),IVORY,TRIM0# |
1 | ||
| 86117A - BRACKET, TELEVISION DISPLAY, A | ||||
| 86117-58010 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58160 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58030 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58180 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117A - BRACKET, TELEVISION DISPLAY, A | ||||
| 86117-58180 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58010 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58160 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58030 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-58020 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58040 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58190 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58170 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-58020 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58040 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58190 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58170 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-58020 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り,9ｲﾝﾁ ﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86170-58010 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り,7ｲﾝﾁ ﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86174B - CASE, SWITCH & VOLUME | ||||
| 86174-58010 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86174-58010 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86191-58010 |
ANH1#,MNH1# VTR端子有り |
1 | ||
| 86191-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86191-58010 |
ANH1#,MNH1# VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り |
1 | ||
| 86191-58010 |
ANH1#,MNH1# VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-58010A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 86295-28020A0 |
ANH1#,MNH1#..AX,MX,MZ ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-58010A0 |
ANH1#,MNH1#..AX,MX,MZ FUJITSU TEN,ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0#,7ｲﾝﾁ ﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86680-58020A0 |
ANH1#,MNH1#..AX,MX,MZ MATSUSHITA,ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0#,9ｲﾝﾁ ﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-58060B0 |
ANH1#,MNH1# ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),SILVER ME.,1C0 |
1 | ||
| 86790-58020A0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,WHITE PM.,042 ,2JD,ALPHARDV |
1 | ||
| 86790-58020G0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,LT.GREEN M.M.,6T2,ALPHARDu |
1 | ||
| 86790-58020D0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,BORDEAUX MC,3P2,ALPHARD V |
1 | ||
| 86790-58020B1 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,SILVER ME.,1C0,ALPHARD V |
1 | ||
| 86790-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),WHITE PM.,042 ,2JD |
1 | ||
| 86790-58060A0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),WHITE PM.,042 ,2JD |
1 | ||
| 86790-58050 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),ALPHARD G |
1 | ||
| 86790-58050 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),ALPHARD G |
1 | ||
| 86790-58020C0 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,BLACK MC,209,ALPHARD V |
1 | ||
| 86790-58060C0 |
ANH1#,MNH1# ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),BLACK MC.,209 |
1 | ||
| 86790-58020B0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,GRAY,042 ,1C0 ,1E8 ,209 ,2JD ,3P2 ,593 ,6T2,ALPHARD G |
1 | ||
| 86790-58060B0 |
ANH1#,MNH1# ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),SILVER ME.,1C0 |
1 | ||
| 86790-58020B2 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,GRAY M.M,1E8,ALPHARD V |
1 | ||
| 86790-58020F0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,GOLD ME.,593,ALPHARD V |
1 | ||
| 86790-58060F0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),GOLD ME.,593 |
1 | ||
| 86790-58060J0 |
ANH1#,MNH1# ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),DK.BLUE MC.,8K8 |
1 | ||
| 86790-58060G0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),LT. GREEN M.M.,6T2 |
1 | ||
| 86790-58060C0 |
ANH1#,MNH1# ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),BLACK MC.,209 |
1 | ||
| 86790-58060G0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),LT. GREEN M.M.,6T2 |
1 | ||
| 86790-58060D0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),BORDEAUX MC.,3P2 |
1 | ||
| 86790-58060D0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),BORDEAUX MC.,3P2 |
1 | ||
| 86790-58060J0 |
ANH1#,MNH1# ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),DK.BLUE MC.,8K8 |
1 | ||
| 86790-58060F0 |
ANH1#,MNH1#..AX,MX,MZ ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),GOLD ME.,593 |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86790-58010 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 86790-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86790-58010 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-60076 | ||||
| 90179-06159 | ||||
| 90189-05072 | ||||
| 90189-06018 | ||||
| 93540-13008 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||

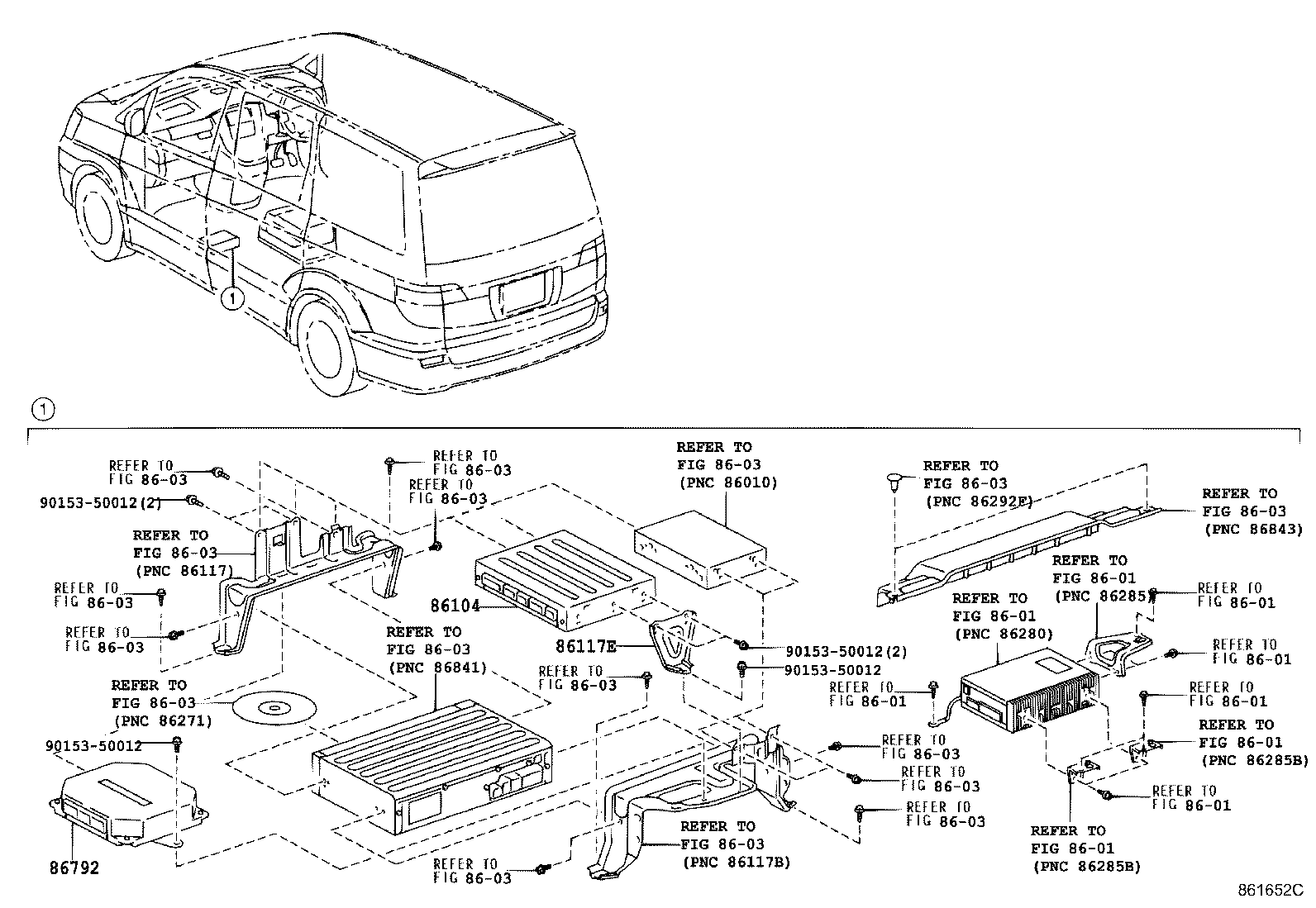

ILLUST NO. 2 OF 2(0205-0504)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 86104-58020 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86104-58010 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3 | ||||
| 86117-58050 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58050 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86792 - CONTROLLER, TELEVISION CAMERA | ||||
| 86792-58010 |
MNH1#..MZ VSC&TRC有り&ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 86792-58010 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 86792-58010 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 86792-58010 |
MNH1#..MZ VSC&TRC有り&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 86792-58050 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86792-58050 |
MNH1#..MZ VSC&TRC有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86792-58050 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86792-58050 |
MNH1#..MZ VSC&TRC有り&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| Common parts | ||||
| 90153-50012 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||
