MNH15W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

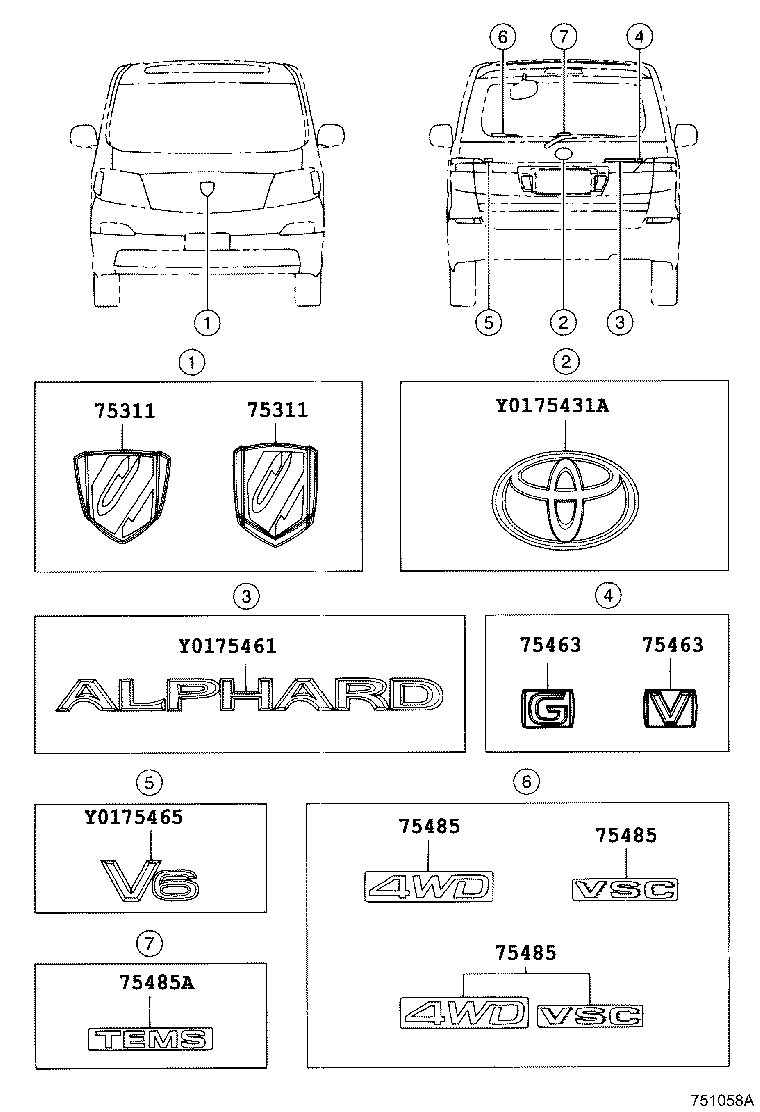

Click highlighted areas on diagram

diagram 75311 75311 75431A 75461 75463 75463 75465 75485 75485 75485 75485A
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 1
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)

 1
75301-58010

ANH1#,MNH1#

 1
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り

 1
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)

 1
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)

 1
75301-58010

ANH1#,MNH1#

 1
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV&ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り

 1
75301-58020

ANH1#,MNH1#

ｱﾙﾌｧｰﾄﾞV

 1
75431A - EMBLEM, BACK DOOR, NO.1
90975-02015

ANH1#,MNH1#

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-58010

ANH1#,MNH1#

ALPHARD

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-58020

ANH1#,MNH1#

V,ｱﾙﾌｧｰﾄﾞV

 1
75442-58010

ANH1#,MNH1#

G

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-58020

ANH1#,MNH1#

V,ｱﾙﾌｧｰﾄﾞV

 1
75442-58010

ANH1#,MNH1#

G

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75444-58010

MNH1#

V6

 1
75485 - PLATE, BACK WINDOW NAME
75485-58010

ANH15,MNH15

4WD

 1
75485-58040

MNH15..MZ

4WD VSC,TEMS−有り&VSC&TRC有り

 1
75485 - PLATE, BACK WINDOW NAME
75485-58010

ANH15,MNH15

4WD

 1
75485-58040

MNH15..MZ

4WD VSC,TEMS−有り&VSC&TRC有り

 1
75485 - PLATE, BACK WINDOW NAME
75485-58010

ANH15,MNH15

4WD

 1
75485-58040

MNH15..MZ

4WD VSC,TEMS−有り&VSC&TRC有り

 1
75485A - PLATE, BACK WINDOW NAME
75485-58020

MNH1#..MZ

TEMS−有り&VSC&TRC有り

 1
