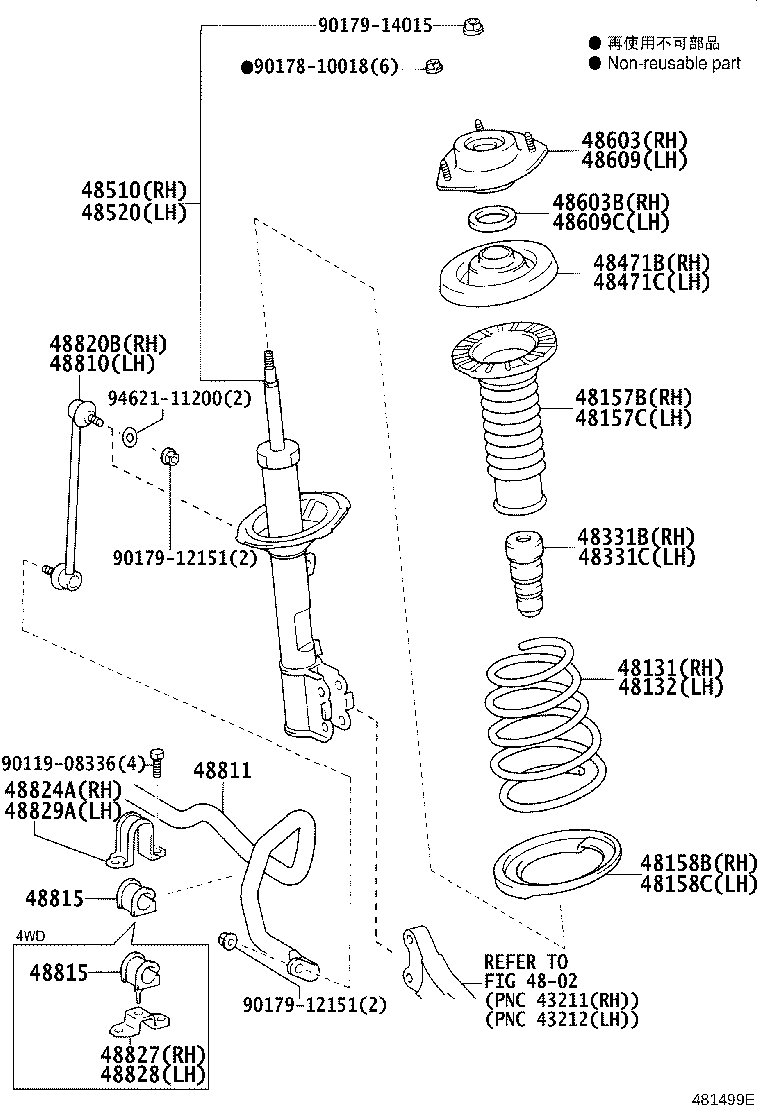

MNH15W-PFPGK (2002)
Toyota Alphard G/V
(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-58060 |
MNH15..MX,MZ |
1 | ||
| 48131-58121 |
MNH15..MX,MZ |
1 | ||
| 48131-58120 |
MNH15..MX,MZ |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-58120 |
MNH15..MX,MZ |
1 | ||
| 48131-58060 |
MNH15..MX,MZ |
1 | ||
| 48131-58121 |
MNH15..MX,MZ |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-28020 |
ANH1#,MNH1# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-28020 |
ANH1#,MNH1# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-33020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-33030 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48158-48020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-33020 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-33020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-48020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-33030 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48158-33020 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-28040 |
ANH1#,MNH1# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-28040 |
ANH1#,MNH1# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-41010 |
ANH1#,MNH1# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-41010 |
ANH1#,MNH1# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80250 |
MNH1#..MX,MZ ﾏｰｸ 58020 OR 58021 |
1 | ||
| 48510-80261 |
MNH1#..MX,MZ ﾏｰｸ 48510−58090 |
1 | ||
| 48510-59605 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-59085 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48520-59325 |
MNH1#..MX,MZ ﾏｰｸ 48520−58090 |
1 | ||
| 48520-59225 |
MNH1#..MX,MZ ﾏｰｸ 58020 OR 58021 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-58010 |
ANH1#,MNH1# |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ANH1#,MNH1# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-58010 |
ANH1#,MNH1# |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ANH1#,MNH1# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-28050 |
ANH15,MNH15 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-58010 |
ANH15,MNH15 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-58010 |
ANH15,MNH15 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-58010 |
ANH15,MNH15 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-28050 |
ANH15,MNH15 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-28180 |
ANH15,MNH15 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-28040 |
ANH15,MNH15 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-28040 |
ANH15,MNH15 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-28180 |
ANH15,MNH15 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90178-10018 | ||||
| 90179-12151 | ||||
| 90179-14015 | ||||
| 94621-11200 | ||||
| Linked diagrams | ||||
| 4802 | ||||

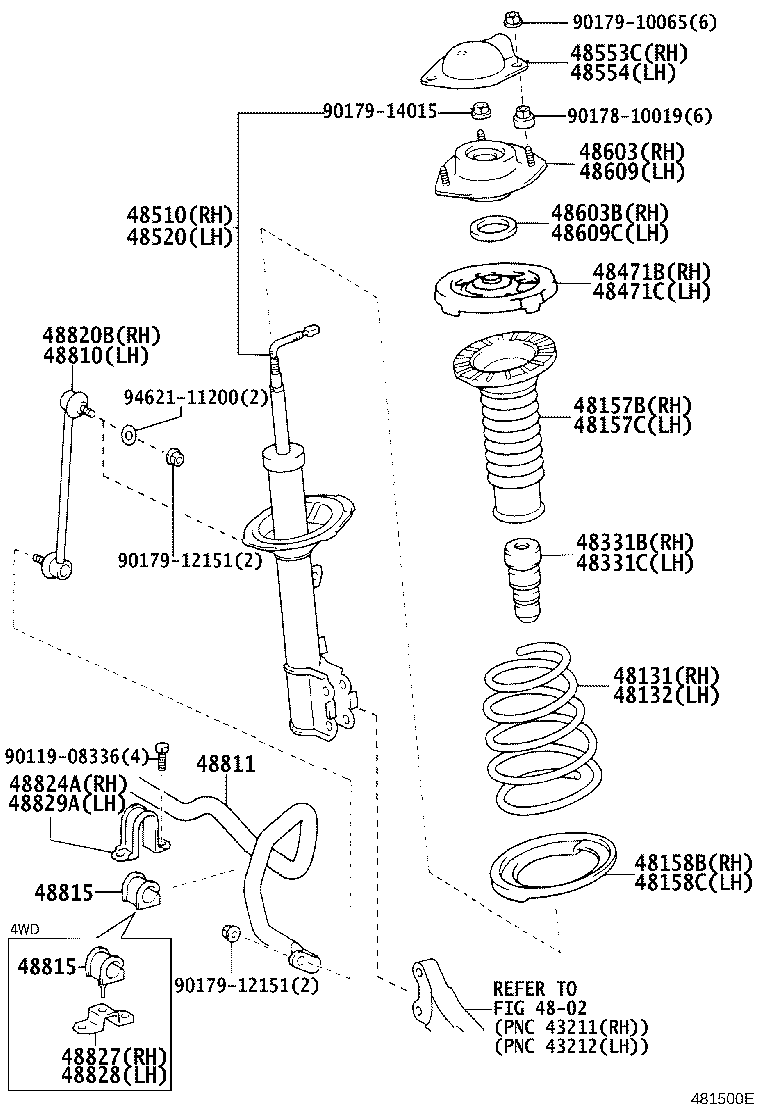

(0205- )
ｱﾘ(TEMS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-58060 |
MNH15..MX,MZ |
1 | ||
| 48131-58121 |
MNH15..MX,MZ |
1 | ||
| 48131-58120 |
MNH15..MX,MZ |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-58120 |
MNH15..MX,MZ |
1 | ||
| 48131-58060 |
MNH15..MX,MZ |
1 | ||
| 48131-58121 |
MNH15..MX,MZ |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-28020 |
ANH1#,MNH1# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-28020 |
ANH1#,MNH1# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-33020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-33030 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48158-48020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-33020 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-33020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-48020 |
ANH1#,MNH1#..AX,MX,MZ |
1 | ||
| 48158-33030 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48158-33020 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-28040 |
ANH1#,MNH1# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-28040 |
ANH1#,MNH1# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-41010 |
ANH1#,MNH1# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-41010 |
ANH1#,MNH1# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80250 |
MNH1#..MX,MZ ﾏｰｸ 58020 OR 58021 |
1 | ||
| 48510-80261 |
MNH1#..MX,MZ ﾏｰｸ 48510−58090 |
1 | ||
| 48510-59605 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-59085 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48520-59325 |
MNH1#..MX,MZ ﾏｰｸ 48520−58090 |
1 | ||
| 48520-59225 |
MNH1#..MX,MZ ﾏｰｸ 58020 OR 58021 |
1 | ||
| 48553C - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48553-44020 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48554 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48554-44010 |
MNH1#..MZ VSC&TRC有り |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-58010 |
ANH1#,MNH1# |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ANH1#,MNH1# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-58010 |
ANH1#,MNH1# |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ANH1#,MNH1# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-28050 |
ANH15,MNH15 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-58010 |
ANH15,MNH15 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-58010 |
ANH15,MNH15 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-58010 |
ANH15,MNH15 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-28050 |
ANH15,MNH15 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-28180 |
ANH15,MNH15 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-28040 |
ANH15,MNH15 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-28040 |
ANH15,MNH15 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-28180 |
ANH15,MNH15 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90178-10019 | ||||
| 90179-10065 | ||||
| 90179-12151 | ||||
| 90179-14015 | ||||
| 94621-11200 | ||||
| Linked diagrams | ||||
| 4802 | ||||
