MNH10W-PRPSK (2002)
Toyota Alphard G/V

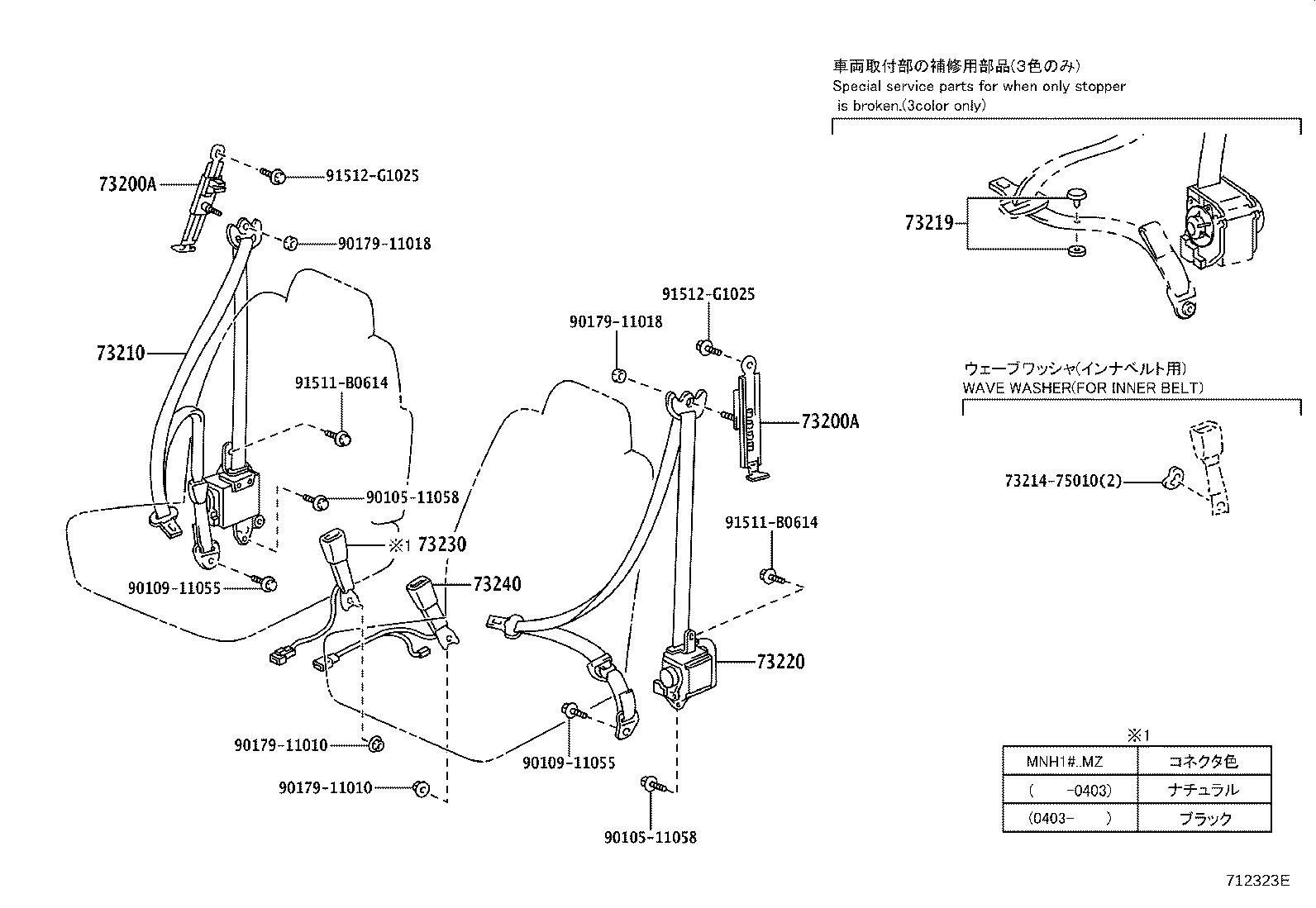

ILLUST NO. 1 OF 3(0205- )
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-30080 |
ANH1#,MNH1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-30080 |
ANH1#,MNH1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73210-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ANH1#,MNH1# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ANH1#,MNH1# ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ANH1#,MNH1# ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73220-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 73230-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 73230-58040A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73240-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11058 | ||||
| 90109-11055 | ||||
| 90179-11010 | ||||
| 90179-11018 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||

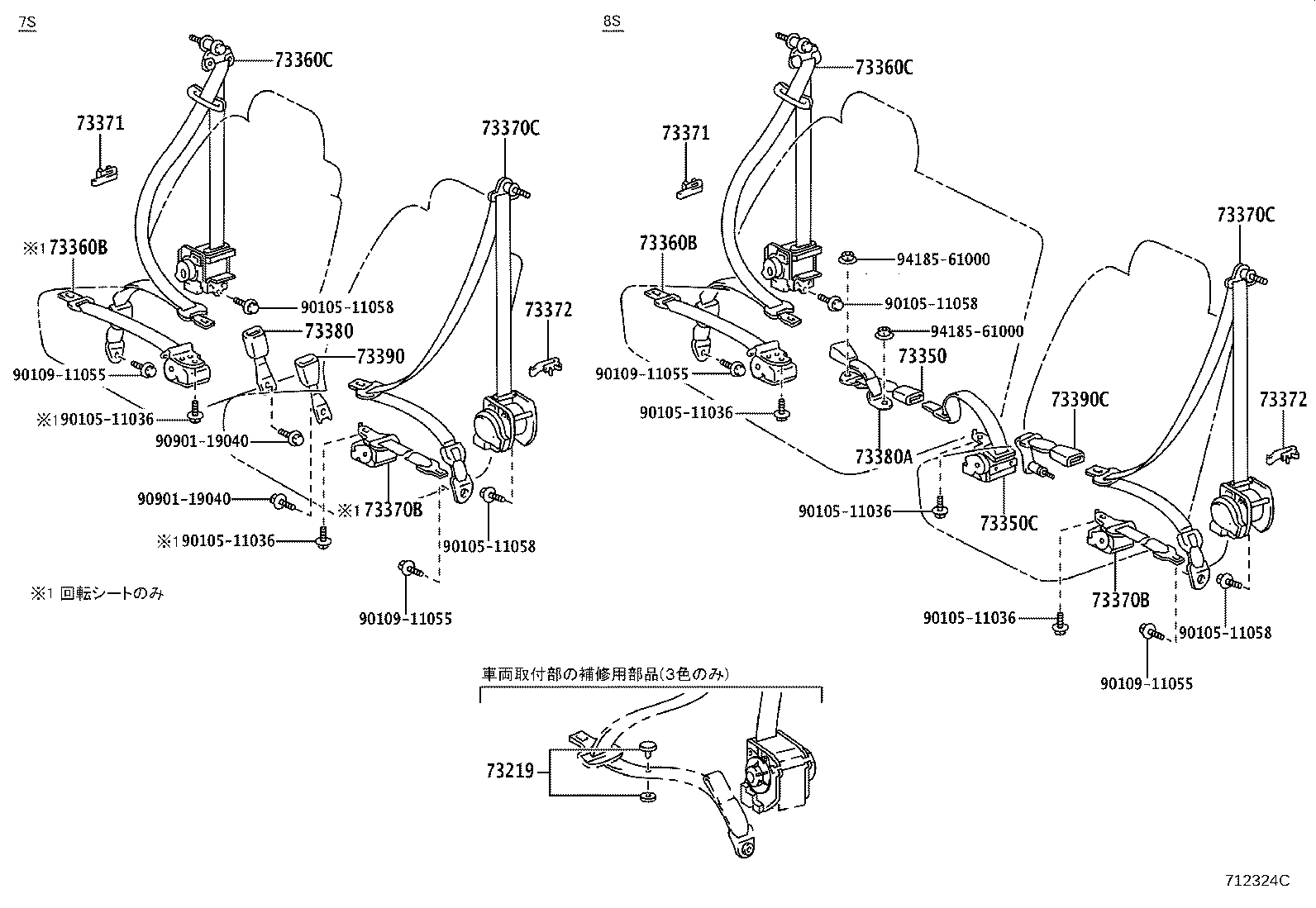

ILLUST NO. 2 OF 3(0205- )
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ANH1#,MNH1# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ANH1#,MNH1# ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ANH1#,MNH1# ﾌﾞﾗｯｸ |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-58010C0 |
ANH1#,MNH1#..08S..(AS,MS) BLACK,TRIM1# |
1 | ||
| 73350-58010A0 |
ANH1#,MNH1#..08S..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-26070A0 |
ANH1#,MNH1#..08S..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 73350-26070C0 |
ANH1#,MNH1#..08S..(AS,MS) BLACK,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-26280A0 |
ANH1#..AX;MNH1#..07S..MX;MNH1#..08S..(MX,MZ) IVORY,TRIM0# |
1 | ||
| 73360-26280C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-26280A0 |
ANH1#..AX;MNH1#..07S..MX;MNH1#..08S..(MX,MZ) IVORY,TRIM0# |
1 | ||
| 73360-26280C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73360-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73360-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73370-26170A0 |
ANH1#,MNH1#..08S..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 73370-26170C0 |
ANH1#,MNH1#..08S..(AS,MS) BLACK,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73370-26170A0 |
ANH1#,MNH1#..08S..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 73370-26170C0 |
ANH1#,MNH1#..08S..(AS,MS) BLACK,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73370-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73370-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-44020E1 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM07 |
1 | ||
| 73371-44020B6 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM17 |
1 | ||
| 73371-44020B5 |
ANH1#,MNH1#..AS,MS STONE,TRIM17 |
1 | ||
| 73371-44020A1 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM07 |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-44020E1 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM07 |
1 | ||
| 73371-44020B6 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM17 |
1 | ||
| 73371-44020B5 |
ANH1#,MNH1#..AS,MS STONE,TRIM17 |
1 | ||
| 73371-44020A1 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM07 |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-44020A1 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM07 |
1 | ||
| 73371-44020E1 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM07 |
1 | ||
| 73371-44020B5 |
ANH1#,MNH1#..AS,MS STONE,TRIM17 |
1 | ||
| 73371-44020B6 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM17 |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-44020A1 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM07 |
1 | ||
| 73371-44020E1 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM07 |
1 | ||
| 73371-44020B5 |
ANH1#,MNH1#..AS,MS STONE,TRIM17 |
1 | ||
| 73371-44020B6 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM17 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-58010A0 |
ANH1#,MNH1#..08S..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 73380-58010C0 |
ANH1#,MNH1#..08S..(AS,MS) BLACK,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-58010A0 |
ANH1#,MNH1#..08S..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 73390-58010C0 |
ANH1#,MNH1#..08S..(AS,MS) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11058 | ||||
| 90109-11055 | ||||
| 90901-19040 | ||||
| 94185-61000 | ||||

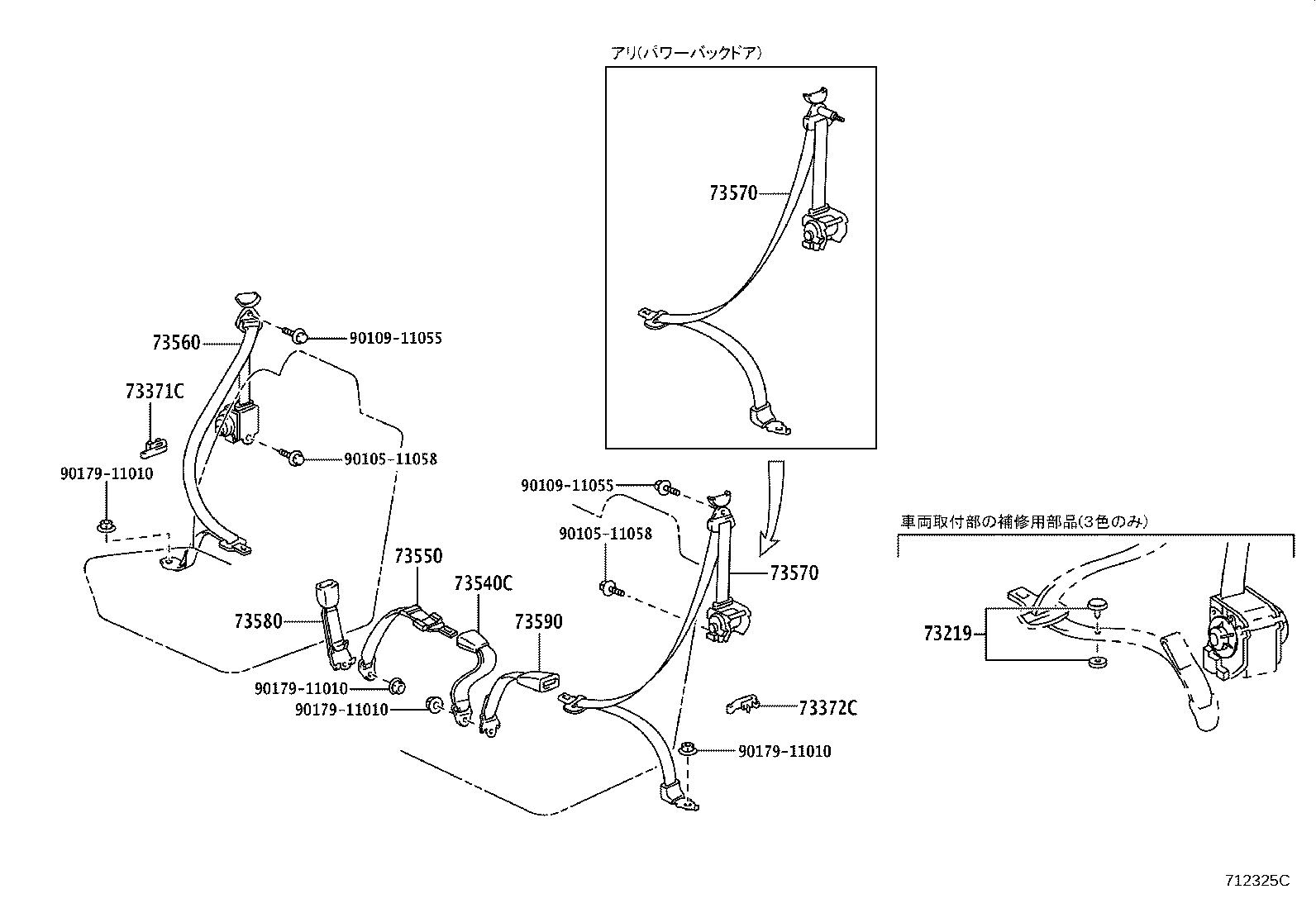

ILLUST NO. 3 OF 3(0205- )
ﾘﾔ NO.2 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ANH1#,MNH1# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ANH1#,MNH1# ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ANH1#,MNH1# ﾌﾞﾗｯｸ |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-44020B6 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM17 |
1 | ||
| 73371-44020B5 |
ANH1#,MNH1#..AS,MS STONE,TRIM17 |
1 | ||
| 73371-44020E1 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM07 |
1 | ||
| 73371-44020B6 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),DK.GRAY,TRIM1# |
1 | ||
| 73371-44020A1 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM07 |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-44020B6 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),DK.GRAY,TRIM1# |
1 | ||
| 73371-44020A1 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM07 |
1 | ||
| 73371-44020B6 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM17 |
1 | ||
| 73371-44020E1 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM07 |
1 | ||
| 73371-44020B5 |
ANH1#,MNH1#..AS,MS STONE,TRIM17 |
1 | ||
| 73540C - BELT ASSY, REAR NO.2 SEAT LAP TYPE | ||||
| 73540-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73540-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER | ||||
| 73550-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73550-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73560-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73570-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73570-58020A0 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,IVORY,TRIM0# |
1 | ||
| 73570-58020A0 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)& ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,IVORY,TRIM0# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73570-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73570-58020A0 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,IVORY,TRIM0# |
1 | ||
| 73570-58020A0 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)& ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,IVORY,TRIM0# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 73580-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73580-58010C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11055 | ||||
| 90179-11010 | ||||
