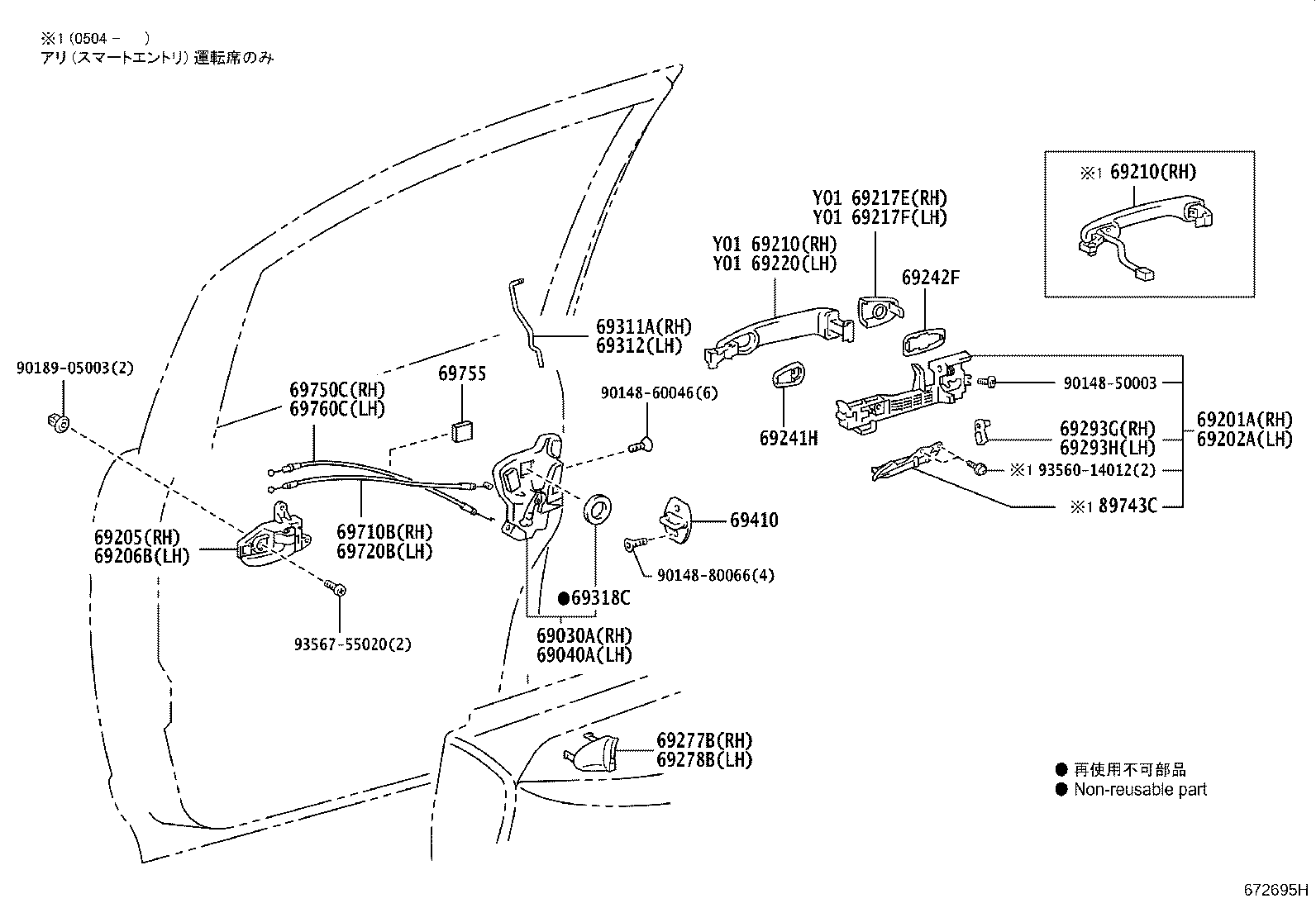

MNH10W-PRPSK (2002)
Toyota Alphard G/V
(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-33241 |
ANH1#,MNH1# |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-58010 |
ANH1#,MNH1# |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-28010 |
ANH1#,MNH1# |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-28010 |
ANH1#,MNH1# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-20180E0 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM0# |
1 | ||
| 69205-20180B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-20180B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 69206-20180E0 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM0# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-28070B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69210-58010 |
MNH1#..MZ ﾒｯｷ |
1 | ||
| 69211-28070A1 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 69211-28070C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69211-28070B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69211-28070P0 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),GRAY ME.,1D2 |
1 | ||
| 69211-28070R2 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 69211-28070P0 |
ANH1#,MNH1#..08S..4FC..(AS,MS) ﾌﾟﾚﾐｱﾑ *(A),*(P),GRAY ME.,1D2 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-28070B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69210-58010 |
MNH1#..MZ ﾒｯｷ |
1 | ||
| 69211-28070A1 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 69211-28070C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69211-28070B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69211-28070P0 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),GRAY ME.,1D2 |
1 | ||
| 69211-28070R2 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 69211-28070P0 |
ANH1#,MNH1#..08S..4FC..(AS,MS) ﾌﾟﾚﾐｱﾑ *(A),*(P),GRAY ME.,1D2 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-28010C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69217-28010B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69217-28010P0 |
ANH1#,MNH1#..08S..4FC..(AS,MS) ﾌﾟﾚﾐｱﾑ *(A),*(P),GRAY ME.,1D2 |
1 | ||
| 69217-28010B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69217-28010A1 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 69217-28010P0 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),GRAY ME.,1D2 |
1 | ||
| 69217-28010R2 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 69217-58010 |
MNH1#..MZ *CR |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-58010 |
MNH1#..MZ *CR |
1 | ||
| 69217-28010P0 |
ANH1#,MNH1#..08S..4FC..(AS,MS) ﾌﾟﾚﾐｱﾑ *(A),*(P),GRAY ME.,1D2 |
1 | ||
| 69217-28010B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69217-28010P0 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),GRAY ME.,1D2 |
1 | ||
| 69217-28010R2 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 69217-28010B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69217-28010A1 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 69217-28010C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-58010 |
MNH1#..MZ ﾒｯｷ |
1 | ||
| 69211-28070B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69211-28070A1 |
ANH1#,MNH1#..AS,MS WHITE PM.,042 |
1 | ||
| 69211-28070C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69211-28070R2 |
ANH1#,MNH1#..AS,MS DK.BLUE MC.,8K8 |
1 | ||
| 69211-28070P0 |
ANH1#,MNH1#..08S..4FC..(AS,MS) ﾌﾟﾚﾐｱﾑ *(A),*(P),GRAY ME.,1D2 |
1 | ||
| 69211-28070B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69211-28070P0 |
ANH1#,MNH1#..08S..(AS,MS) ﾌﾟﾚﾐｱﾑALCANTARA VERSION *(B),*(T),GRAY ME.,1D2 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
ANH1#,MNH1# |
2 | ||
| 69242F - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-28020 |
ANH1#,MNH1# |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69297-24020C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 69297-24020C0 |
ANH1#,MNH1#..AX,MX,MZ BLACK,TRIM0# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69298-24020C0 |
ANH1#,MNH1#..AS,MS BLACK,TRIM1# |
1 | ||
| 69298-24020C0 |
ANH1#,MNH1#..AX,MX,MZ BLACK,TRIM0# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ANH1#,MNH1# |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ANH1#,MNH1# |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-58010 |
ANH1#,MNH1# |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-58010 |
ANH1#,MNH1# |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ANH1#,MNH1# |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ANH1#,MNH1# |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-58010 |
ANH1#,MNH1# |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-58010 |
ANH1#,MNH1# |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-58010 |
ANH1#,MNH1# |
1 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-58010 |
ANH1#,MNH1# |
2 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-58010 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60046 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||
| 93560-14012 | ||||
| 93567-55020 | ||||
