MNH10W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

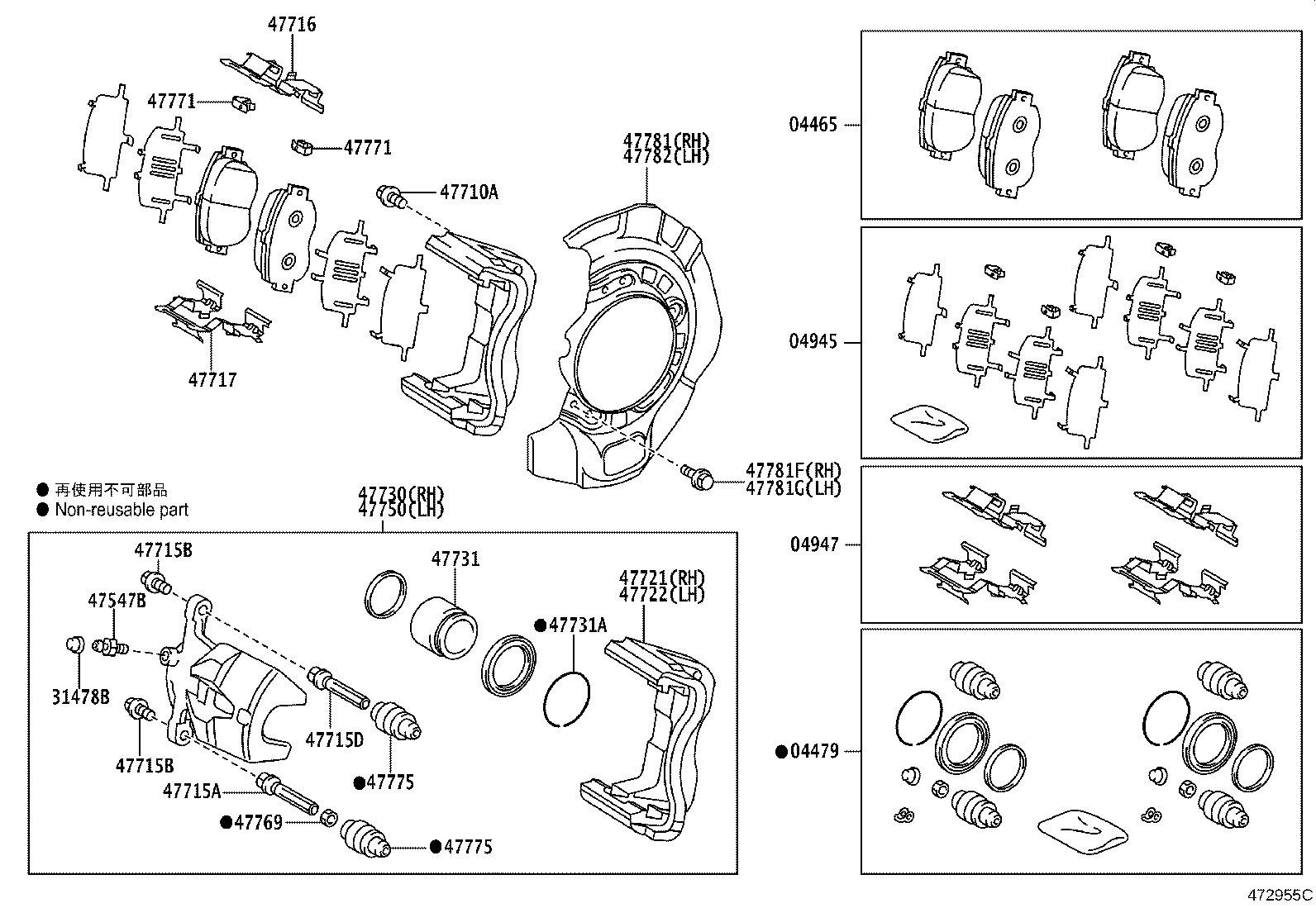

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715B 47715B 47715D 47716 47717 47721 47722 47730 47731 47731A 47750 47769 47771 47771 47775 47775 47781 47781F 47781G 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-65020

ANH1#,MNH1#

ﾏｰｸ SUMITOMO PS534

 1
04465-65021

ANH1#,MNH1#

ﾏｰｸ SUMITOMO PS558H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-33150

ANH1#,MNH1#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-58010

ANH1#,MNH1#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-33180

ANH1#,MNH1#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ANH1#,MNH1#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ANH1#,MNH1#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ANH1#,MNH1#

*12−1.25PX29.5−23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

ANH1#,MNH1#

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

ANH1#,MNH1#

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

ANH1#,MNH1#

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-33050

ANH1#,MNH1#

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-33130

ANH1#,MNH1#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-33100

ANH1#,MNH1#

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-33160

ANH1#,MNH1#

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-33160

ANH1#,MNH1#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-58010

ANH1#,MNH1#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-33090

ANH1#,MNH1#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76002

ANH1#,MNH1#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-58010

ANH1#,MNH1#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

ANH1#,MNH1#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33020

ANH1#,MNH1#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33020

ANH1#,MNH1#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

ANH1#,MNH1#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

ANH1#,MNH1#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-48020

ANH1#,MNH1#

 1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90119-06227

ANH1#,MNH1#

 4
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90119-06227

ANH1#,MNH1#

 4
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-48020

ANH1#,MNH1#

 1
