MNH10W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )1MZFE

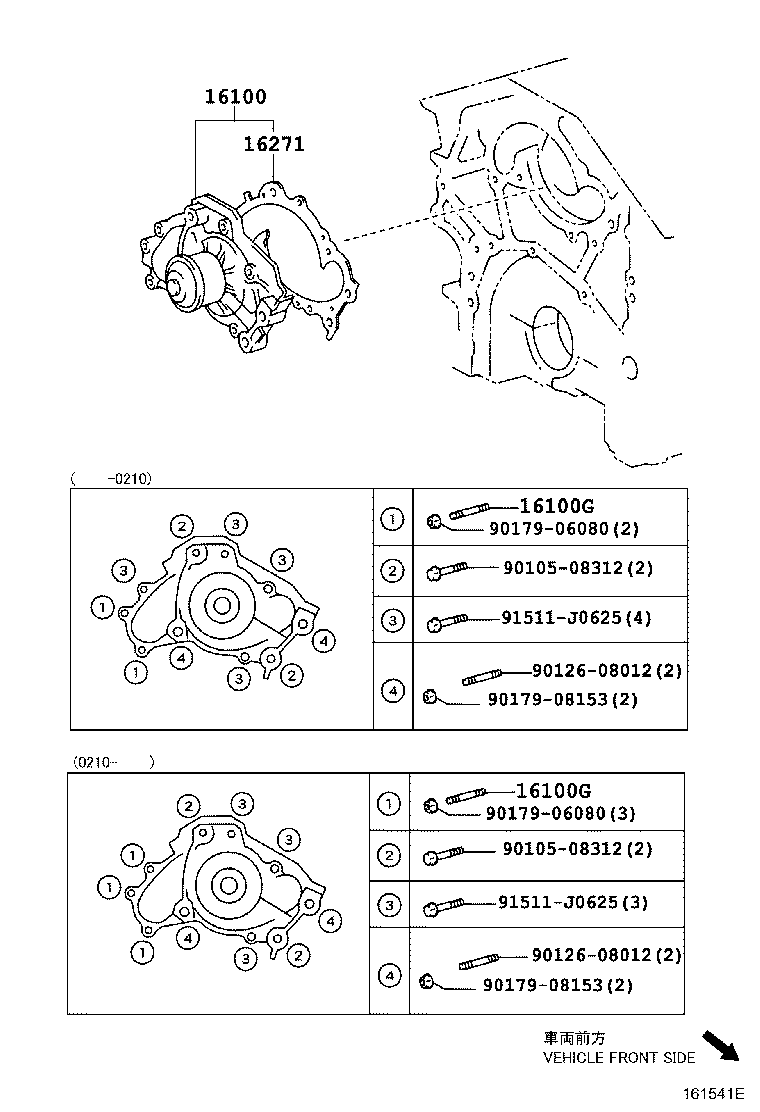

Click highlighted areas on diagram

diagram 16100 16100G 16100G 16271 9010508312 9010508312 9012608012 9012608012 9017906080 9017906080 9017908153 9017908153 91511J0625 91511J0625
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29085

1MZFE..MNH1#

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-06144

1MZFE..MNH1#

 3
90116-06144

1MZFE..MNH1#..4FC

 2
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-06144

1MZFE..MNH1#

 3
90116-06144

1MZFE..MNH1#..4FC

 2
16271 - GASKET, WATER PUMP
16271-20020

1MZFE..MNH1#

 1
Common parts
90105-08312
90126-08012
90179-06080
90179-08153
91511-J0625
