MNH10W-PRPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

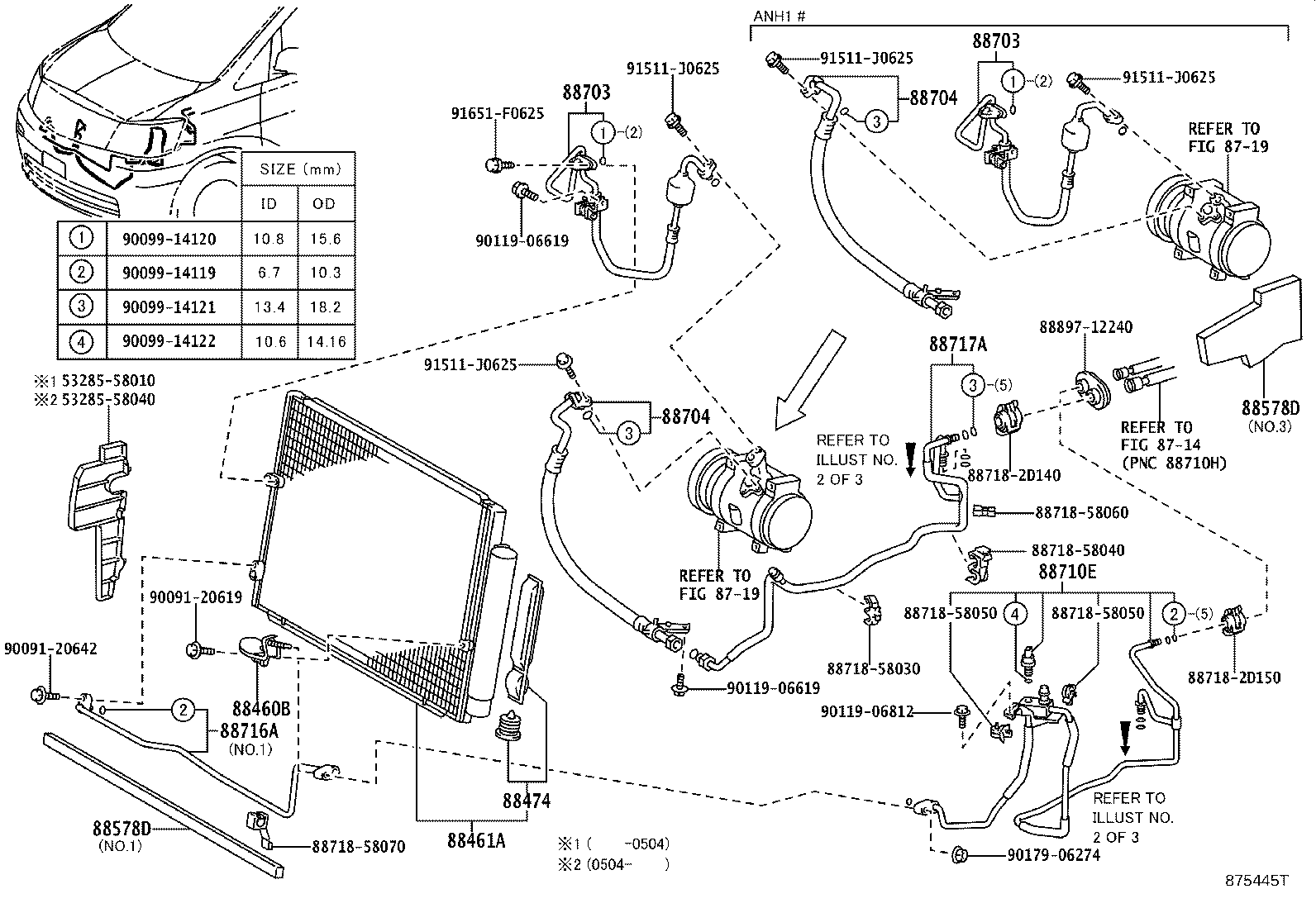

ILLUST NO. 1 OF 2(0205- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 5328558010 5328558040 8714 8719 8719 88460B 88461A 88474 88578D 88578D 88703 88703 88704 88704 88710E 88716A 88717A 887182D140 887182D150 8871858030 8871858040 8871858050 8871858050 8871858060 8871858070 8889712240 9009120619 9009120642 9009914119 9009914120 9009914121 9009914122 9011906619 9011906619 9011906812 9017906274 91511J0625 91511J0625 91511J0625 91511J0625 91651F0625
Part # Description Qty Price
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-58010

ANH1#,MNH1#

 1
88461A - CORE, COOLER CONDENSER
88461-58011

ANH1#,MNH1#

 1
88461-58010

ANH1#,MNH1#

 1
88474 - DRYER, COOLER
88474-47010

ANH1#,MNH1#

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-58010

ANH1#,MNH1#

NO.2

 1
88578-58050

ANH1#,MNH1#

NO.3

 1
88578-58030

ANH1#,MNH1#

NO.1

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-58010

ANH1#,MNH1#

NO.2

 1
88578-58050

ANH1#,MNH1#

NO.3

 1
88578-58030

ANH1#,MNH1#

NO.1

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-58010

MNH1#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-58010

MNH1#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-58010

MNH1#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-58010

MNH1#

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-58030

ANH1#,MNH1#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-58010

ANH1#,MNH1#

NO.2

 1
88716-58050

ANH1#,MNH1#

NO.1

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-58030

ANH1#,MNH1#

 1
Common parts
53285-58010
53285-58040
88718-2D140
88718-2D150
88718-58030
88718-58040
88718-58050
88718-58060
88718-58070
88897-12240
90091-20619
90091-20642
90099-14119
90099-14120
90099-14121
90099-14122
90119-06619
90119-06812
90179-06274
91511-J0625
91651-F0625
Linked diagrams
8714
8719

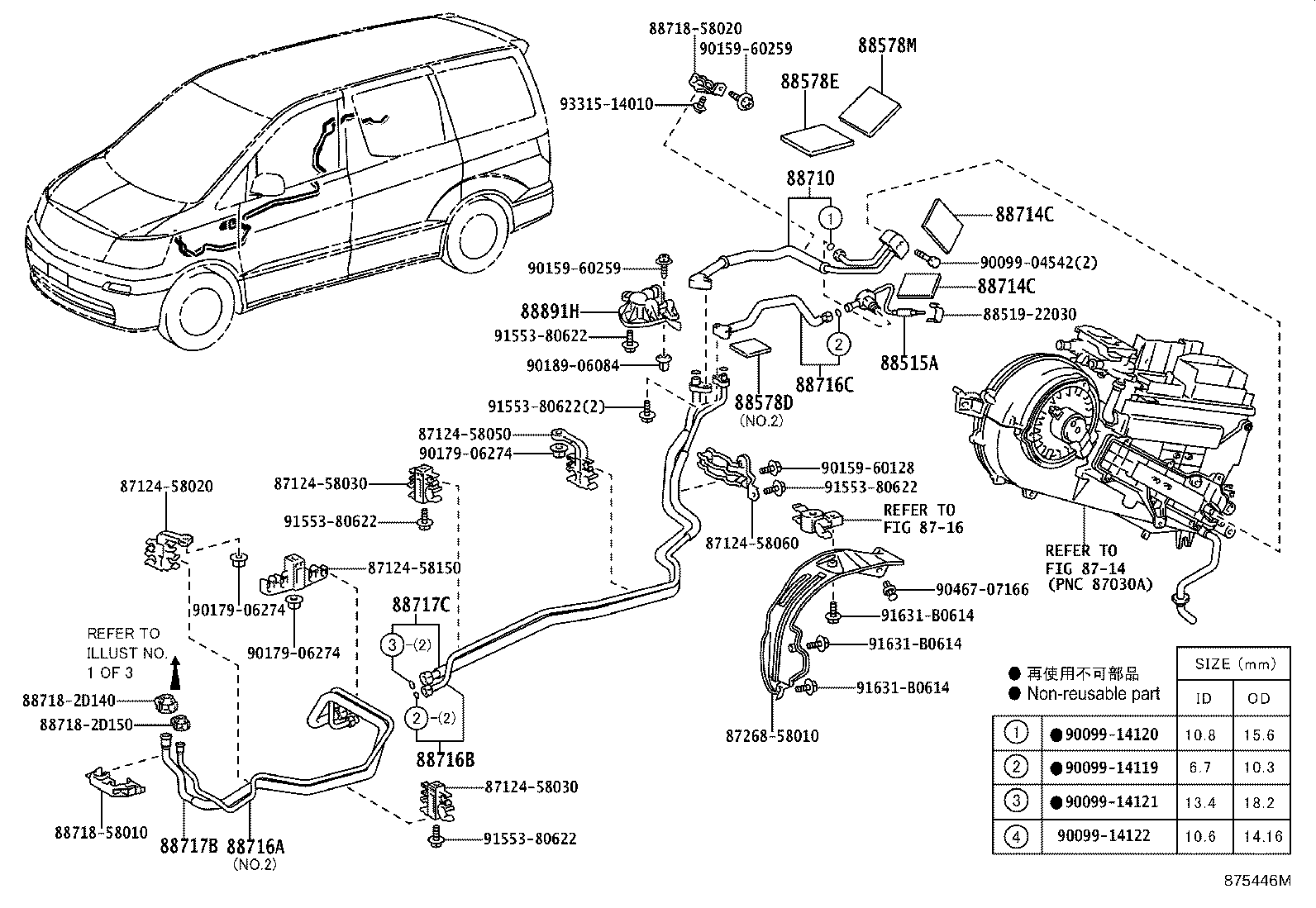

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

ﾘﾔ

diagram 8712458020 8712458030 8712458030 8712458050 8712458060 8712458150 8714 8716 8726858010 88515A 8851922030 88578D 88578E 88578M 88710 88714C 88714C 88716A 88716B 88716C 88717B 88717C 887182D140 887182D150 8871858010 8871858020 88891H 9009904542 9009914119 9009914120 9009914121 9009914122 9015960128 9015960259 9015960259 9017906274 9017906274 9017906274 9018906084 9046707166 9155380622 9155380622 9155380622 9155380622 9155380622 91631B0614 91631B0614 91631B0614 9331514010
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-58020

ANH1#,MNH1#

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-58010

ANH1#,MNH1#

NO.2

 1
88578-58050

ANH1#,MNH1#

NO.3

 1
88578-58030

ANH1#,MNH1#

NO.1

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-58020

ANH1#,MNH1#

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-58040

ANH1#,MNH1#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-58020

ANH1#,MNH1#

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-95J00

ANH1#,MNH1#

 2
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-95J00

ANH1#,MNH1#

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-58010

ANH1#,MNH1#

NO.2

 1
88716-58050

ANH1#,MNH1#

NO.1

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-58020

ANH1#,MNH1#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-58030

ANH1#,MNH1#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-58010

ANH1#,MNH1#

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-58020

ANH1#,MNH1#

 1
88891H - COVER, COOLER, NO.1
88891-58010

ANH1#,MNH1#

 1
Common parts
87124-58020
87124-58030
87124-58050
87124-58060
87124-58150
87268-58010
88519-22030
88718-2D140
88718-2D150
88718-58010
88718-58020
90099-04542
90099-14119
90099-14120
90099-14121
90099-14122
90159-60128
90159-60259
90179-06274
90189-06084
90467-07166
91553-80622
91631-B0614
93315-14010
Linked diagrams
8714
8716
