MNH10W-PRPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

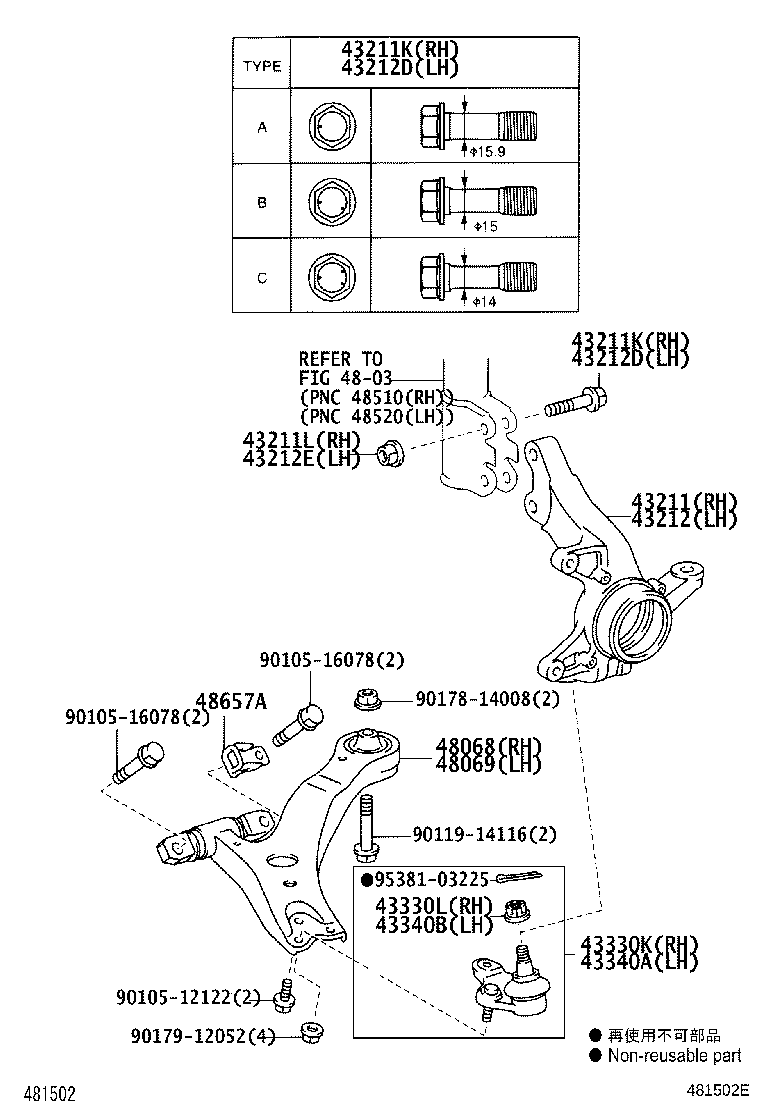

Click highlighted areas on diagram

diagram 43211 43211K 43211K 43211L 43212 43212D 43212D 43212E 43330K 43330L 43340A 43340B 4803 48068 48069 48657A 9010512122 9010516078 9010516078 9011914116 9017814008 9017912052 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-58010

ANH10,MNH10

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17010

ANH1#,MNH1#

外径=15

 1
90105-17009

ANH1#,MNH1#

外径=15.9

 2
90105-17011

ANH1#,MNH1#

外径=14

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17010

ANH1#,MNH1#

外径=15

 1
90105-17009

ANH1#,MNH1#

外径=15.9

 2
90105-17011

ANH1#,MNH1#

外径=14

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001

ANH1#,MNH1#

 2
43212 - KNUCKLE, STEERING, LH
43212-58010

ANH10,MNH10

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009

ANH1#,MNH1#

外径=15.9

 2
90105-17010

ANH1#,MNH1#

外径=15

 1
90105-17011

ANH1#,MNH1#

外径=14

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009

ANH1#,MNH1#

外径=15.9

 2
90105-17010

ANH1#,MNH1#

外径=15

 1
90105-17011

ANH1#,MNH1#

外径=14

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17001

ANH1#,MNH1#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29405

ANH1#,MNH1#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ANH1#,MNH1#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-29175

ANH1#,MNH1#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ANH1#,MNH1#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-58010

ANH1#,MNH1#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-58010

ANH1#,MNH1#

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

ANH1#,MNH1#

 2
Common parts
90105-12122
90105-16078
90119-14116
90178-14008
90179-12052
95381-03225
Linked diagrams
4803
