MNH10W-PRPGK (2002)
Toyota Alphard G/V
(0205- )

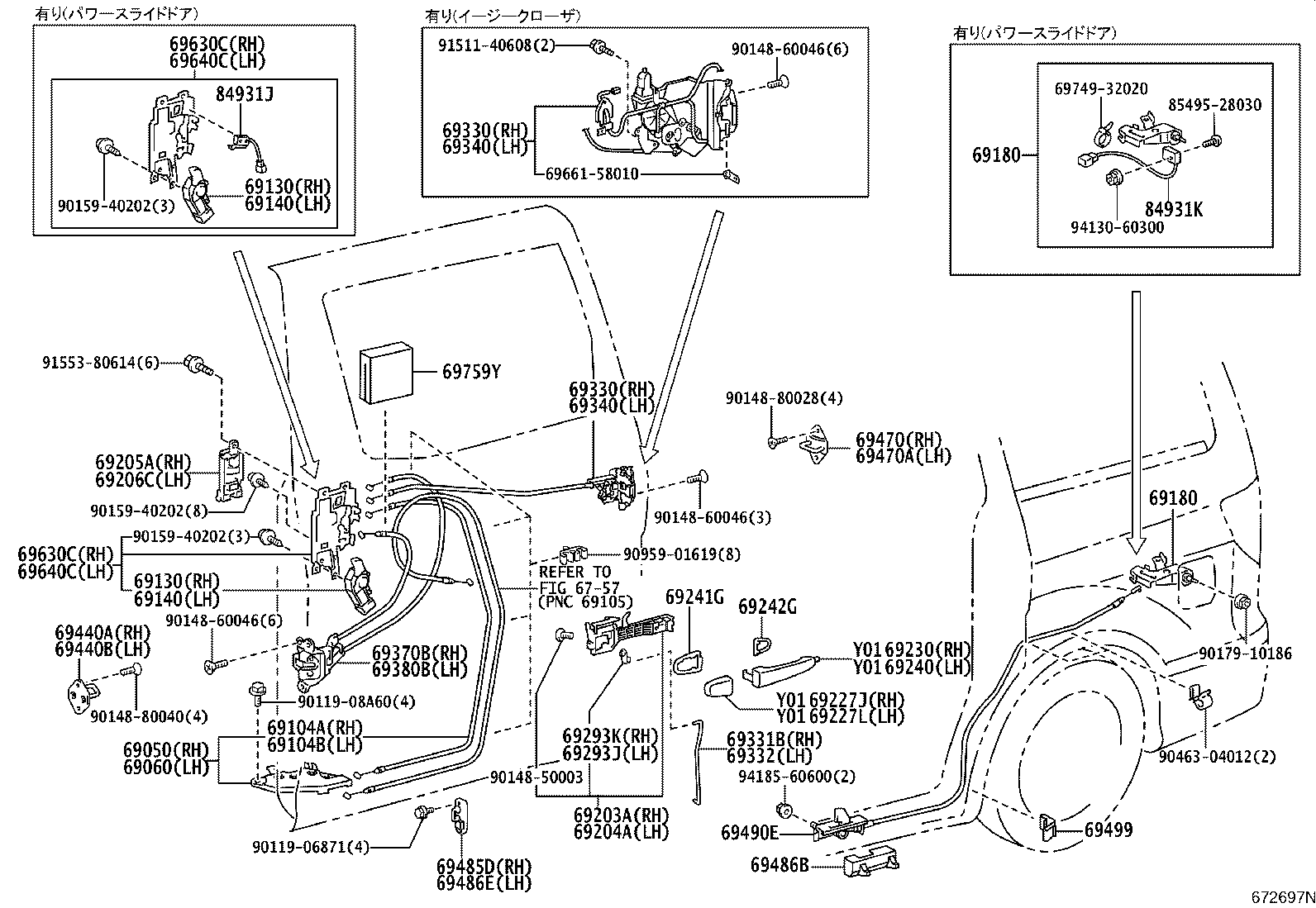

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-58010 |
ANH1#,MNH1# |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-58010 |
ANH1#,MNH1# |
1 | ||
| 69104A - CABLE SUB-ASSY, SLIDE DOOR FULL STOP CONTROL, RH | ||||
| 69104-58010 |
ANH1#,MNH1# |
1 | ||
| 69104B - CABLE SUB-ASSY, SLIDE DOOR FULL STOP CONTROL, LH | ||||
| 69104-58010 |
ANH1#,MNH1# |
1 | ||
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69130-58010 |
MNH1#..MZ |
1 | ||
| 69130-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69130-58020 |
MNH1#..MZ |
1 | ||
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69130-58010 |
MNH1#..MZ |
1 | ||
| 69130-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69130-58020 |
MNH1#..MZ |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69140-58020 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69140-58020 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 69140-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69140-58020 |
MNH1#..MZ |
1 | ||
| 69140-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69140-58020 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69140-58020 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 69140-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69140-58020 |
MNH1#..MZ |
1 | ||
| 69140-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-58010 |
MNH1#..MZ |
1 | ||
| 69180-58010 |
MNH10..08S..4FC..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69180-58010 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 69180-28060 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69180-58010 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-58010 |
MNH1#..MZ |
1 | ||
| 69180-58010 |
MNH10..08S..4FC..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69180-58010 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 69180-28060 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69180-58010 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-58010 |
ANH1#,MNH1# |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-58010 |
ANH1#,MNH1# |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69207-58020E0 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り,ORCHID BROWN,TRIM0# |
1 | ||
| 69207-58020E0 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り,ORCHID BROWN,TRIM0# |
1 | ||
| 69207-58010E0 |
MNH1#..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 69207-28020E1 |
ANH1#,MNH1#..AX,MX ORCHID BROWN,TRIM0# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-58010E0 |
MNH1#..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 69208-28020E1 |
ANH1#,MNH1#..AX,MX ORCHID BROWN,TRIM0# |
1 | ||
| 69208-58020E0 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り,ORCHID BROWN,TRIM0# |
1 | ||
| 69208-58020E0 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り,ORCHID BROWN,TRIM0# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-28050C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69227-28050A1 |
ANH1#,MNH1#..AX,MX WHITE PM.,042 ,2JD |
1 | ||
| 69227-28050G0 |
ANH1#,MNH1#..AX,MX LT. GREEN M.M.,6T2 |
1 | ||
| 69227-28050D0 |
ANH1#,MNH1#..AX,MX BORDEAUX MC.,3P2 |
1 | ||
| 69227-28050F1 |
ANH1#,MNH1#..AX,MX GOLD ME.,593 |
1 | ||
| 69227-28050B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69227-58010 |
MNH1#..MZ *CR |
1 | ||
| 69227-28050B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-28050B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69227-28050C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69227-58010 |
MNH1#..MZ *CR |
1 | ||
| 69227-28050B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69227-28050D0 |
ANH1#,MNH1#..AX,MX BORDEAUX MC.,3P2 |
1 | ||
| 69227-28050A1 |
ANH1#,MNH1#..AX,MX WHITE PM.,042 ,2JD |
1 | ||
| 69227-28050G0 |
ANH1#,MNH1#..AX,MX LT. GREEN M.M.,6T2 |
1 | ||
| 69227-28050F1 |
ANH1#,MNH1#..AX,MX GOLD ME.,593 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69213-28010C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69213-28010G0 |
ANH1#,MNH1#..AX,MX LT. GREEN M.M.,6T2 |
1 | ||
| 69213-28010F1 |
ANH1#,MNH1#..AX,MX GOLD ME.,593 |
1 | ||
| 69213-28010B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69213-28010D0 |
ANH1#,MNH1#..AX,MX BORDEAUX MC.,3P2 |
1 | ||
| 69213-28010B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69213-28010A1 |
ANH1#,MNH1#..AX,MX WHITE PM.,042 ,2JD |
1 | ||
| 69230-58010 |
MNH1#..MZ ﾒｯｷ |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69213-28010F1 |
ANH1#,MNH1#..AX,MX GOLD ME.,593 |
1 | ||
| 69213-28010B2 |
ANH1#,MNH1#..AS,AX,MS,MX SILVER ME.,1C0 |
1 | ||
| 69213-28010D0 |
ANH1#,MNH1#..AX,MX BORDEAUX MC.,3P2 |
1 | ||
| 69213-28010C0 |
ANH1#,MNH1#..AS,AX,MS,MX BLACK MC.,209 |
1 | ||
| 69230-58010 |
MNH1#..MZ ﾒｯｷ |
1 | ||
| 69213-28010G0 |
ANH1#,MNH1#..AX,MX LT. GREEN M.M.,6T2 |
1 | ||
| 69213-28010A1 |
ANH1#,MNH1#..AX,MX WHITE PM.,042 ,2JD |
1 | ||
| 69213-28010B3 |
ANH1#,MNH1#..AS,AX,MS,MX GRAY M.M.,1E8 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-28020 |
ANH1#,MNH1# |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-28060 |
ANH1#,MNH1# |
2 | ||
| 69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12030 |
ANH1#,MNH1# |
1 | ||
| 69293K - SNAP, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12040 |
ANH1#,MNH1# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-58010 |
MNH1#..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69200-58010 |
ANH1#,MNH1# |
1 | ||
| 69330-58020 |
MNH1#..MX 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69200-58011 |
ANH1#,MNH1# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-58010 |
MNH1#..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69200-58010 |
ANH1#,MNH1# |
1 | ||
| 69330-58020 |
MNH1#..MX 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69200-58011 |
ANH1#,MNH1# |
1 | ||
| 69331B - ROD, REAR DOOR LOCK OPEN, RH | ||||
| 69331-58010 |
ANH1#,MNH1# |
1 | ||
| 69332 - ROD, REAR DOOR LOCK OPEN, LH | ||||
| 69332-58010 |
ANH1#,MNH1# |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-58020 |
MNH1#..MX 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69340-58010 |
MNH1#..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69300-58010 |
ANH1#,MNH1# |
1 | ||
| 69300-58011 |
ANH1#,MNH1# |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-58020 |
MNH1#..MX 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69340-58010 |
MNH1#..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69300-58010 |
ANH1#,MNH1# |
1 | ||
| 69300-58011 |
ANH1#,MNH1# |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-58020 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 69370-58020 |
MNH10..08S..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69370-58020 |
MNH1#..MX 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69370-58011 |
ANH1#,MNH1# |
1 | ||
| 69370-58010 |
ANH1#,MNH1# |
1 | ||
| 69370-58021 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 69370-58020 |
MNH10..08S..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-58020 |
MNH10..08S..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69380-58020 |
MNH1#..MX 寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69380-58010 |
ANH1#,MNH1# |
1 | ||
| 69380-58020 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 69380-58020 |
MNH10..08S..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&寒冷地仕様&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69380-58011 |
ANH1#,MNH1# |
1 | ||
| 69380-58021 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28050 |
ANH1#,MNH1# |
1 | ||
| 69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28050 |
ANH1#,MNH1# |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-28110 |
ANH1#,MNH1# |
1 | ||
| 69470-28100 |
MNH1#..4FC..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-28100 |
MNH1#..4FC..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ無し |
1 | ||
| 69470-28110 |
ANH1#,MNH1# |
1 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-58010 |
ANH1#,MNH1# |
1 | ||
| 69486B - COVER, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69486-58020 |
ANH1#,MNH1# |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-58010 |
ANH1#,MNH1# |
1 | ||
| 69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN | ||||
| 69490-58010 |
ANH1#,MNH1# |
1 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28010 |
ANH1#,MNH1# |
1 | ||
| 69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH | ||||
| 69630-28130 |
MNH1#..MZ |
1 | ||
| 69630-28130 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69630-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69630-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69630-58020 |
MNH1#..MZ |
1 | ||
| 69630-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH | ||||
| 69630-28130 |
MNH1#..MZ |
1 | ||
| 69630-28130 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69630-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69630-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69630-58020 |
MNH1#..MZ |
1 | ||
| 69630-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-28190 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69640-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69640-28220 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69640-58020 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69640-28220 |
MNH1#..MZ |
1 | ||
| 69640-28220 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-28190 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 69640-58010 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69640-28220 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 69640-58020 |
MNH10..08S..4FC..MX ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ2&Jｴﾃﾞｨｼｮﾝ&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 69640-28220 |
MNH1#..MZ |
1 | ||
| 69640-28220 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-58020 |
ANH1#,MNH1# |
1 | ||
| 84931J - SWITCH, DOOR CONTROL | ||||
| 84931-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,右側 |
1 | ||
| 84931-28110 |
MNH10..08S..4FC..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 84931-28110 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,左側 |
1 | ||
| 84931-28110 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84931-58020 |
MNH1#..MZ 右側 |
1 | ||
| 84931-28110 |
MNH1#..MZ 左側 |
1 | ||
| 84931K - SWITCH, DOOR CONTROL | ||||
| 84931-58010 |
MNH1#..MZ |
1 | ||
| 84931-58010 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 84931-58010 |
MNH10..08S..4FC..MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞｰ有り |
1 | ||
| 84931-58010 |
ANH1#,MNH1#..AX,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| Common parts | ||||
| 69661-58010 | ||||
| 69749-32020 | ||||
| 85495-28030 | ||||
| 90119-06871 | ||||
| 90119-08A60 | ||||
| 90148-50003 | ||||
| 90148-60046 | ||||
| 90148-80028 | ||||
| 90148-80040 | ||||
| 90159-40202 | ||||
| 90179-10186 | ||||
| 90463-04012 | ||||
| 90959-01619 | ||||
| 91511-40608 | ||||
| 91553-80614 | ||||
| 94130-60300 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 6757 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
