MNH10W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )MNH1#

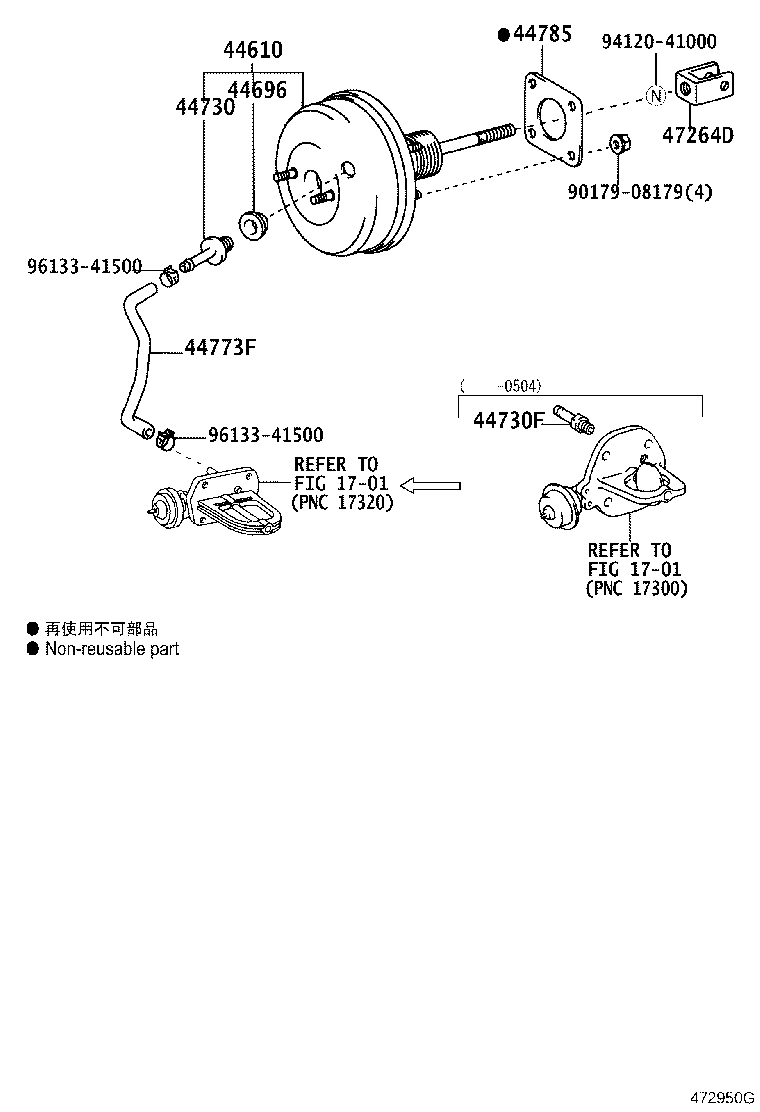

Click highlighted areas on diagram

diagram 1701 1701 44610 44696 44730 44730F 44773F 44785 47264D 9017908179 9412041000 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-58010

ANH1#,MNH1#

 1
44610-58020

MNH1#..MZ

VSC&TRC有り

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ANH1#,MNH1#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

ANH1#,MNH1#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

MNH1#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-58010

MNH1#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ANH1#,MNH1#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-60020

ANH1#,MNH1#

 1
Common parts
90179-08179
94120-41000
96133-41500
Linked diagrams
1701
