MNH10W-PRASK (2005)

Toyota Alphard G/V

Production Apr 2005 - Apr 2008
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0504- )MNH1#

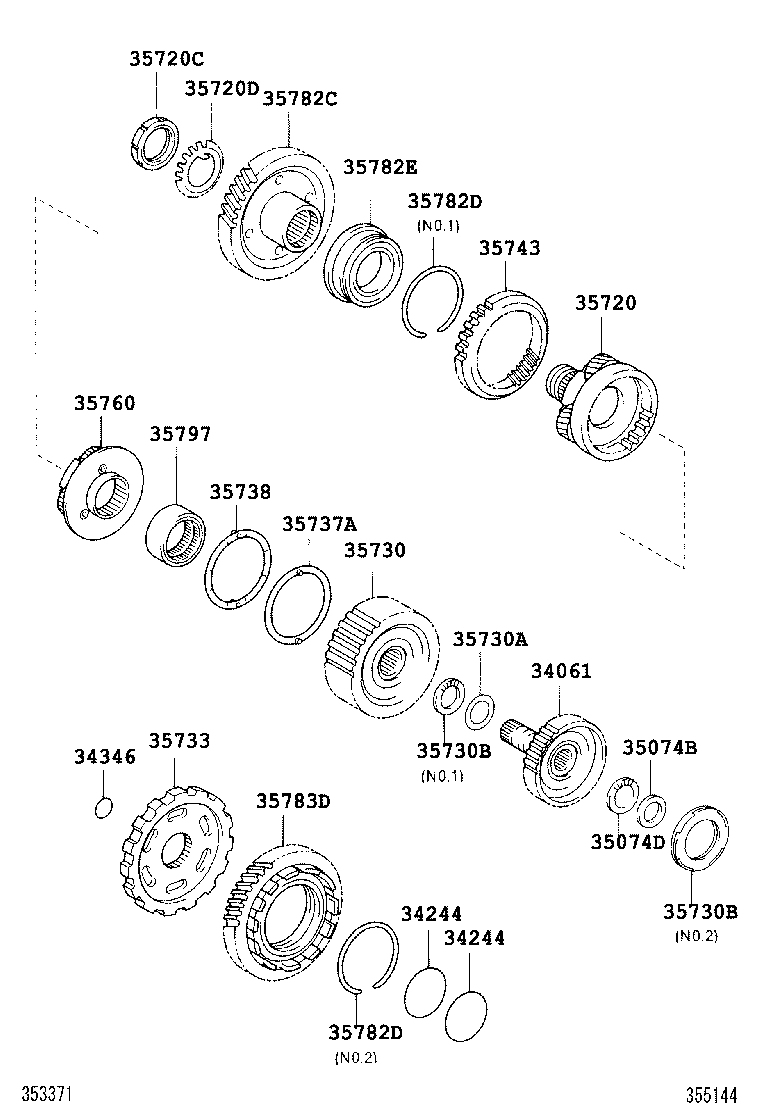

Click highlighted areas on diagram

U151E,U151F

diagram 34061 34244 34244 34346 35074B 35074D 35720 35720C 35720D 35730 35730A 35730B 35730B 35733 35737A 35738 35743 35760 35782C 35782D 35782D 35782E 35783D 35797
Part # Description Qty Price
34061 - HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH
34061-33010

MNH1#

 1
34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34244-21010

ANH1#,MNH1#

 2
34244-21010

ANH1#,MNH1#

 2
34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34244-21010

ANH1#,MNH1#

 2
34244-21010

ANH1#,MNH1#

 2
34346 - RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
34346-21011

ANH15,MNH1#

 1
34346-28010

ANH10,MNH1#

 1
34346-28010

ANH15,MNH1#

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-33030

MNH1#

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-25010

MNH1#

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-28030

MNH1#

 1
35720-28070

MNH1#

 1
35720C - NUT (FOR FRONT PLANETARY GEAR)
90179-46001

ANH1#,MNH1#

 1
90179-46001

ANH1#,MNH1#

 1
35720D - WASHER (FOR FRONT PLANETARY GEAR)
90209-46001

ANH1#,MNH1#

 1
90209-46001

ANH1#,MNH1#

 1
35730 - GEAR ASSY, REAR PLANETARY SUN
35730-28020

ANH10,MNH1#

 1
35730-33011

MNH1#

 1
35730-33010

MNH1#

 1
35730A - RACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35788-33010

MNH1#

 1
35789-21010

ANH1#,MNH1#

 1
35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G
90374-31007

MNH1#

NO.1

 1
90374-33003

ANH1#,MNH1#

 1
90374-55003

MNH1#

NO.2,厚さ=3.7

 1
90374-55002

MNH1#

NO.2,厚さ=3.4

 1
35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G
90374-31007

MNH1#

NO.1

 1
90374-33003

ANH1#,MNH1#

 1
90374-55003

MNH1#

NO.2,厚さ=3.7

 1
90374-55002

MNH1#

NO.2,厚さ=3.4

 1
35733 - GEAR, PARKING LOCK
35733-21010

MNH1#

 1
35733-48010

ANH15,MNH1#

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-28010

ANH10,MNH1#

 1
35737-28020

MNH1#

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35737-28020

ANH10,MNH1#

 1
35738-33030

MNH1#

 1
35743 - GEAR, FRONT PLANETARY RING
35743-28010

ANH15,MNH1#

 1
35743-28010

ANH10,MNH1#

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-28010

ANH10,MNH1#

 1
35760-33040

MNH1#

 1
35782C - GEAR, COUNTER DRIVE
35782-33020

MNH1#

 1
35782-28010

MNH1#

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-89004

ANH1#,MNH1#

NO.2

 1
90520-84001

ANH1#,MNH1#

NO.1

 1
90520-87004

MNH1#

NO.1

 1
90520-89002

ANH10,MNH1#

NO.2

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-89004

ANH1#,MNH1#

NO.2

 1
90520-84001

ANH1#,MNH1#

NO.1

 1
90520-87004

MNH1#

NO.1

 1
90520-89002

ANH10,MNH1#

NO.2

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90366-60009

ANH15,MNH1#

 2
90366-59001

MNH1#

 1
35783D - GEAR, COUNTER DRIVEN
35783-33030

MNH1#

 1
35783-28010

MNH1#

 1
35797 - RACE, 1 WAY CLUTCH INNER
35797-21010

ANH1#,MNH1#

 1
35797-21010

ANH1#,MNH1#

 1
