MNH10W-PFPSK (2002)
Toyota Alphard G/V

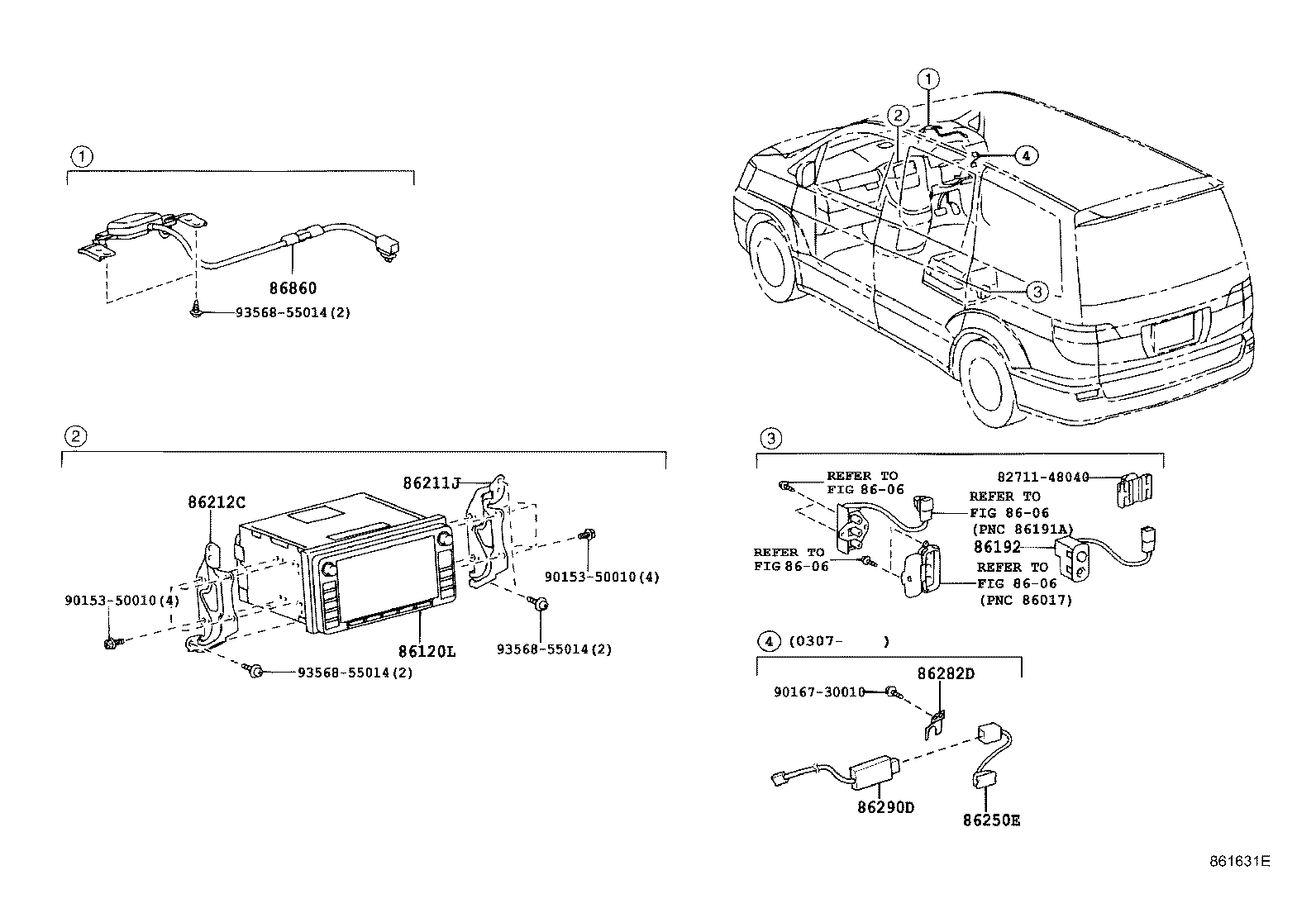

ILLUST NO. 1 OF 2(0205-0504)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-58041 |
ANH1#,MNH1# FUJITSU TEN,ID=16055,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 86120-58070 |
ANH1#,MNH1# FUJITSU TEN,ID=16061,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 86120-58030 |
ANH1#,MNH1# FUJITSU TEN,ID=16036,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 86120-58080 |
ANH1#,MNH1# FUJITSU TEN,ID=16067,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 86120-58031 |
ANH1#,MNH1# FUJITSU TEN,ID=16054,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰJ) |
1 | ||
| 86120-58040 |
ANH1#,MNH1# FUJITSU TEN,ID=16037,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟ[ｶ) |
1 | ||
| 86192 - TERMINAL, HEADPHONE | ||||
| 86192-58010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り,IVORY,TRIM0# |
2 | ||
| 86192-58010B0 |
ANH1#,MNH1#..AS,MS VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り,STONE,TRIM1# |
2 | ||
| 86192-58010A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
2 | ||
| 86192-58010B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,STONE,TRIM1# |
2 | ||
| 86192-58010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り,IVORY,TRIM0# |
2 | ||
| 86192-58010A0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
2 | ||
| 86192-58010B0 |
ANH1#,MNH1#..AS,MS VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り,STONE,TRIM1# |
2 | ||
| 86192-58010B0 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ)&ﾘﾔﾃﾚﾋﾞ有り,STONE,TRIM1# |
2 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86211-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86212-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86250-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86282D - BRACKET, MICROPHONE | ||||
| 86282-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86282-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86290D - AMPLIFIER ASSY, MICROPHONE | ||||
| 86025-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86025-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-58010 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86860-58010 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86860-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86860-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| Common parts | ||||
| 82711-48040 | ||||
| 90153-50010 | ||||
| 90167-30010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8606 | ||||

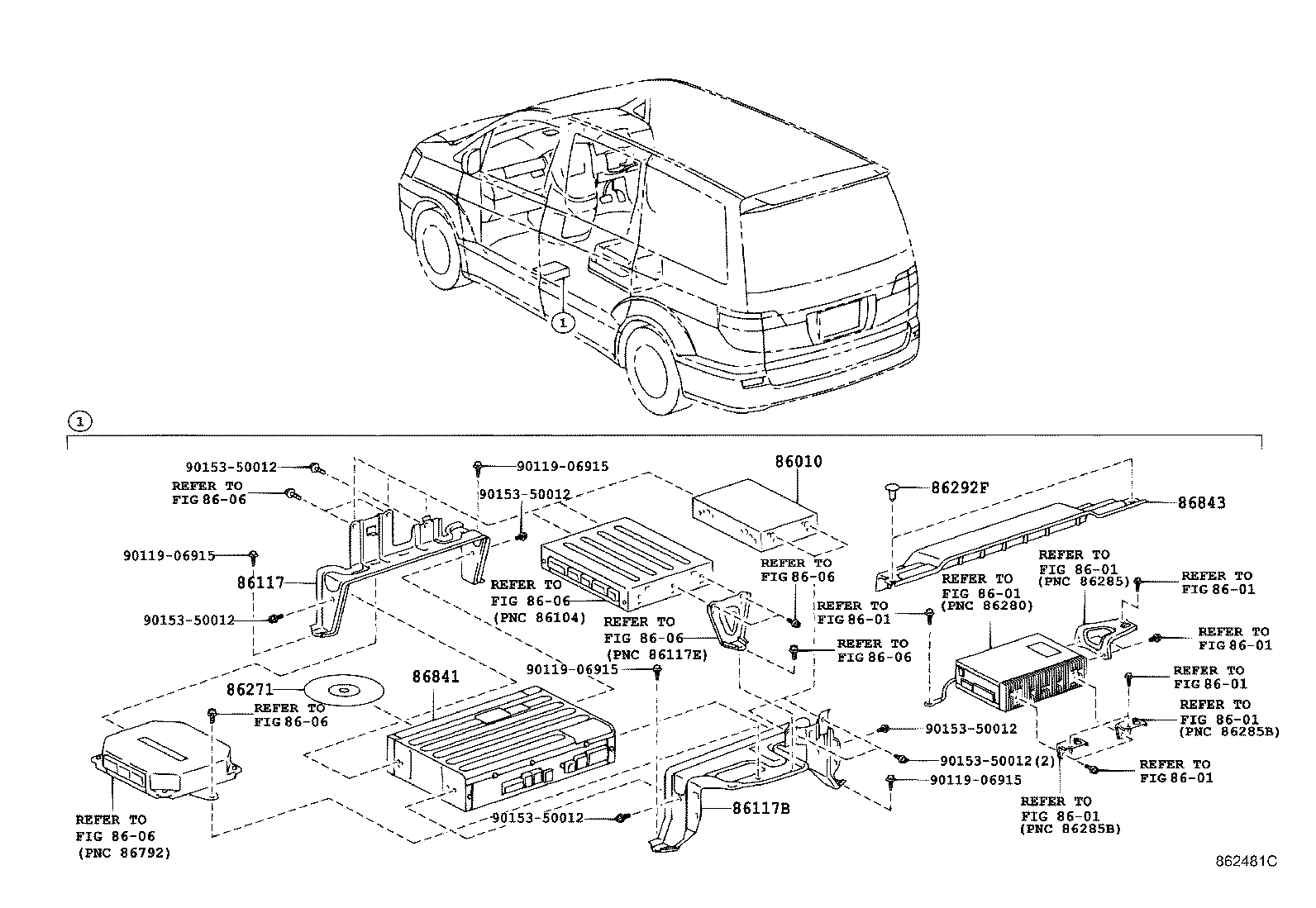

ILLUST NO. 2 OF 2(0205-0504)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86010 - TUNER ASSY, TELEVISION | ||||
| 86016-50010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86016-50010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86010-51040 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86010-51040 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-58060 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86117-58060 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86117-58060 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86117-58060 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86117B - BRACKET, TELEVISION DISPLAY, B | ||||
| 86117-58070 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86117-58070 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86117-58070 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86117-58070 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-52041 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),*263 |
1 | ||
| 86271-52042 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86271-52042 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86271-52043 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86271-52041 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),*263 |
1 | ||
| 86271-44020 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り,*262 |
1 | ||
| 86271-52043 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86292F - CLIP(FOR TELEVISION SET COVER) | ||||
| 90467-05020P2 |
ANH1#,MNH1#..AS,MS ﾅﾋﾞｹﾞｰｼｮﾝ有り,STONE,TRIM1# |
2 | ||
| 90467-05020A4 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),IVORY,TRIM0# |
2 | ||
| 90467-05020A4 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),IVORY,TRIM0# |
2 | ||
| 90467-05020P2 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ),STONE,TRIM1# |
2 | ||
| 90467-05020A4 |
ANH1#,MNH1#..AX,MX,MZ ﾅﾋﾞｹﾞｰｼｮﾝ有り,IVORY,TRIM0# |
2 | ||
| 90467-05020P2 |
ANH1#,MNH1#..AS,MS ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ),STONE,TRIM1# |
2 | ||
| 90467-05020A4 |
ANH1#,MNH1#..AX,MX,MZ ﾅﾋﾞｹﾞｰｼｮﾝ有り,IVORY,TRIM0# |
2 | ||
| 90467-05020P2 |
ANH1#,MNH1#..AS,MS ﾅﾋﾞｹﾞｰｼｮﾝ有り,STONE,TRIM1# |
2 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86841-52020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 86841-52020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86841-44010 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86843 - COVER, NAVIGATION COMPUTER | ||||
| 86843-58010 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86843-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 86843-58010 |
ANH1#,MNH1# ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 86843-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50012 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8606 | ||||
