MNH10W-PFPSK (2002)
Toyota Alphard G/V

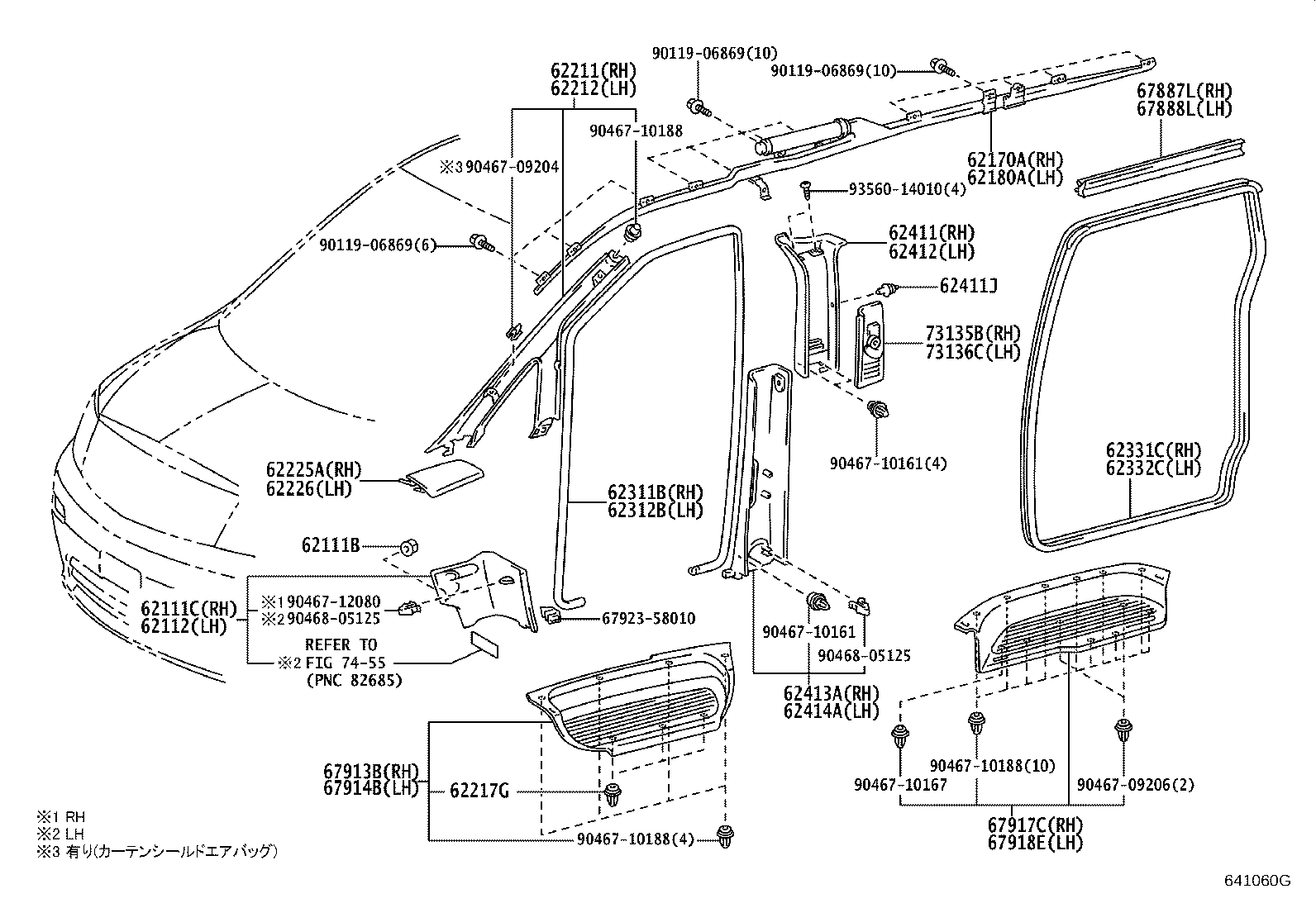

ILLUST NO. 1 OF 2(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06193B1 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
2 | ||
| 90467-06193A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 62111-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 62112-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-58010 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-58010 |
ANH1#,MNH1# SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62211-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62211-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 62211-58040A0 |
MNH1#..MZ SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62212-58040A0 |
MNH1#..MZ SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 62212-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 62212-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-13010 |
ANH1#,MNH1# |
6 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62225-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62226-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-58011A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 62311-58011B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 62311-58010A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 62311-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) STONE,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) STONE,TRIM1# |
1 | ||
| 62312-58011B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 62312-58011A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 62312-58010A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) IVORY,TRIM0# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 67871-58020A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 67871-58011B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 67871-58020B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 67871-58011A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 67871-58020A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 67871-58020B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 67872-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 67872-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62411-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62411J - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B6 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
2 | ||
| 90530-06009B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
2 | ||
| 90530-06009A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
2 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62412-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 62413-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 62414-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 67887L - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-58010 |
ANH1#,MNH1# |
1 | ||
| 67888L - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-58010 |
ANH1#,MNH1# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-58020A0 |
MNH1#..4FC..MZ IVORY,TRIM0# |
1 | ||
| 67910-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 67910-58021A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-58020A0 |
MNH1#..4FC..MZ IVORY,TRIM0# |
1 | ||
| 67920-58021A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 67920-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67907-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 67907-58020A0 |
MNH1#..4FC..MZ IVORY,TRIM0# |
1 | ||
| 67907-58021A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67907-58030B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 67907-58041A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 67907-58040A0 |
MNH1#..4FC..MZ IVORY,TRIM0# |
1 | ||
| 73135B - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73023-30010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 73023-30010B2 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 73136C - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73024-30010B2 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 73024-30010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 67923-58010 | ||||
| 90119-06869 | ||||
| 90467-09204 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10188 | ||||
| 90467-12080 | ||||
| 90468-05125 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7455 | ||||

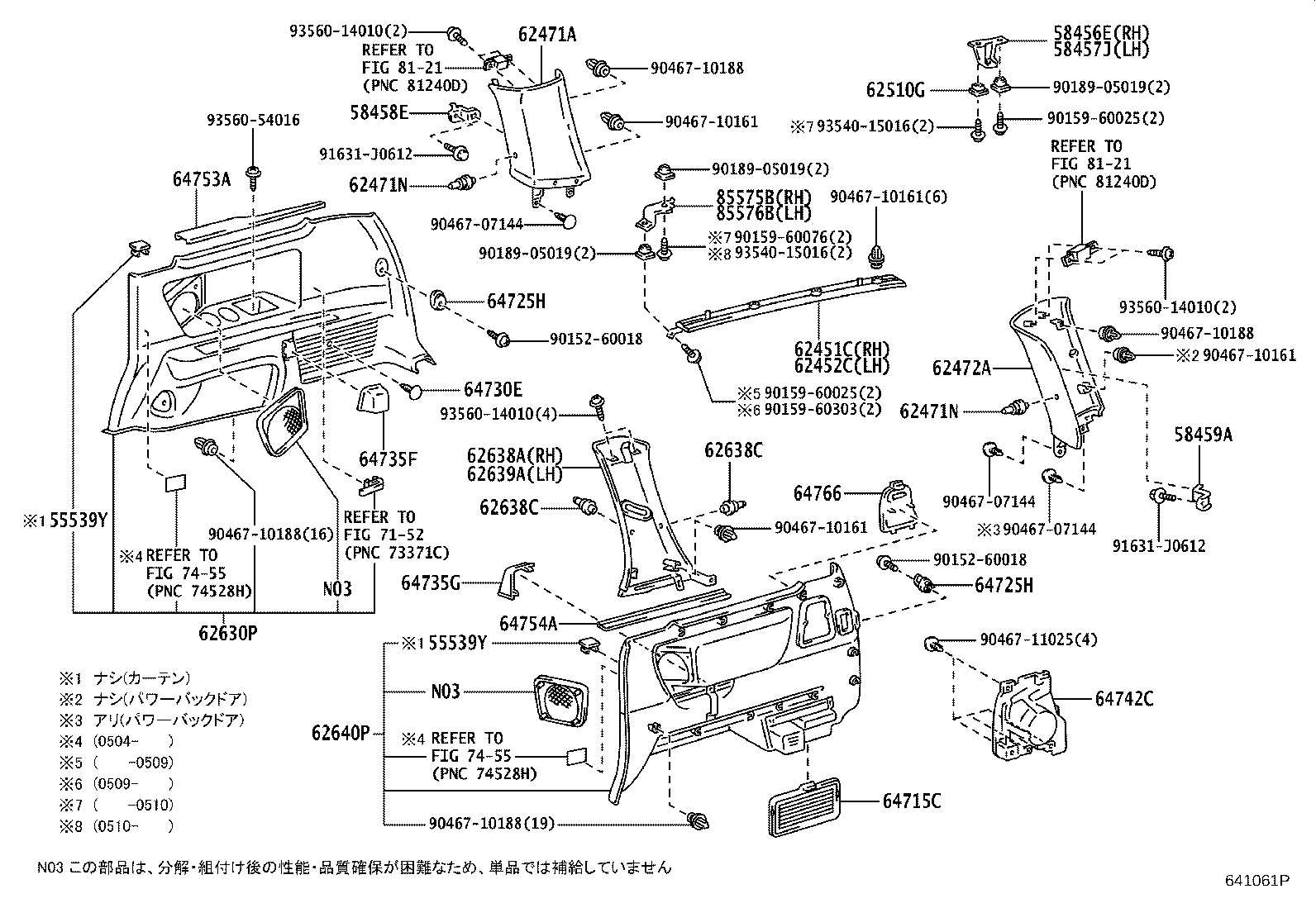

ILLUST NO. 2 OF 2(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B2 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B2 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 58456E - BRACKET, REAR GARNISH, NO.1 RH | ||||
| 58456-58010 |
ANH1#,MNH1# |
1 | ||
| 58457J - BRACKET, REAR GARNISH, NO.1 LH | ||||
| 58457-58020 |
ANH1#,MNH1# |
1 | ||
| 58458E - BRACKET, REAR GARNISH, NO.2 RH | ||||
| 58458-58010 |
ANH1#,MNH1# |
1 | ||
| 58459A - BRACKET, REAR GARNISH, NO.2 LH | ||||
| 58459-58010 |
ANH1#,MNH1# |
1 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62471-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
2 | ||
| 90530-06009A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
2 | ||
| 90530-06009B6 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
2 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
2 | ||
| 90530-06009A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
2 | ||
| 90530-06009B6 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-58020B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62472-58040A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62472-58030A0 |
MNH1#..4FC..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,IVORY,TRIM0# |
1 | ||
| 62472-58030A0 |
MNH1#..MZ ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)& ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,IVORY,TRIM0# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62517-58010 |
ANH1#,MNH1# |
2 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-58080C0 |
MNH1#..07S..4FC..MS 東京ﾄﾖﾍﾟｯﾄ50周年記念,BLACK,TRIM17 |
1 | ||
| 62630-58020B0 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 62630-58040A0 |
MNH1#..07S..MZ Gｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 62630-58030A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-58020A0 |
MNH1#..4FC..MZ IVORY,TRIM0# |
1 | ||
| 62638-58030B0 |
ANH1#,MNH1#..4FC..(AS,MS) SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 62638-58021A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62638-58040A0 |
MNH1#..4FC..MZ SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 62638-58011B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62638-58010B0 |
ANH1#,MNH1#..4FC..(AS,MS) LT.GRAY,TRIM1# |
1 | ||
| 62638-58031B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 62638-58041A0 |
MNH1#..MZ SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 62638C - FASTENER(FOR QUARTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
4 | ||
| 90530-06009A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
4 | ||
| 90530-06009B6 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
4 | ||
| 62638C - FASTENER(FOR QUARTER PILLAR GARNISH) | ||||
| 90530-06009B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
4 | ||
| 90530-06009A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
4 | ||
| 90530-06009B6 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
4 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 62639-58040A0 |
MNH1#..MZ SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 62639-58020A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62639-58030B0 |
ANH1#,MNH1#..AS,MS SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ,LT.GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-58030A0 |
MNH1#..MZ IVORY,TRIM0# |
1 | ||
| 62640-58080C0 |
MNH1#..07S..4FC..MS 東京ﾄﾖﾍﾟｯﾄ50周年記念,BLACK,TRIM17 |
1 | ||
| 62640-58040A0 |
MNH1#..07S..MZ Gｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 62640-58020B0 |
ANH1#,MNH1#..AS,MS DARK GRAY,TRIM1# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 64715-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 64725H - HOOK, QUARTER TRIM, | ||||
| 64725-58010E0 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM0# |
2 | ||
| 64725-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
2 | ||
| 64725H - HOOK, QUARTER TRIM, | ||||
| 64725-58010E0 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM0# |
2 | ||
| 64725-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
2 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-05020P2 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 90467-05020A4 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 64735F - COVER, DECK TRIM SIDE SERVICE HOLE, RH | ||||
| 64735-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 64735-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 64735G - COVER, DECK TRIM SIDE SERVICE HOLE, LH | ||||
| 64735-58020A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 64735-58020B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 58766-58010 |
ANH1#,MNH1# |
1 | ||
| 64753A - GARNISH, DECK SIDE, REAR, RH | ||||
| 64753-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 64753-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 64754A - GARNISH, DECK SIDE, REAR, LH | ||||
| 64754-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 64754-58010B0 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-58010E0 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM0# |
1 | ||
| 64766-58010B0 |
ANH1#,MNH1#..AS,MS DK.GRAY,TRIM1# |
1 | ||
| 85575B - BRACKET, AUTO CURTAIN RAIL, NO.3 RH | ||||
| 85575-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 85576B - BRACKET, AUTO CURTAIN RAIL, NO.3 LH | ||||
| 85576-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| Common parts | ||||
| 90152-60018 | ||||
| 90159-60025 | ||||
| 90159-60076 | ||||
| 90159-60303 | ||||
| 90189-05019 | ||||
| 90467-07144 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| 90467-11025 | ||||
| 91631-J0612 | ||||
| 93540-15016 | ||||
| 93560-14010 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
