MNH10W-PFPSK (2002)
Toyota Alphard G/V

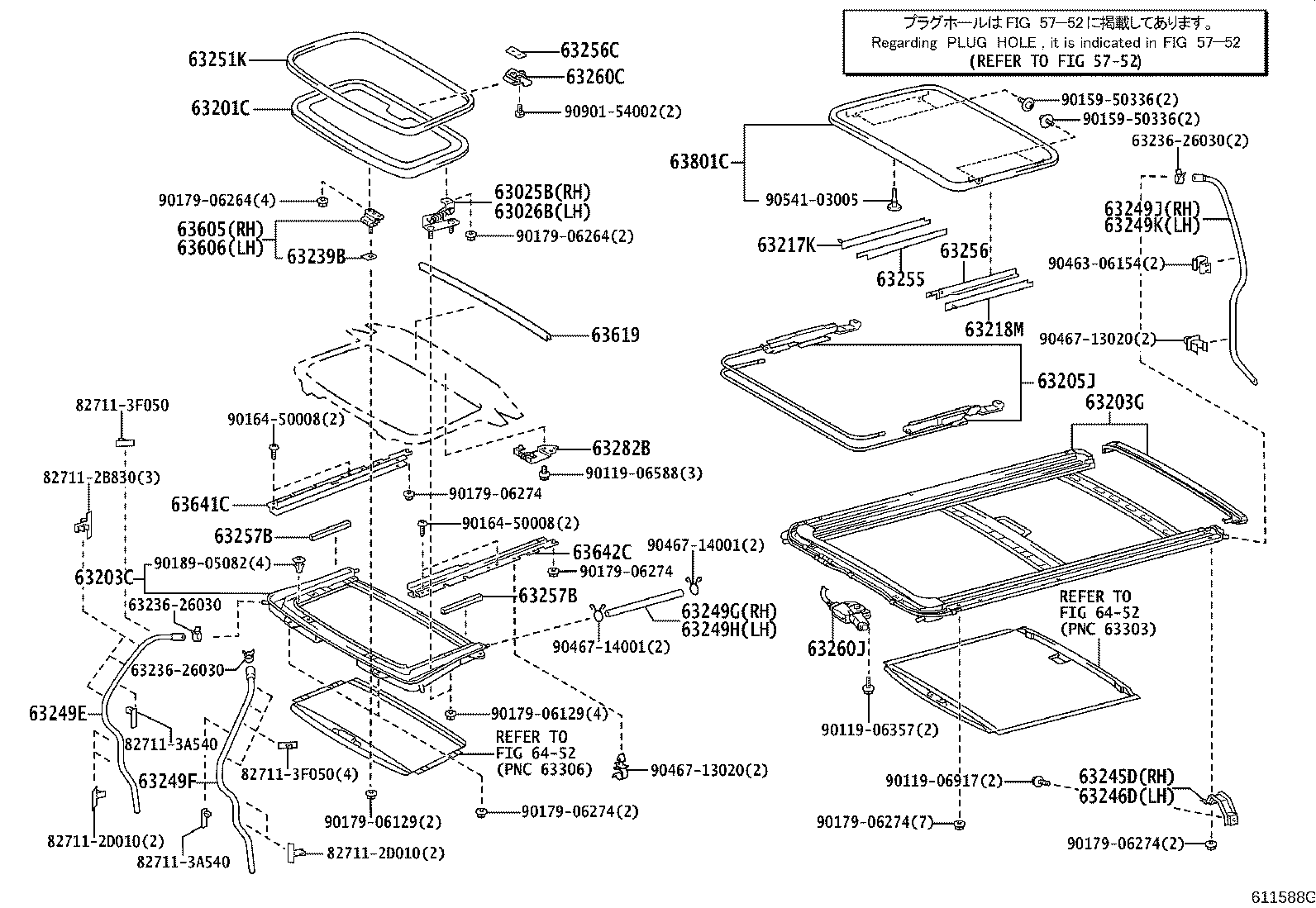

ILLUST NO. 2 OF 2(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-28060 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63025-28060 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-28060 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63026-28060 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63210-58010 |
ANH1#,MNH1#..4FC *TT,厚さ=5.0,ｸﾞﾘｰﾝ,有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63210-58020 |
ANH1#,MNH1# *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾚｰ,有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-28140 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63203-28140 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63203G - HOUSING SUB-ASSY, SLIDING ROOF, REAR | ||||
| 63203-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63203-58020 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63205J - CABLE SUB-ASSY, REAR SLIDING ROOF DRIVE | ||||
| 63205-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63205-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63217-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63218-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63239B - PAD, TILT ROOF GLASS | ||||
| 63239-26020 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
2 | ||
| 63239-26020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
2 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63241-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63241-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63241-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63241-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249-58020 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63245-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63245-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249H - HOSE, SLIDING ROOF DRAIN | ||||
| 63245-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63245-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249J - HOSE, SLIDING ROOF DRAIN | ||||
| 63220-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63220-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63249K - HOSE, SLIDING ROOF DRAIN | ||||
| 63220-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63220-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63251-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63255-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-58020 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63256-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63256-44010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-32010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
2 | ||
| 63257-32010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
2 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-32010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
2 | ||
| 63257-32010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
2 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63260-26030 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63260-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63282-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63605-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63606-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63619-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63641C - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63641-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63642C - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63642-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-58020 |
ANH1#,MNH1# *TT,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63801-58010 |
ANH1#,MNH1#..4FC *TT,厚さ=4.0,ｸﾞﾘｰﾝ,有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| Common parts | ||||
| 63236-26030 | ||||
| 82711-2B830 | ||||
| 82711-2D010 | ||||
| 82711-3A540 | ||||
| 82711-3F050 | ||||
| 90119-06357 | ||||
| 90119-06588 | ||||
| 90119-06917 | ||||
| 90159-50336 | ||||
| 90164-50008 | ||||
| 90179-06129 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90189-05082 | ||||
| 90463-06154 | ||||
| 90467-13020 | ||||
| 90467-14001 | ||||
| 90541-03005 | ||||
| 90901-54002 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6452 | ||||

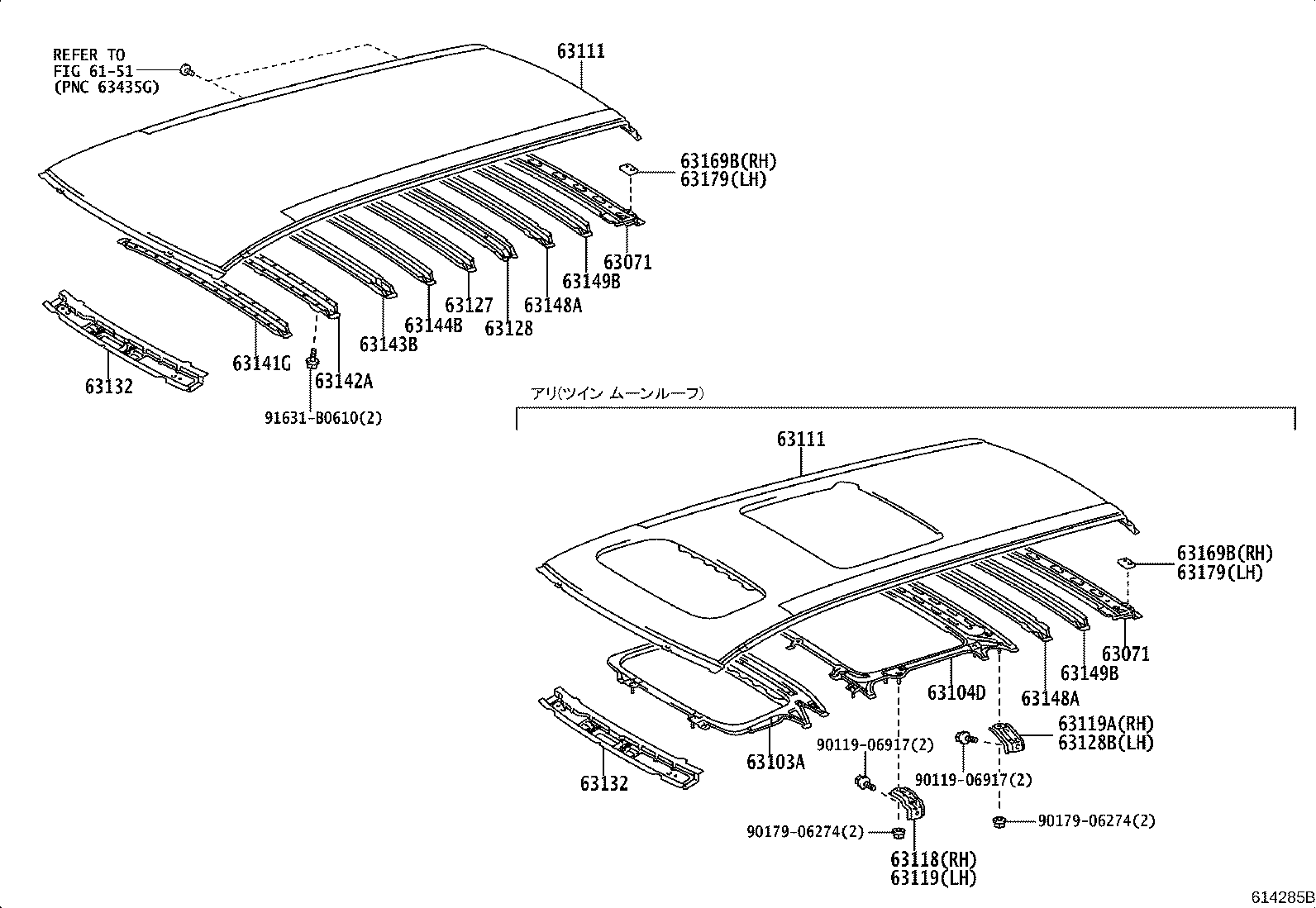

ILLUST NO. 1 OF 2(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-58010 |
ANH1#,MNH1# |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-58010 |
ANH1#,MNH1# |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63103-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63104-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111-58010 |
ANH1#,MNH1# |
1 | ||
| 63111-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63111-58010 |
ANH1#,MNH1# |
1 | ||
| 63111-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63118-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63118-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63119A - SUPPORT, ROOF PANEL, REAR RH | ||||
| 63118-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63118-58020 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-58010 |
ANH1#,MNH1# |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-58010 |
ANH1#,MNH1# |
1 | ||
| 63128B - SUPPORT, ROOF PANEL, REAR LH | ||||
| 63118-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63118-58020 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-58010 |
ANH1#,MNH1# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-58010 |
ANH1#,MNH1# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-58010 |
ANH1#,MNH1# |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-58010 |
ANH1#,MNH1# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-58010 |
ANH1#,MNH1# |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-58010 |
ANH1#,MNH1# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-58010 |
ANH1#,MNH1# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-58010 |
ANH1#,MNH1# |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63149-58010 |
ANH1#,MNH1# |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63149-58010 |
ANH1#,MNH1# |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-58010 |
ANH1#,MNH1# |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-58010 |
ANH1#,MNH1# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-58010 |
ANH1#,MNH1# |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-58010 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90119-06917 | ||||
| 90179-06274 | ||||
| 91631-B0610 | ||||
| Linked diagrams | ||||
| 6151 | ||||
