MNH10W-PFPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

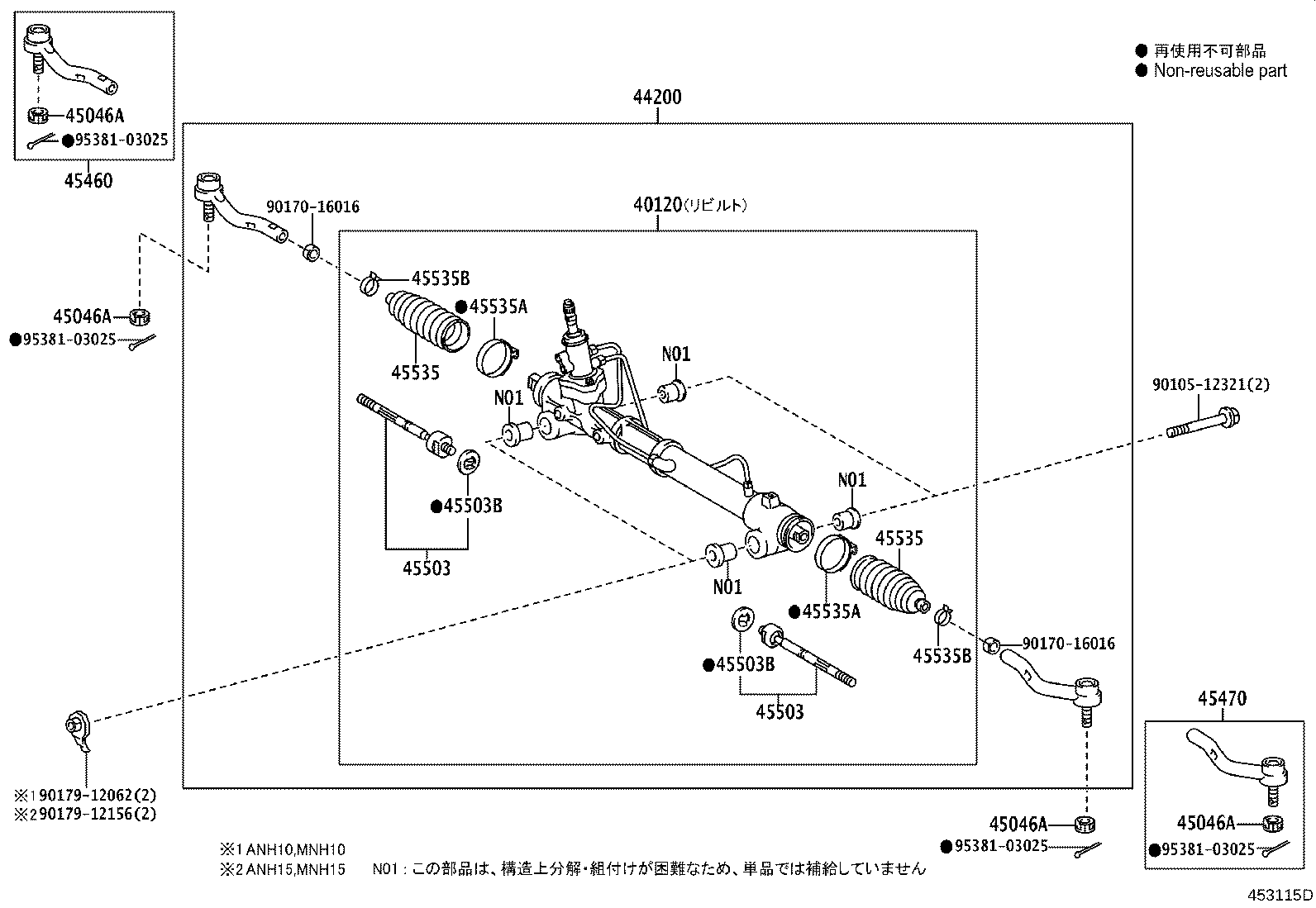

ILLUST NO. 1 OF 2(0205- )

Click highlighted areas on diagram

diagram 40120 44200 45046A 45046A 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45535 45535 45535A 45535A 45535B 45535B 9010512321 9017016016 9017016016 9017912062 9017912156 9538103025 9538103025 9538103025 9538103025
Part # Description Qty Price
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-58010

ANH10,MNH10..AX,MX,MZ

TOYODA KOKI

 1
40120-58011

ANH10,MNH10..AX,MX,MZ

TOYODA KOKI

 1
44200 - LINK ASSY, POWER STEERING
44200-58010

ANH10,MNH10..AX,MX,MZ

 1
44200-58011

ANH10,MNH10..AX,MX,MZ

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ANH1#,MNH1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ANH1#,MNH1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ANH1#,MNH1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ANH1#,MNH1#

 2
45460 - ROD ASSY, TIE, RH
45460-59055

ANH1#,MNH1#

 1
45470 - ROD ASSY, TIE, LH
45470-59055

ANH1#,MNH1#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-59075

ANH10,MNH10

 2
45503 - END SUB-ASSY, STEERING RACK
45503-59075

ANH10,MNH10

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

ANH1#,MNH1#

外径=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

ANH1#,MNH1#

外径=38

 2
45535 - BOOT, STEERING RACK, NO.1
45535-28030

ANH1#,MNH1#

 2
45535 - BOOT, STEERING RACK, NO.1
45535-28030

ANH1#,MNH1#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

ANH1#,MNH1#

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

ANH1#,MNH1#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19018

ANH1#,MNH1#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19018

ANH1#,MNH1#

 2
Common parts
90105-12321
90170-16016
90179-12062
90179-12156
95381-03025

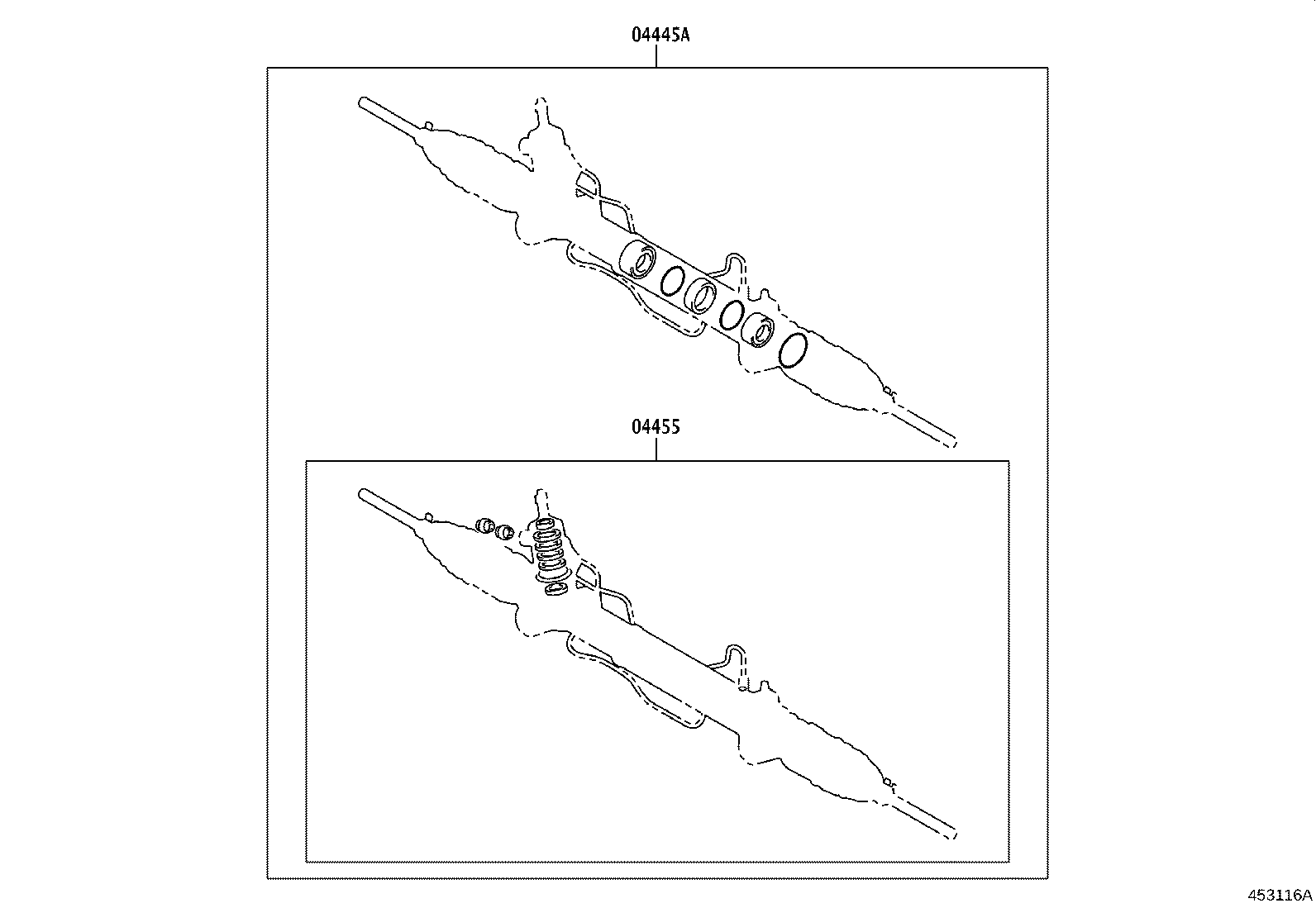

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-28091

ANH1#,MNH1#

 1
04445-58010

ANH1#,MNH1#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-28061

ANH1#,MNH1#

 1
