MNH10W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )AS,MS,MZ

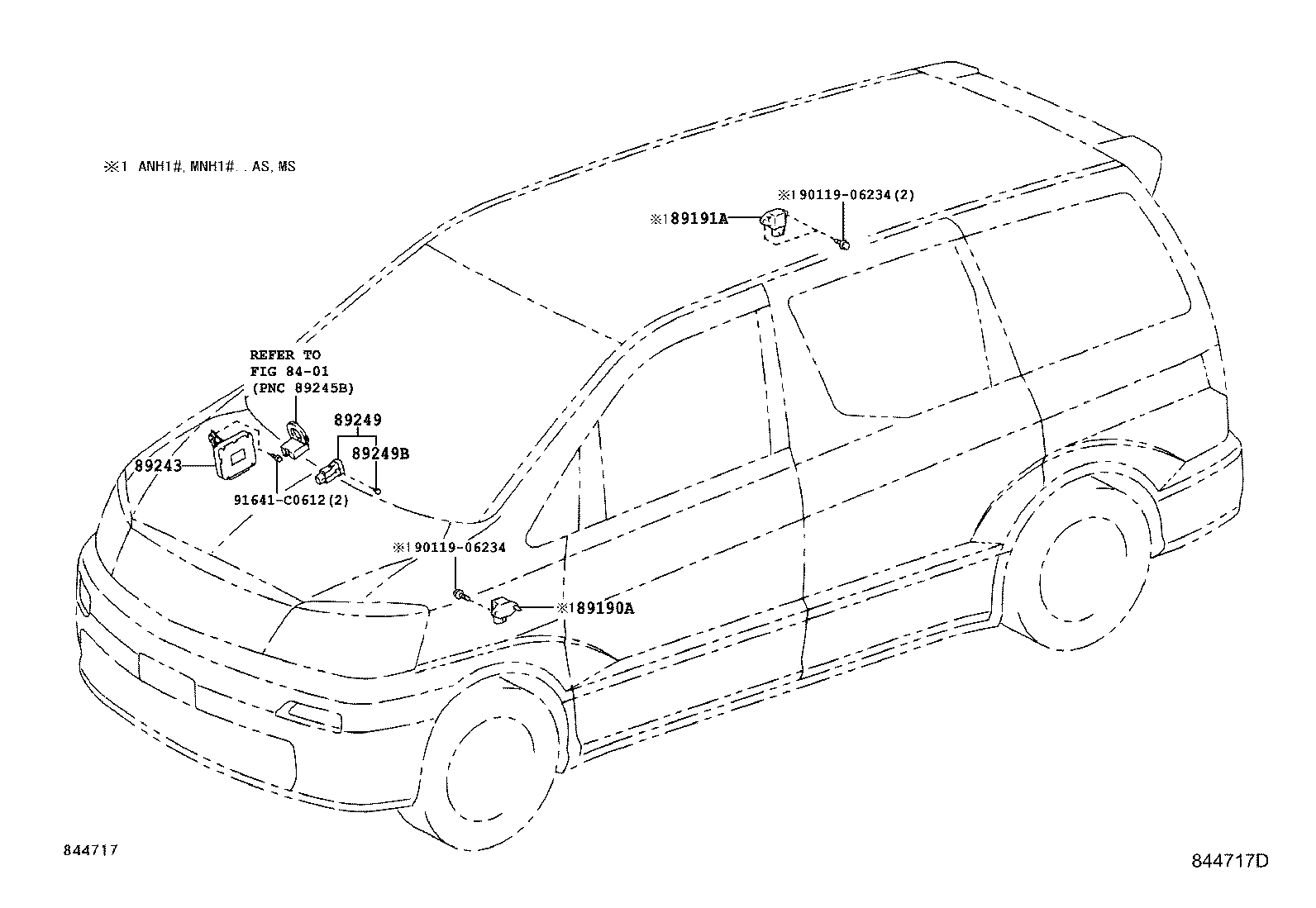

Click highlighted areas on diagram

diagram 8401 89190A 89191A 89243 89249 89249B 9011906234 9011906234 91641C0612
Part # Description Qty Price
89190A - SENSOR ASSY, ACCELERATION
89190-44010

MNH1#..MZ

VSC&TRC有り

 1
89191A - SENSOR, ACCELERATION
89191-30020

MNH1#..MZ

VSC&TRC有り

 1
89243 - COMPUTER, ABSORBER CONTROL
89243-58010

MNH1#..MZ

VSC&TRC有り

 1
89249 - SWITCH, ABSORBER CONTROL
89249-28020

MNH1#..MZ

VSC&TRC有り

 1
89249B - BULB, ABSORBER CONTROL SWITCH
84999-10310

MNH1#..MZ

14V 0.91W,VSC&TRC有り

 1
Common parts
90119-06234
91641-C0612
Linked diagrams
8401
