MNH10W-PFPGK (2002)
Toyota Alphard G/V

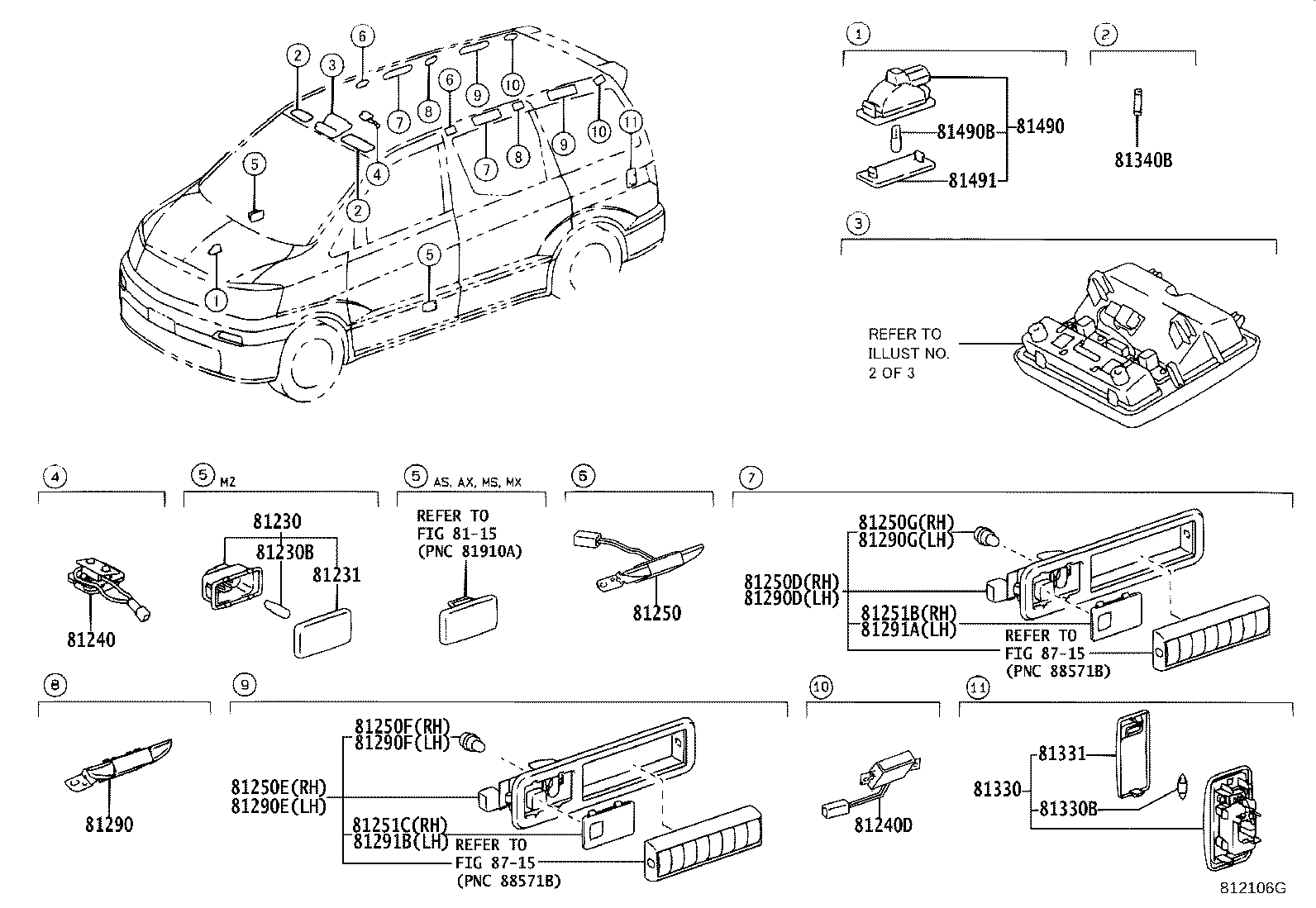

ILLUST NO. 1 OF 3(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30140 |
MNH1#..MZ |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
MNH1#..MZ 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
MNH1#..MZ |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 81240D - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-58060 |
ANH1#,MNH1# 右側 |
1 | ||
| 81250-58030 |
ANH1#,MNH1# 左側 |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81290-58010 |
ANH1#,MNH1# 左側 |
1 | ||
| 81250-58010 |
ANH1#,MNH1# 右側 |
1 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-58040A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 81250E - LAMP ASSY, REAR ROOM, RH NO.2 | ||||
| 81250-58050A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 81250F - BULB, REAR ROOM LAMP RH NO.2 | ||||
| 81936-28010 |
ANH1#,MNH1# 12V 5W |
1 | ||
| 81250G - BULB, REAR ROOM LAMP, RH | ||||
| 81936-28010 |
ANH1#,MNH1# 12V 5W |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-28040 |
ANH1#,MNH1# |
1 | ||
| 81251C - LENS, REAR ROOM LAMP, RH NO.2 | ||||
| 81251-28020 |
ANH1#,MNH1# |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81290-58020 |
ANH1#,MNH1# 左側 |
1 | ||
| 81250-58070 |
ANH1#,MNH1# 右側 |
1 | ||
| 81250-58020 |
ANH1#,MNH1#..4FC 右側 |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-58040A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 81290E - LAMP ASSY, REAR ROOM, LH NO.2 | ||||
| 81290-58050A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 81290F - BULB, REAR ROOM LAMP LH NO.2 | ||||
| 81936-28010 |
ANH1#,MNH1# 12V 5W |
1 | ||
| 81290G - BULB, REAR ROOM LAMP, LH | ||||
| 81936-28010 |
ANH1#,MNH1# 12V 5W |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-28010 |
ANH1#,MNH1# |
1 | ||
| 81291B - LENS, REAR ROOM LAMP, LH NO.2 | ||||
| 81291-28010 |
ANH1#,MNH1# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-13020E3 |
ANH1#,MNH1#..AX,MX,MZ ORCHID BROWN,TRIM0# |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
ANH10,MNH10..07S..(AX,MX,MZ) 12V 5W,ﾘﾔｽﾛｰﾌﾟﾀｲﾌﾟ1 |
1 | ||
| 99132-13050 |
ANH1#,MNH1# 12V 5W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81251-12030 |
ANH1#,MNH1# |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
ANH1#,MNH1# 12V 1.5W |
1 | ||
| 81490 - LAMP ASSY, FOOT | ||||
| 81490-26010 |
MNH1#..MZ |
1 | ||
| 81490B - BULB (FOR FOOT LAMP) | ||||
| 90981-11018 |
MNH1#..MZ 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81491 - LENS, FOOT LAMP | ||||
| 81261-50010 |
MNH1#..MZ |
1 | ||
| Linked diagrams | ||||
| 8115 | ||||
| 8715 | ||||

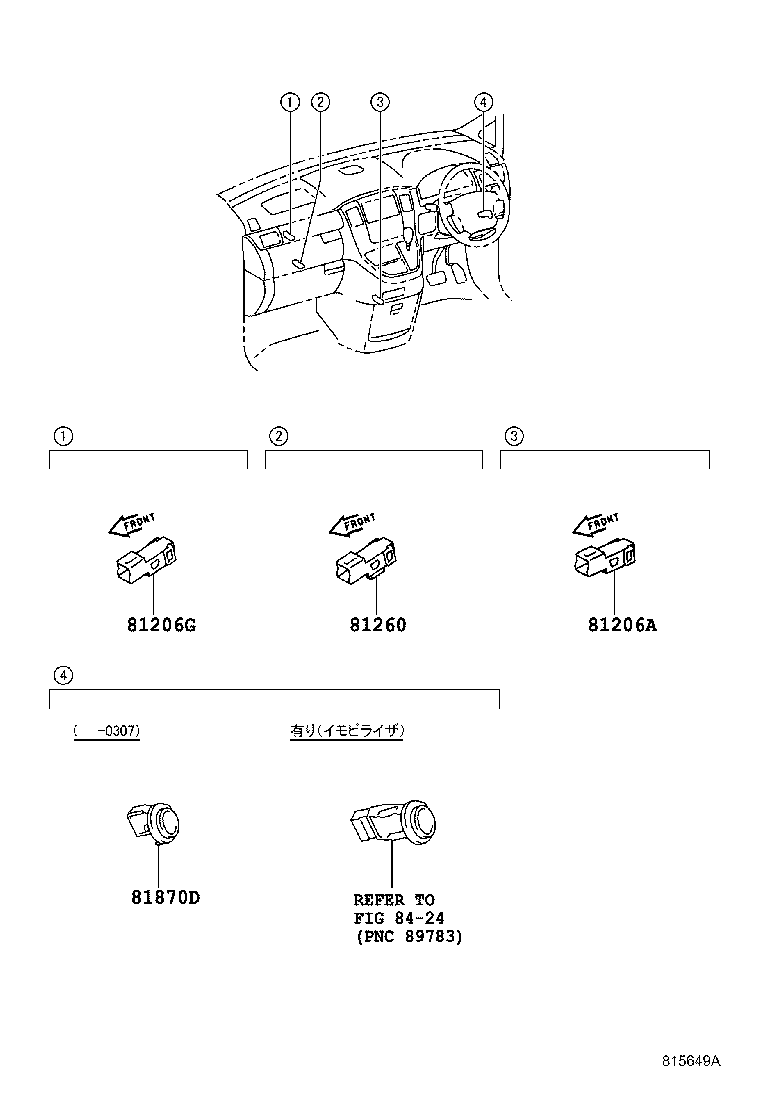

ILLUST NO. 3 OF 3(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81206A - LAMP SUB-ASSY, CONSOLE BOX | ||||
| 81206-44010 |
ANH1#,MNH1# |
1 | ||
| 81206G - LAMP SUB-ASSY, CONSOLE BOX | ||||
| 81206-44010 |
ANH1#,MNH1# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81206-58010 |
ANH1#,MNH1# |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-13010 |
MNH1#..4FC..MX Jｴﾃﾞｨｼｮﾝ |
1 | ||
| Linked diagrams | ||||
| 8424 | ||||

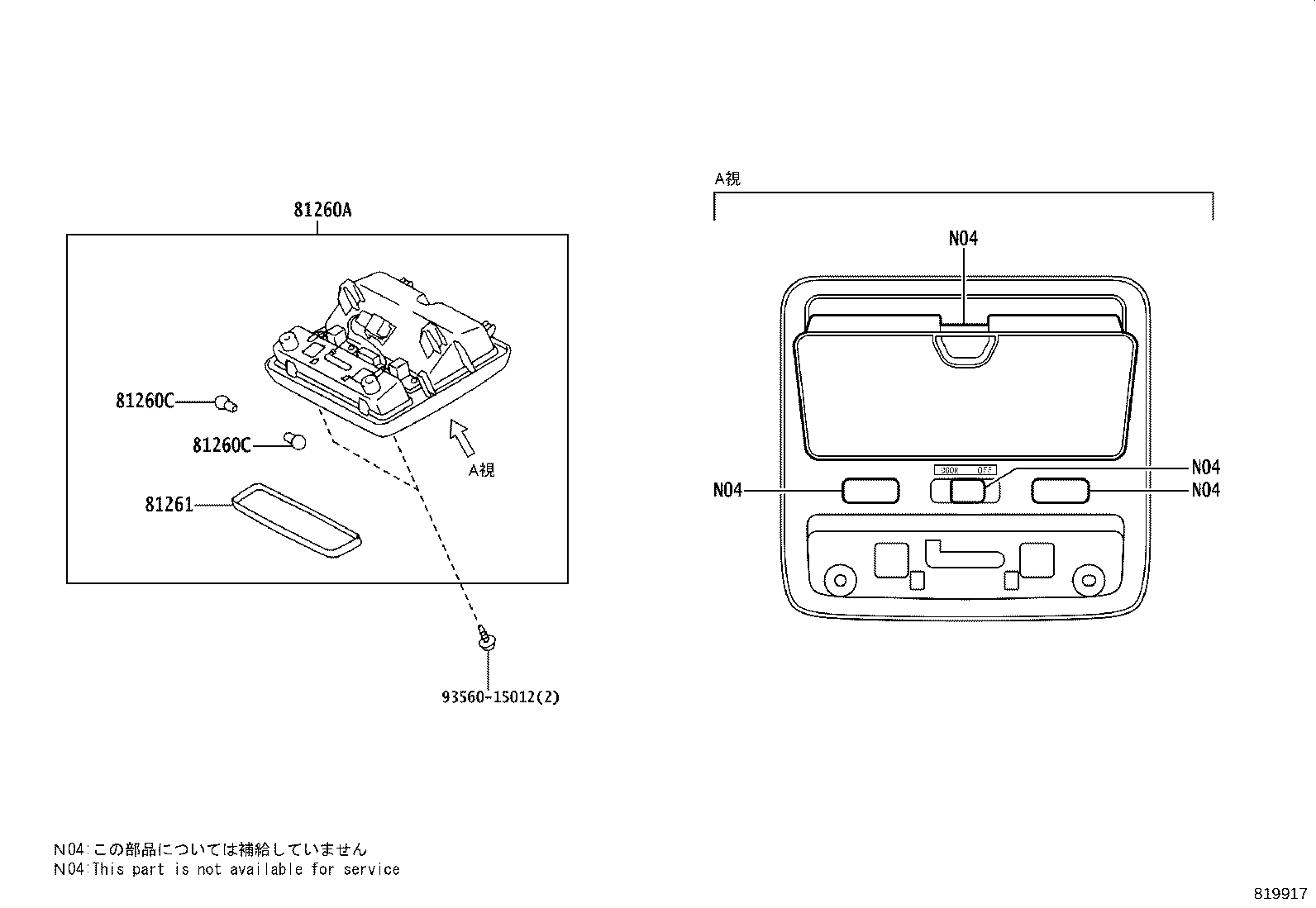

ILLUST NO. 2 OF 3(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12020 |
ANH1#,MNH1# 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12020 |
ANH1#,MNH1# 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81265-51010 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 93560-15012 | ||||
