MNH10W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

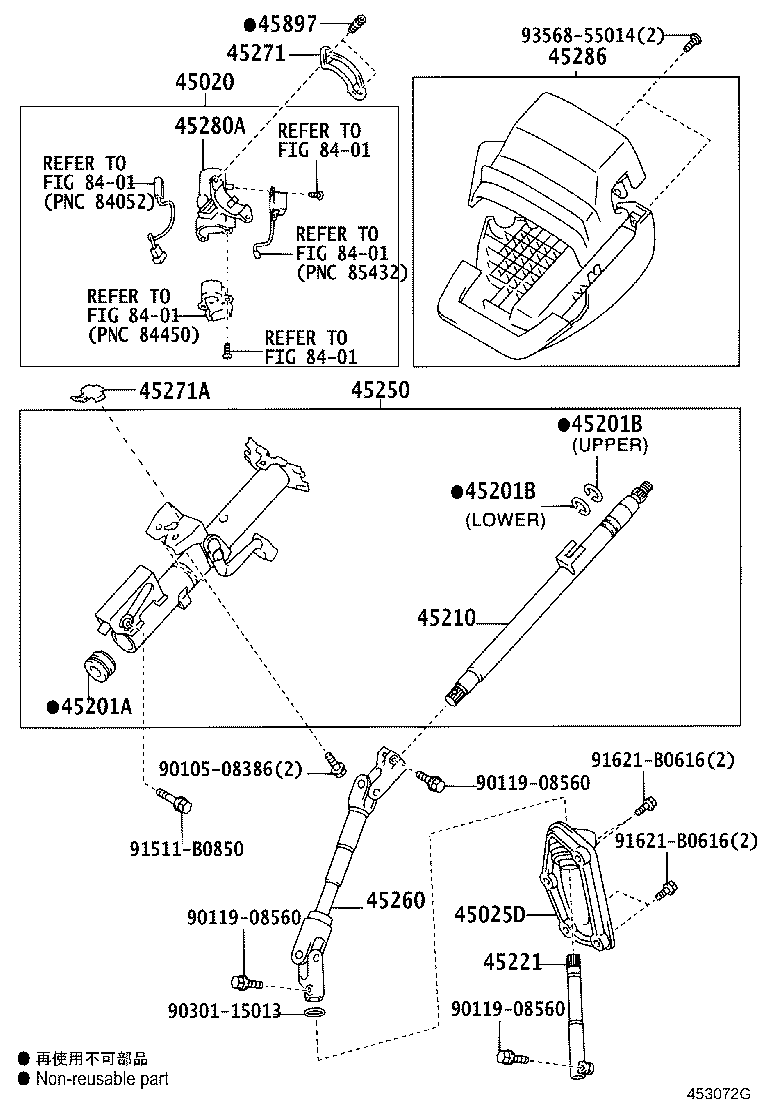

Click highlighted areas on diagram

diagram 45020 45025D 45201A 45201B 45201B 45210 45221 45250 45260 45271 45271A 45280A 45286 45897 8401 8401 8401 8401 8401 9010508386 9011908560 9011908560 9011908560 9030115013 91511B0850 91621B0616 91621B0616 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-58010

ANH10,MNH10

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-28010

ANH1#,MNH1#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ANH1#,MNH1#

厚さ=1.20,下側

 1
90520-17269

ANH1#,MNH1#

厚さ=1.20,上側

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ANH1#,MNH1#

厚さ=1.20,下側

 1
90520-17269

ANH1#,MNH1#

厚さ=1.20,上側

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-28130

ANH1#,MNH1#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-58010

ANH10,MNH10

 1
45250 - COLUMN ASSY, STEERING
45250-58010

ANH1#,MNH1#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-58010

ANH10,MNH10

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

ANH1#,MNH1#

 1
45271A - CLAMP, STEERING COLUMN, UPPER NO.2
45271-52010

ANH1#,MNH1#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-58010

ANH1#,MNH1#

 1
45286 - COVER, STEERING COLUMN
45286-33921E1

ANH1#,MNH1#..AX,MX,MZ

ORCHID BROWN,TRIM0#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ANH1#,MNH1#

 2
Common parts
90105-08386
90119-08560
90301-15013
91511-B0850
91621-B0616
93568-55014
Linked diagrams
8401
