MNH10W-PFPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )MNH10

Click highlighted areas on diagram

ﾗｲﾄ

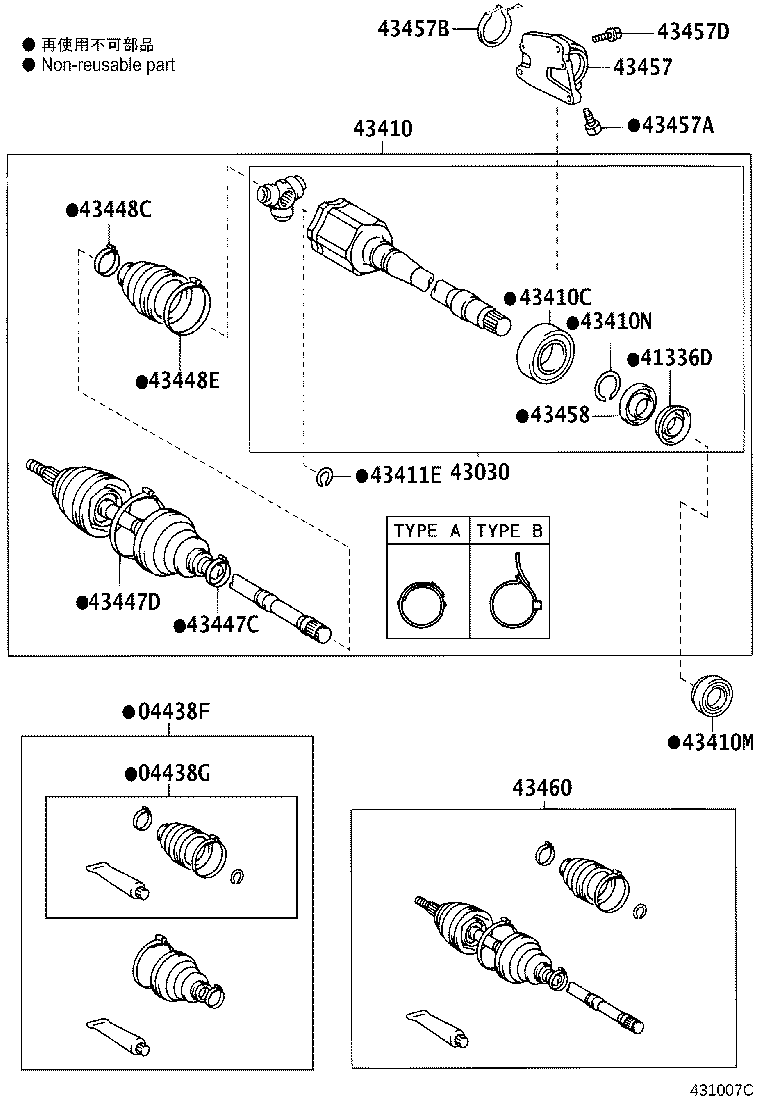

diagram 04438F 04438G 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43458 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04428-58060

MNH10

 1
04438-44051

MNH10

 1
04438-44050

MNH10

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-28041

ANH1#,MNH1#

 1
04438-58020

ANH1#,MNH1#

 1
04438-28040

ANH1#,MNH1#

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12020

ANH10,MNH10

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-58011

MNH10

 1
43030-58010

MNH10..4FC

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-58010

MNH10

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-41002

MNH10..4FC

 1
90363-41003

MNH10

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40028

MNH10

 1
90311-40010

MNH10

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

ANH10,MNH10

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ANH1#,MNH1#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-48010

MNH10

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-44010

MNH10

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010

ANH1#,MNH1#

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

ANH1#,MNH1#

TYPE B:ｲﾗｽﾄ参照

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ANH1#,MNH1#

TYPE A:ｲﾗｽﾄ参照

 1
90949-01076

ANH1#,MNH1#

TYPE B:ｲﾗｽﾄ参照

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-33010

MNH10

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

MNH10

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002

MNH10

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ANH10,MNH10

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-12010

ANH10,MNH10

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-39156

MNH10

 1
43460-39155

MNH10

 1
43460-49275

MNH10

 1

(0205- )MNH10

Click highlighted areas on diagram

ﾚﾌﾄ

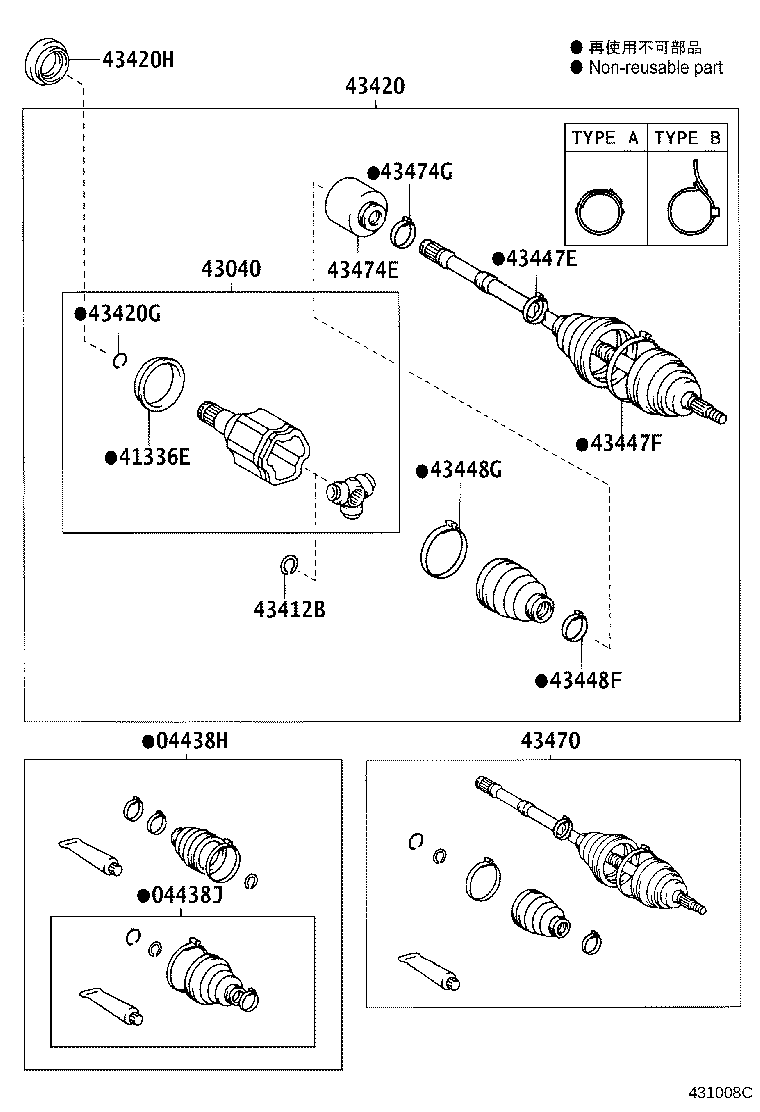

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-44050

MNH10

 1
04428-58060

MNH10

 1
04438-44051

MNH10

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-28041

ANH1#,MNH1#

 1
04438-58020

ANH10,MNH10

 1
04438-28040

ANH1#,MNH1#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28030

ANH15,MNH1#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28020

MNH10..4FC

 1
43040-28021

MNH10

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ANH1#,MNH1#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-33200

MNH10

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ANH10,MNH10

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50011

MNH10

 1
90311-50023

MNH1#

ﾏｰｸ=NOK

 1
90311-50029

MNH1#

ﾏｰｸ=KOYO

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-48010

MNH10

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-44010

MNH10

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

MNH10

TYPE B:ｲﾗｽﾄ参照

 1
42345-42010

MNH10

TYPE A:ｲﾗｽﾄ参照

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01076

ANH1#,MNH1#

TYPE B:ｲﾗｽﾄ参照

 1
42345-12160

ANH1#,MNH1#

TYPE A:ｲﾗｽﾄ参照

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-39375

MNH10

 1
43470-39465

MNH10

 1
43470-39376

MNH10

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-28010

MNH10

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ANH1#,MNH1#

 1
