MNH10W-PFASK (2005)

Toyota Alphard G/V

Production Apr 2005 - Apr 2008
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

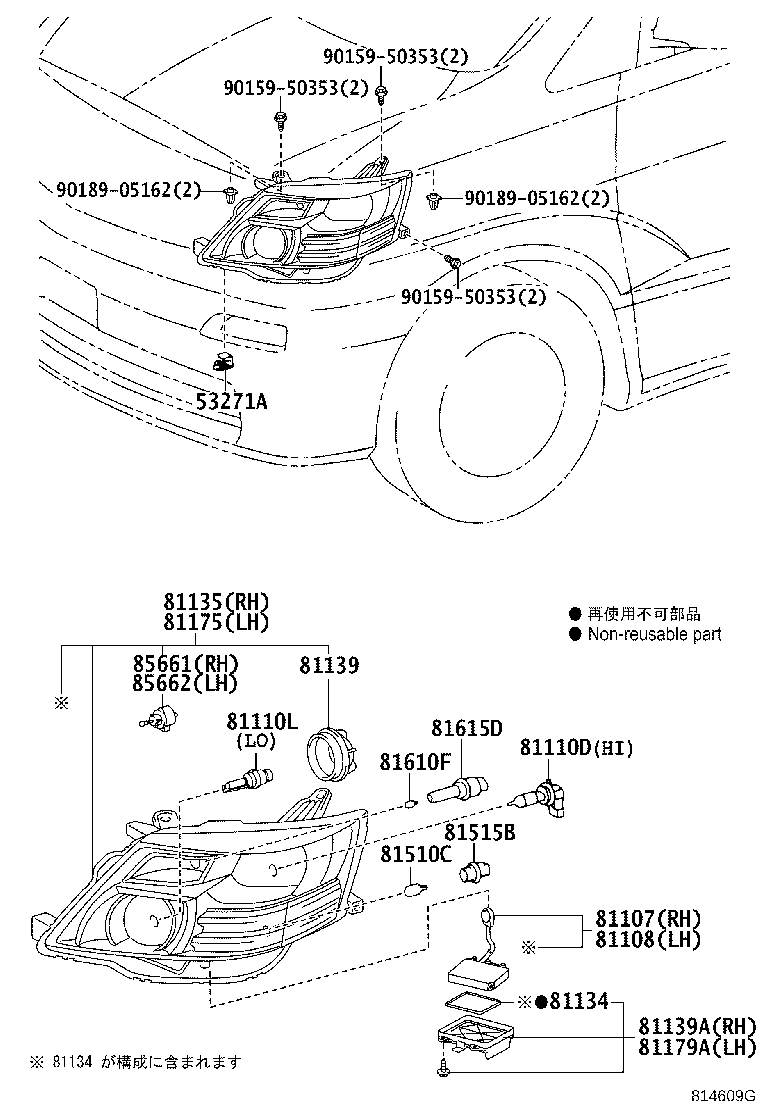

ILLUST NO. 1 OF 2(0504- )

Click highlighted areas on diagram

diagram 53271A 81107 81108 81110D 81110L 81134 81135 81139 81139A 81175 81179A 81510C 81515B 81610F 81615D 85661 85662 9015950353 9015950353 9015950353 9018905162 9018905162
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

ANH1#,MNH1#

 2
53271-12060

ANH1#,MNH1#

 2
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-58020

ANH1#,MNH1#..AS,MS,MX,MZ

 1
81107-58050

ANH1#,MNH1#

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-58020

ANH1#,MNH1#..AS,MS,MX,MZ

 1
81107-58050

ANH1#,MNH1#

 1
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

ANH1#,MNH1#..AS,MS,MX,MZ

12V 65W

 2
90080-81041

ANH1#,MNH1#..AS,MS,MZ

12V 65W

 2
90080-81041

ANH1#,MNH1#..AS,MS,MZ

12V 65W

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20017

ANH1#,MNH1#..AS,MS,MZ

85V 35W

 2
90981-20009

ANH1#,MNH1#..AS,MS,MX,MZ

85V 35W

 2
90981-20017

ANH1#,MNH1#..AS,MS,MZ

85V 35W

 2
81134 - GASKET, HEADLAMP
81134-52280

ANH1#,MNH1#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-58061

MNH1#..MZ

 1
81145-58030

ANH1#,MNH1#..AS,MS

 1
81145-58070

ANH1#,MNH1#..AS,MS

 1
81145-58060

MNH1#..MZ

 1
81145-58021

MNH1#..MX,MZ

ﾏｰｸ無し

 1
81145-58071

ANH1#,MNH1#..AS,MS

 1
81139 - COVER, HEADLAMP SOCKET
81135-13290

ANH1#,MNH1#..AS,MS,MX,MZ

 2
81135-58050

ANH1#,MNH1#

右側

 1
81135-13290

ANH1#,MNH1#

左側

 1
81139A - COVER, LIGHT CONTROL COMPUTER, RH
81139-58050

ANH1#,MNH1#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-58021

MNH1#..MX,MZ

ﾏｰｸ無し

 1
81185-58070

ANH1#,MNH1#..AS,MS

 1
81185-58060

MNH1#..MZ

 1
81185-58071

ANH1#,MNH1#..AS,MS

 1
81185-58061

MNH1#..MZ

 1
81185-58030

ANH1#,MNH1#..AS,MS

 1
81179A - COVER, LIGHT CONTROL COMPUTER, LH
81139-58050

ANH1#,MNH1#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ANH1#,MNH1#..AS,MS,MZ

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

ANH1#,MNH1#..AS,MS,MZ

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

ANH1#,MNH1#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81515-42050

ANH1#,MNH1#

 2
81515-42050

ANH1#,MNH1#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ANH1#,MNH1#..AS,MS,MZ

12V 5W

 2
99132-12050

ANH1#,MNH1#

12V 5W

 2
99132-12050

ANH1#,MNH1#..AS,MS,MZ

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60046

ANH1#,MNH1#..AS,MS,MX,MZ

 2
81138-52570

ANH1#,MNH1#

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-48030

ANH1#,MNH1#

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-48030

ANH1#,MNH1#

 1
Common parts
90159-50353
90189-05162
