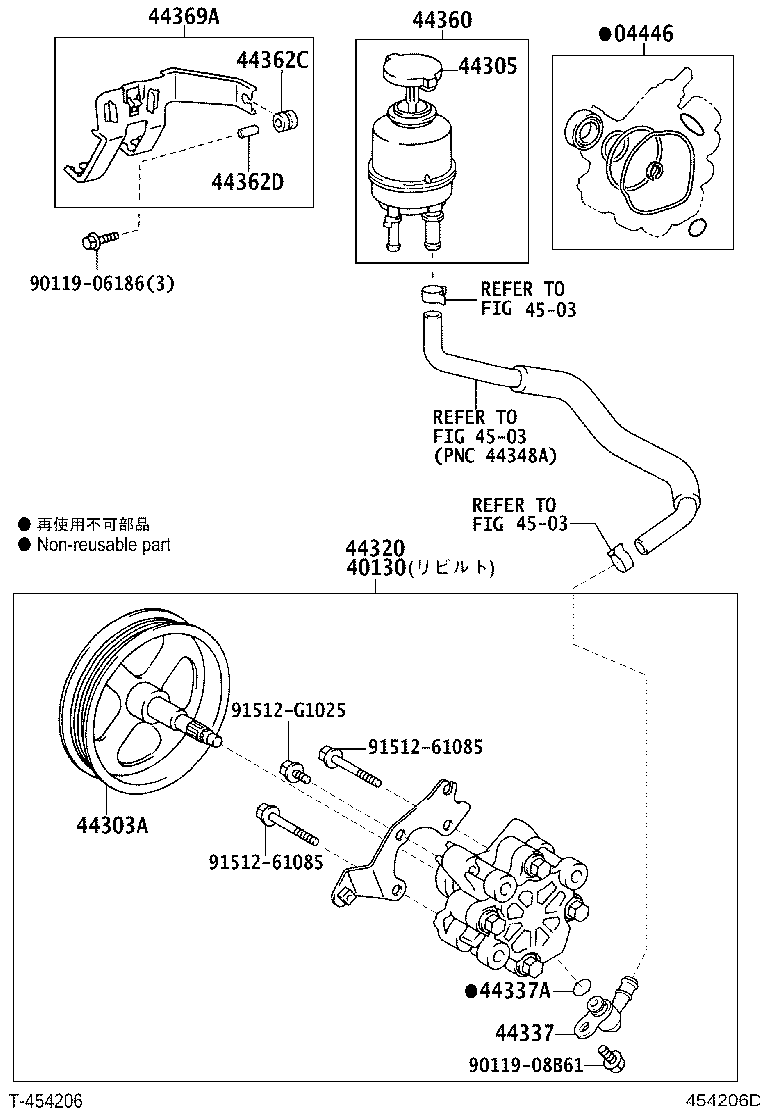

Toyota Alphard g/v MNH10 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-53030	MNH1#	05/2002 - 04/2005	1
04446-32050	ANH1#,MNH1#	04/2005 - 04/2008	1
40130 - PUMP ASSY,VANE REBUILT
40130-58020	MNH1#	04/2005 - 04/2008	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-58010	MNH1#	04/2005 - 12/2999	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030	ANH1#,MNH1#	05/2002 - 04/2005	1
44305-28060	ANH1#,MNH1#	02/2008 - 12/2999	1
44305-28030	ANH1#,MNH1#	04/2005 - 01/2008	1
44320 - PUMP ASSY, VANE
44320-58010	MNH1#	05/2002 - 04/2005	1
44310-58020	MNH1#	04/2005 - 04/2008	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-58010	MNH1#	04/2005 - 12/2999	1
44337-28110	MNH1#	05/2002 - 04/2005	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016	MNH1#	05/2002 - 04/2005	1
90301-11020	ANH1#,MNH1#	04/2005 - 12/2999	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-28150	ANH1#,MNH1#	04/2005 - 04/2008	1
44360-28150	ANH1#,MNH1#	05/2002 - 04/2005	1
44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR)
90540-09004	ANH1#,MNH1#	05/2002 - 04/2005	3
90540-09004	ANH1#,MNH1#	04/2005 - 12/2999	3
44362D - SPACER(FOR VANE PUMP OIL RESERVOIR)
90560-06014	ANH1#,MNH1#	04/2005 - 12/2999	3
90560-06014	ANH1#,MNH1#	05/2002 - 04/2005	3
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-28030	ANH1#,MNH1#	05/2002 - 04/2005	1
44390-28030	ANH1#,MNH1#	04/2005 - 12/2999	1
Common parts
90119-06186
90119-08B61
91512-61085
91512-G1025
Linked diagrams
4503

MNH10W-PFASK (2005)
