ANH15W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

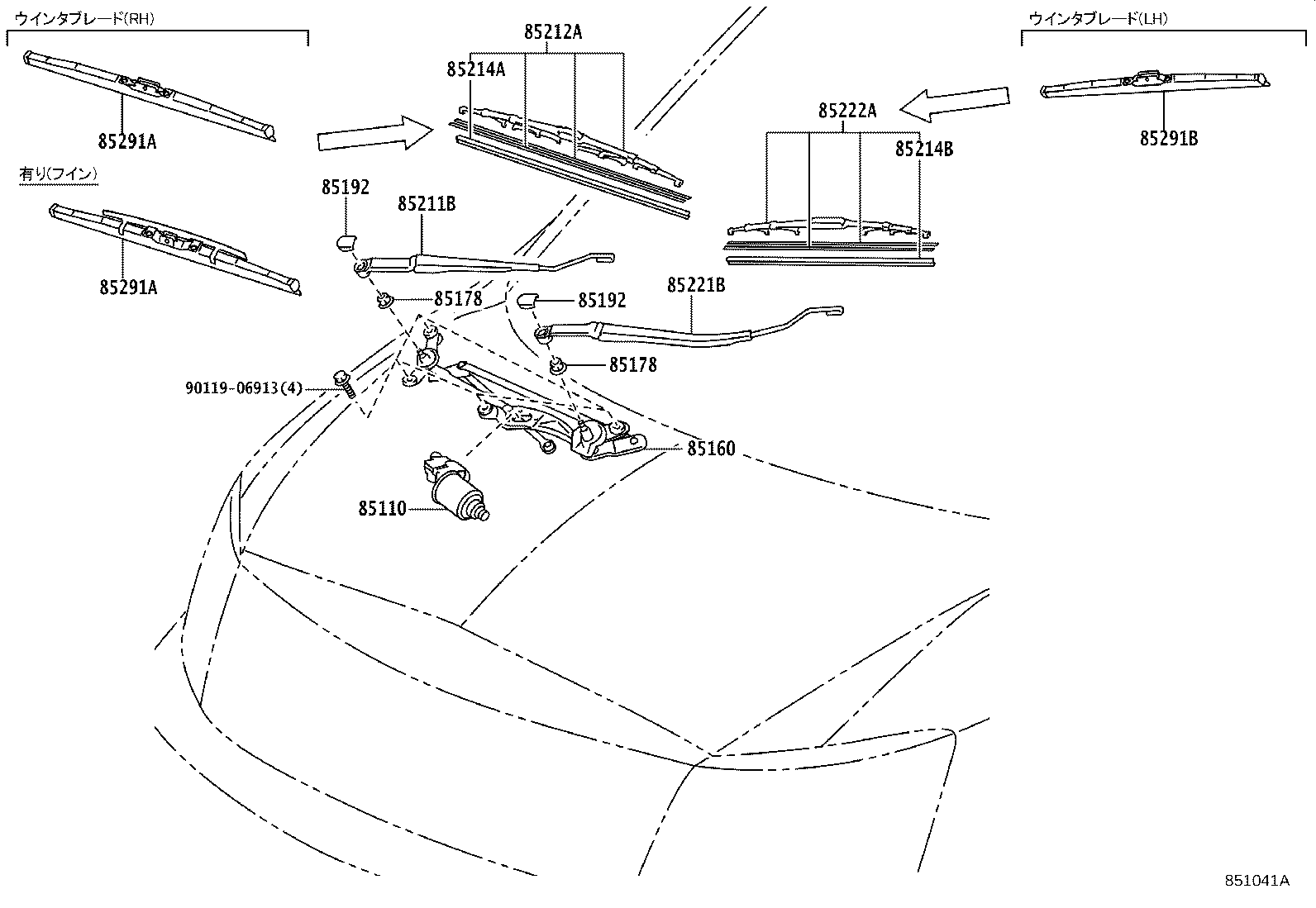

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 9011906913
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-58010

ANH1#,MNH1#

 1
85110-58020

ANH1#,MNH1#

寒冷地仕様

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-58020

ANH1#,MNH1#..4FC

寒冷地仕様

 1
85150-58010

ANH1#,MNH1#

 1
85150-58021

ANH1#,MNH1#

寒冷地仕様

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

ANH1#,MNH1#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

ANH1#,MNH1#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ANH1#,MNH1#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ANH1#,MNH1#

 2
85211B - ARM, FRONT WIPER, RH
85211-58010

ANH1#,MNH1#

 1
85212A - BLADE, FR WIPER, RH
85212-58020

ANH1#,MNH1#

 1
85214A - RUBBER, WIPER, RH
85214-44130

ANH1#,MNH1#

 1
85214B - RUBBER, WIPER, LH
85214-50130

ANH1#,MNH1#

 1
85221B - ARM, FRONT WIPER, LH
85221-58010

ANH1#,MNH1#

 1
85221-58030

ANH1#,MNH1#

寒冷地仕様

 1
85222A - BLADE, FR WIPER, LH
85222-58020

ANH1#,MNH1#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44090

ANH1#,MNH1#

寒冷地仕様

 1
85291-44070

ANH1#,MNH1#

寒冷地仕様

 1
85291-44070

ANH1#,MNH1#

 1
85291-44090

ANH1#,MNH1#

有り(ﾌｨﾝ)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-44090

ANH1#,MNH1#

寒冷地仕様

 1
85291-44070

ANH1#,MNH1#

寒冷地仕様

 1
85291-44070

ANH1#,MNH1#

 1
85291-44090

ANH1#,MNH1#

有り(ﾌｨﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44080

ANH1#,MNH1#

寒冷地仕様

 2
Common parts
90119-06913
