ANH15W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205-0504)ANH1#

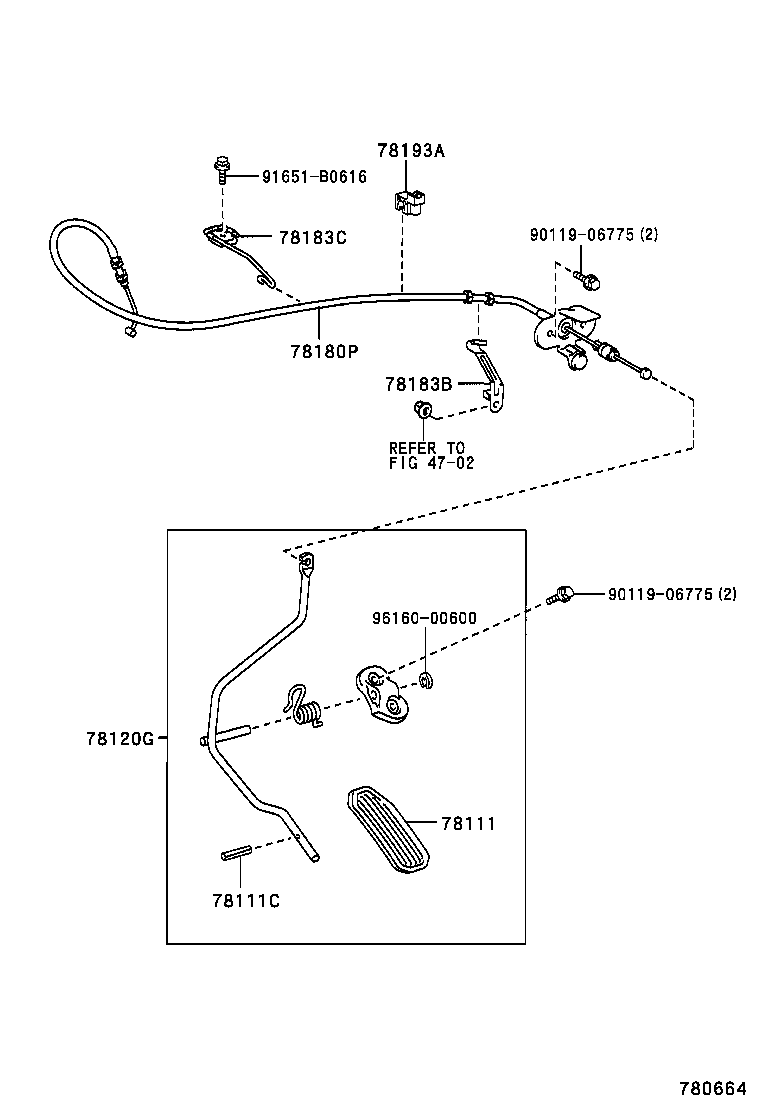

Click highlighted areas on diagram

diagram 4702 78111 78111C 78120G 78180P 78183B 78183C 78193A 9011906775 9011906775 91651B0616 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-32020

ANH1#,MNH1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04034

ANH1#,MNH1#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-58020

ANH1#,MNH1#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-58020

ANH1#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-58010

ANH1#,MNH1#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-58020

ANH1#

 1
78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78193-28010

ANH1#

 1
Common parts
90119-06775
91651-B0616
96160-00600
Linked diagrams
4702
