ANH15W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

Click highlighted areas on diagram

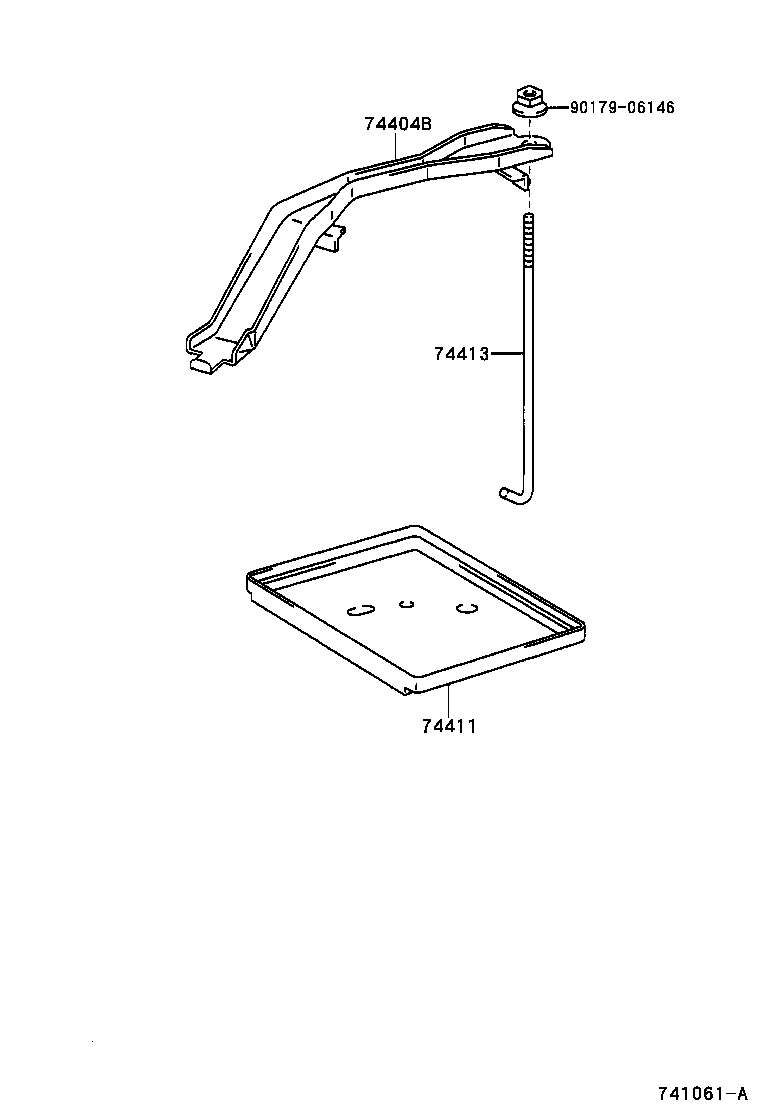

diagram 74404B 74411 74413 9017906146
Part # Description Qty Price
74404B - CLAMP SUB-ASSY, BATTERY
74404-58010

ANH1#

寒冷地仕様

 1
74404-58020

ANH1#

 1
74411 - CARRIER, BATTERY
74431-28010

ANH1#

寒冷地仕様

 1
74431-20090

ANH1#

 1
74413 - BOLT, BATTERY CLAMP
74451-58010

ANH1#,MNH1#..4FC

 1
74451-58011

ANH1#,MNH1#

 1
Common parts
90179-06146
