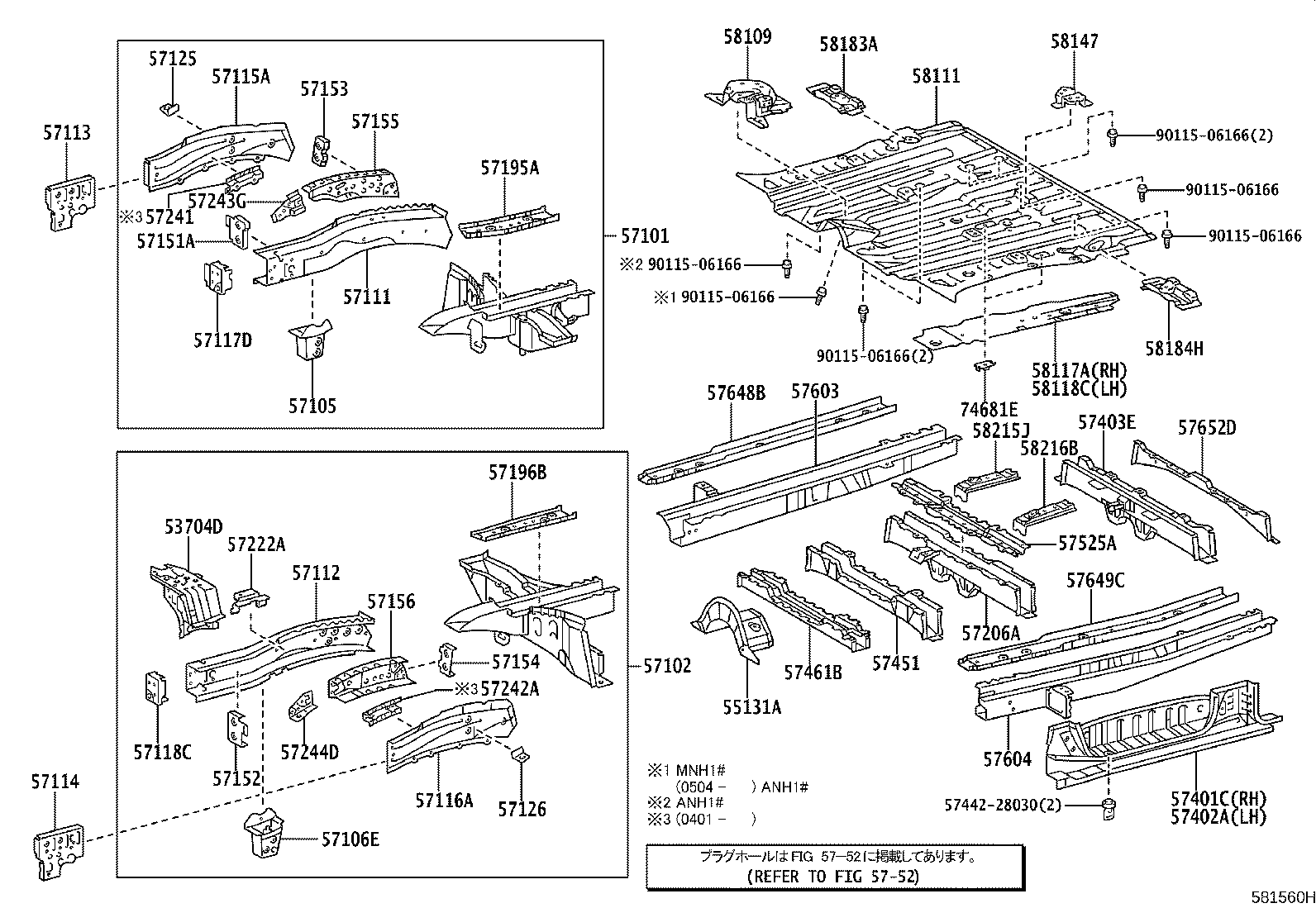

ANH15W-PRPSK (2002)
Toyota Alphard G/V
(0205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-58010 |
ANH1#,MNH1# |
1 | ||
| 55131A - REINFORCEMENT, DASH PANEL | ||||
| 55131-58010 |
ANH1#,MNH1# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-58010 |
ANH1#,MNH1# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-58010 |
ANH1#,MNH1# |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-28120 |
ANH1#,MNH1# |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-28120 |
ANH1#,MNH1# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-28230 |
ANH1#,MNH1# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-28260 |
ANH1#,MNH1# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-58020 |
ANH1#,MNH1# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-28070 |
ANH1#,MNH1# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-28090 |
ANH1#,MNH1# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-28090 |
ANH1#,MNH1# |
1 | ||
| 57117D - RETAINER, FRONT BUMPER ARM, RH | ||||
| 57117-58010 |
ANH1#,MNH1# |
1 | ||
| 57118C - RETAINER, FRONT BUMPER ARM, LH | ||||
| 57118-58010 |
ANH1#,MNH1# |
1 | ||
| 57125 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57249-10040 |
ANH1#,MNH1# |
1 | ||
| 57126 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57249-10040 |
ANH1#,MNH1# |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-28120 |
ANH1#,MNH1# |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-28120 |
ANH1#,MNH1# |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-28080 |
ANH1#,MNH1# |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-28080 |
ANH1#,MNH1# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-28070 |
ANH1#,MNH1# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-28080 |
ANH1#,MNH1# |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-58010 |
ANH1#,MNH1# |
1 | ||
| 57196B - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-58010 |
ANH1#,MNH1# |
1 | ||
| 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 | ||||
| 57206-58020 |
ANH15,MNH15 |
1 | ||
| 57241 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH | ||||
| 57241-28080 |
ANH1#,MNH1# |
1 | ||
| 57242A - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH | ||||
| 57242-28050 |
ANH1#,MNH1# |
1 | ||
| 57243G - REINFORCEMENT, FRONT SIDE MEMBER, NO.6 RH | ||||
| 57243-28070 |
ANH1#,MNH1# |
1 | ||
| 57244D - REINFORCEMENT, FRONT SIDE MEMBER, NO.6 LH | ||||
| 57244-28040 |
ANH1#,MNH1# |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-58010 |
ANH1#,MNH1# |
1 | ||
| 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-58010 |
ANH1#,MNH1# |
1 | ||
| 57403E - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 | ||||
| 57403-58020 |
ANH15,MNH15 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-58010 |
ANH1#,MNH1# |
1 | ||
| 57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-58020 |
ANH1#,MNH1# |
1 | ||
| 57525A - PLATE, CENTER FLOOR, NO.1 | ||||
| 57525-58010 |
ANH1#,MNH1# |
1 | ||
| 57603 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57603-58010 |
ANH1#,MNH1# |
1 | ||
| 57604 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57604-58020 |
ANH1#,MNH1# |
1 | ||
| 57648B - REINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH | ||||
| 57648-58010 |
ANH1#,MNH1# |
1 | ||
| 57649C - REINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH | ||||
| 57649-58010 |
ANH1#,MNH1# |
1 | ||
| 57652D - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-58010 |
ANH1#,MNH1# |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-58010 |
ANH1#,MNH1# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-58020 |
ANH1#,MNH1#..4FC ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 58111-58020 |
ANH1#,MNH1#..4FC ﾅﾋﾞｹﾞｰｼｮﾝ有り |
1 | ||
| 58111-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
1 | ||
| 58111-58010 |
ANH1#,MNH1# |
1 | ||
| 58111-58020 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-58010 |
ANH1#,MNH1# |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-58010 |
ANH1#,MNH1# |
1 | ||
| 58147 - BRACKET, FRONT FLOOR HOUSING, FRONT LH | ||||
| 58147-28010 |
ANH15,MNH15 |
1 | ||
| 58183A - RETAINER, SEAT RAIL, REAR RH | ||||
| 58183-58010 |
ANH1#,MNH1# |
1 | ||
| 58184H - RETAINER, SEAT RAIL, REAR LH | ||||
| 58184-58010 |
ANH1#,MNH1# |
1 | ||
| 58215J - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-58010 |
ANH1#,MNH1# |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-58010 |
ANH1#,MNH1# |
1 | ||
| 74681E - RETAINER, NAVIGATION ECU | ||||
| 74681-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(6ｽﾋﾟｰｶ) |
2 | ||
| 74681-58010 |
ANH1#,MNH1#..4FC ﾅﾋﾞｹﾞｰｼｮﾝ有り |
2 | ||
| 74681-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ(10ｽﾋﾟｰｶ) |
2 | ||
| 74681-58010 |
ANH1#,MNH1#..4FC ﾅﾋﾞｹﾞｰｼｮﾝ有り |
2 | ||
| Common parts | ||||
| 57442-28030 | ||||
| 90115-06166 | ||||
| Linked diagrams | ||||
| 5752 | ||||
