ANH15W-PRPSK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )2AZFE

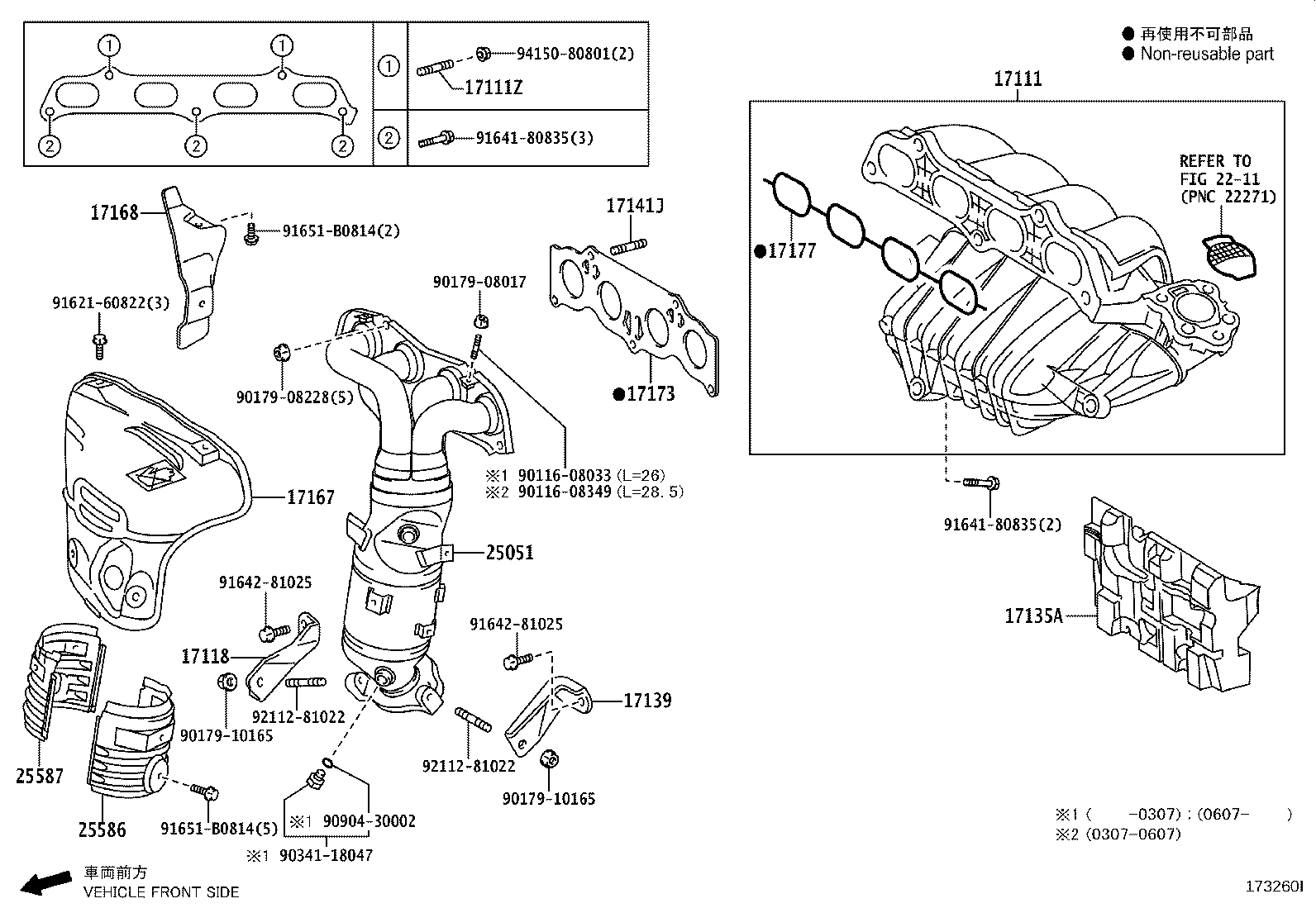

Click highlighted areas on diagram

diagram 17111 17111Z 17118 17135A 17139 17141J 17167 17168 17173 17177 2211 25051 25586 25587 9011608033 9011608349 9017908017 9017908228 9017910165 9017910165 9034118047 9090430002 9162160822 9164180835 9164180835 9164281025 9164281025 91651B0814 91651B0814 9211281022 9211281022 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-28010

2AZFE..ANH1#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

2AZFE..ANH1#

 2
17118 - STAY, MANIFOLD
17118-28020

2AZFE..ANH1#

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-28010

2AZFE..ANH1#

 1
17139 - STAY, MANIFOLD, NO.2
17139-28010

2AZFE..ANH1#

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08037

2AZFE..ANH1#

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-28040

2AZFE..ANH1#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-28011

2AZFE..ANH1#

 1
17168-28010

2AZFE..ANH1#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-28010

2AZFE..ANH1#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-28010

2AZFE..ANH1#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-28170

2AZFE..ANH1#

 1
25051-28190

2AZFE..ANH1#

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-28031

2AZFE..ANH1#

 1
25586-28030

2AZFE..ANH1#

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-28040

2AZFE..ANH1#

 1
25587-28041

2AZFE..ANH1#

 1
Common parts
90116-08033
90116-08349
90179-08017
90179-08228
90179-10165
90341-18047
90904-30002
91621-60822
91641-80835
91642-81025
91651-B0814
92112-81022
94150-80801
Linked diagrams
2211
