ANH15W-PRPSK (2005)
Toyota Alphard G/V

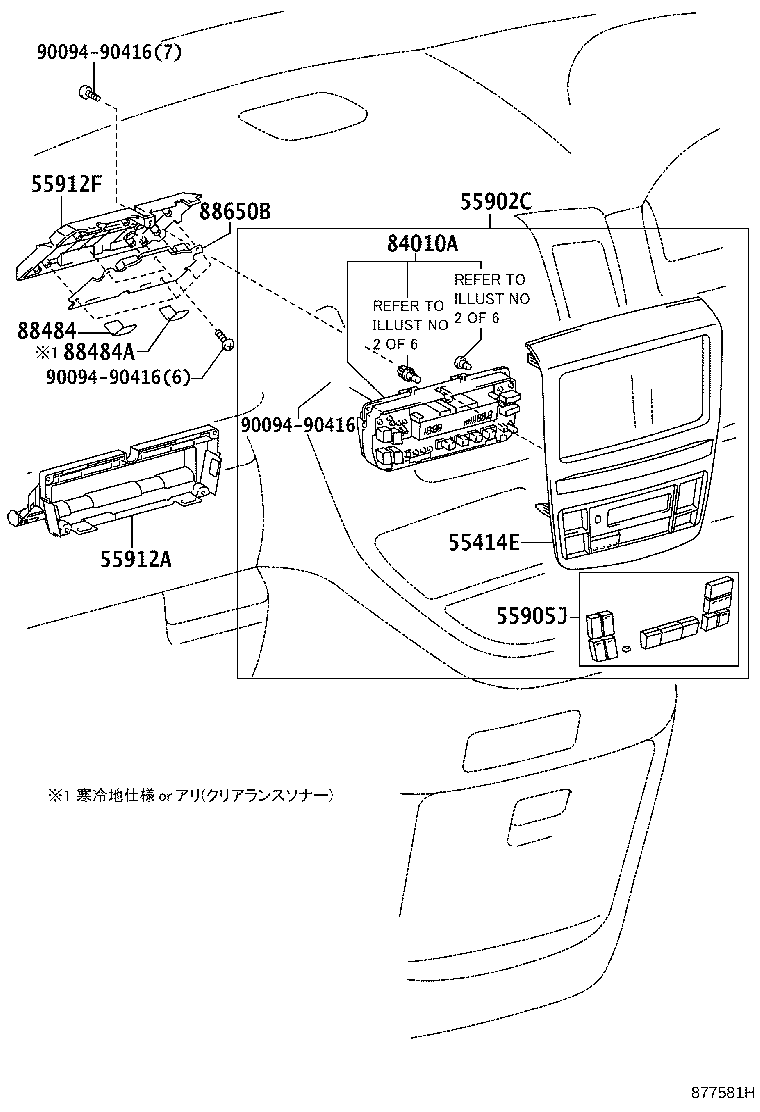

ILLUST NO. 1 OF 6(0504- )
ﾌﾛﾝﾄﾋｰﾀ ｺﾝﾄﾛｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55414E - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58030 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55414-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55414-58040 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55414-58060 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55414-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55414-58060 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58060 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58041 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58060 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58041 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58031 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55414-58061 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55414-58051 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55414-58061 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58061 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58061 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55414-58051 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55414-58051 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55902-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55902-58060 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58070 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58070 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58100 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55902-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55902-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55902-58100 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55902-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55902-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55902-58100 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55902-58100 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55902-58071 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58071 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58061 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55902-58091 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55902-58091 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55902-58101 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55902-58101 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55902-58091 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55902-58091 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55902-58101 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55902-58101 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55905-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55905-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55905-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55905-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55905-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55905-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55905-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55905-58080 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-58060 |
ANH1#,MNH1# |
1 | ||
| 55912F - HOUSING, HEATER CONTROL | ||||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55912-58030 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55912-58020 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55912-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 84012-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 84012-58080 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 84012-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 84012-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 84012-58090 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 84012-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 84012-58090 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-58040 |
ANH1#,MNH1# |
1 | ||
| 88484-58020 |
ANH1#,MNH1# |
1 | ||
| 88484A - WIRE, COOLER, NO.1 | ||||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 88484-58050 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-58030 |
ANH1#,MNH1#..4FC 寒冷地仕様 |
1 | ||
| 88650-58010 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) |
1 | ||
| 88650-58030 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58030 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88650-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88650-58140 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 88650-58140 |
ANH1#,MNH1#..AS,AX,MS,MX ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 88650-58140 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58130 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 88650-58150 |
MNH10..08S;ANH1#,MNH15;MNH10..07S..(MS,MX) 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 88650-58150 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 88650-58150 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| 88650-58150 |
MNH10..08S;ANH1#,MNH15;MNH10..07S..(MS,MX) 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 88650-58150 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ & ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58150 |
MNH10..07S..MZ;ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽｿﾅｰ有り |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||

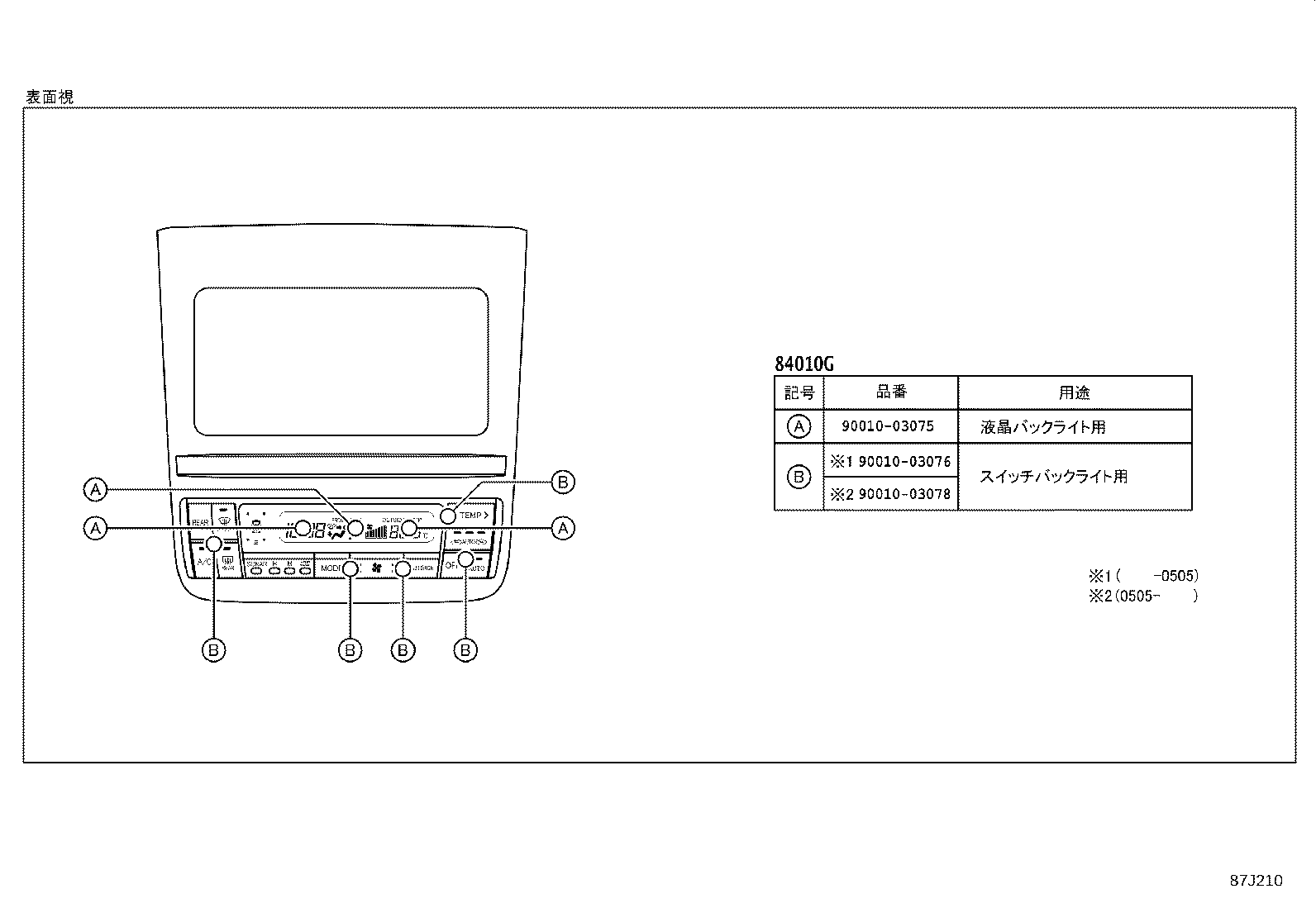

ILLUST NO. 2 OF 6(0504- )
ﾌﾛﾝﾄﾋｰﾀ ｺﾝﾄﾛｰﾙ--ﾊﾞﾙﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-03076 |
ANH1#,MNH1# 14V 0.84W,TYPE B:ｲﾗｽﾄ参照 |
7 | ||
| 90010-03076 |
ANH1#,MNH1# 14V 0.84W,TYPE B:ｲﾗｽﾄ参照 |
5 | ||
| 90010-03075 |
ANH1#,MNH1# 14V 0.84W,TYPE A:ｲﾗｽﾄ参照 |
3 | ||
| 90010-03078 |
ANH1#,MNH1# 14V 0.84W,TYPE B:ｲﾗｽﾄ参照 |
5 | ||
| 90010-03075 |
ANH1#,MNH1# 14V 0.84W,TYPE A:ｲﾗｽﾄ参照 |
3 | ||
Part Price Details
Loading price information...
Part Number:
Price:
