ANH15W-PRPSK (2005)

Toyota Alphard G/V

Production Apr 2005 - Apr 2008
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0504- )

Click highlighted areas on diagram

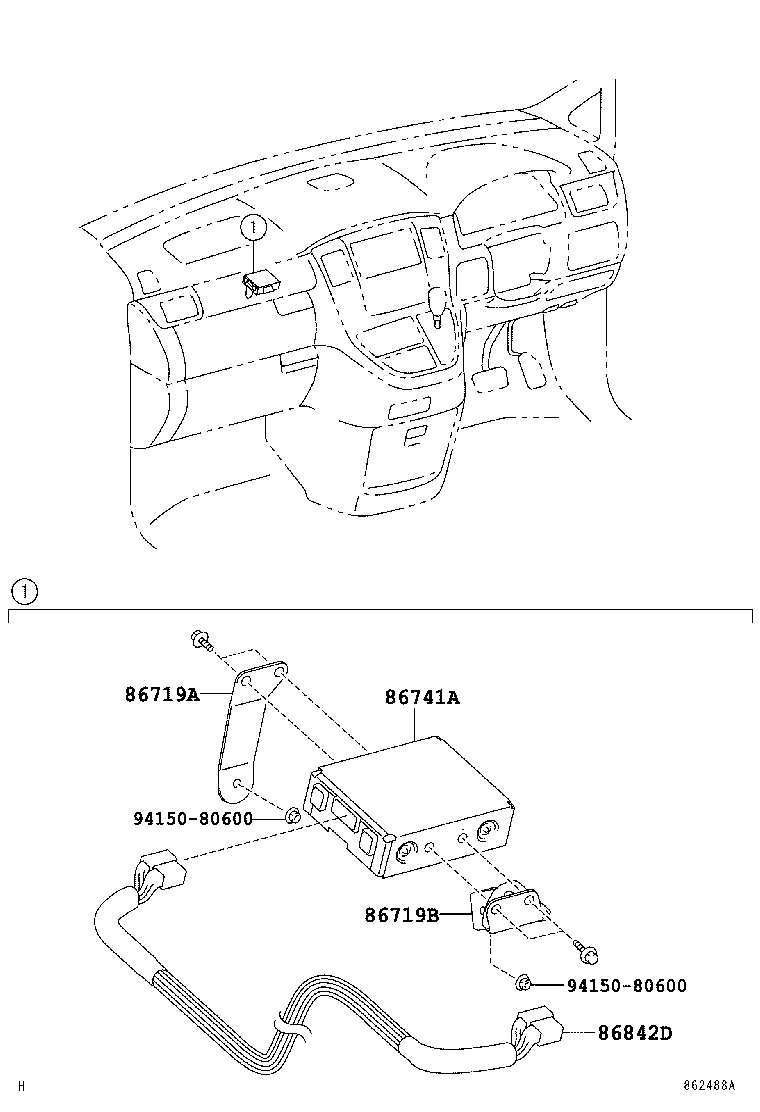

diagram 86719A 86719B 86741A 86842D 9415080600 9415080600
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-58010

ANH1#,MNH1#

GｰBOOK−有り

 1
86719B - BRACKET, TELEPHONE NO.2
86719-58020

ANH1#,MNH1#

GｰBOOK−有り

 1
86741A - TRANSCEIVER, TELEMATICS
86741-58010

ANH1#,MNH1#

GｰBOOK−有り

 1
86842D - WIRE, NAVIGATION
86842-58070

ANH1#,MNH1#

GｰBOOK−有り

 1
Common parts
94150-80600
