ANH15W-PRPSK (2005)

Toyota Alphard G/V

Production Apr 2005 - Apr 2008
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0504- )ANH1#

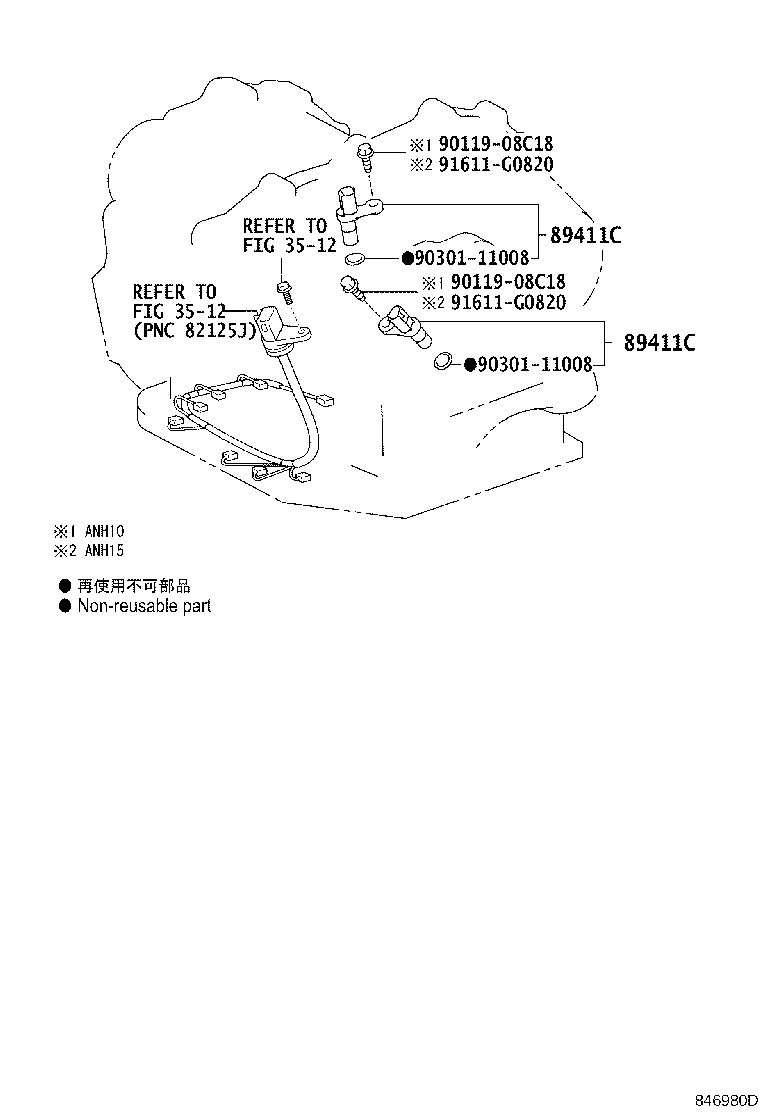

Click highlighted areas on diagram

diagram 3512 3512 89411C 89411C 9011908C18 9011908C18 9030111008 9030111008 91611G0820 91611G0820
Part # Description Qty Price
89411C - SENSOR, SPEED
89413-24010

ANH1#,MNH1#

AISIN

 2
89411-33010

ANH1#,MNH1#

TOYOTA

 2
89413-24010

ANH1#

 2
89411C - SENSOR, SPEED
89413-24010

ANH1#,MNH1#

AISIN

 2
89411-33010

ANH1#,MNH1#

TOYOTA

 2
89413-24010

ANH1#

 2
Common parts
90119-08C18
90301-11008
91611-G0820
Linked diagrams
3512
