ANH15W-PRPSK (2005)
Toyota Alphard G/V

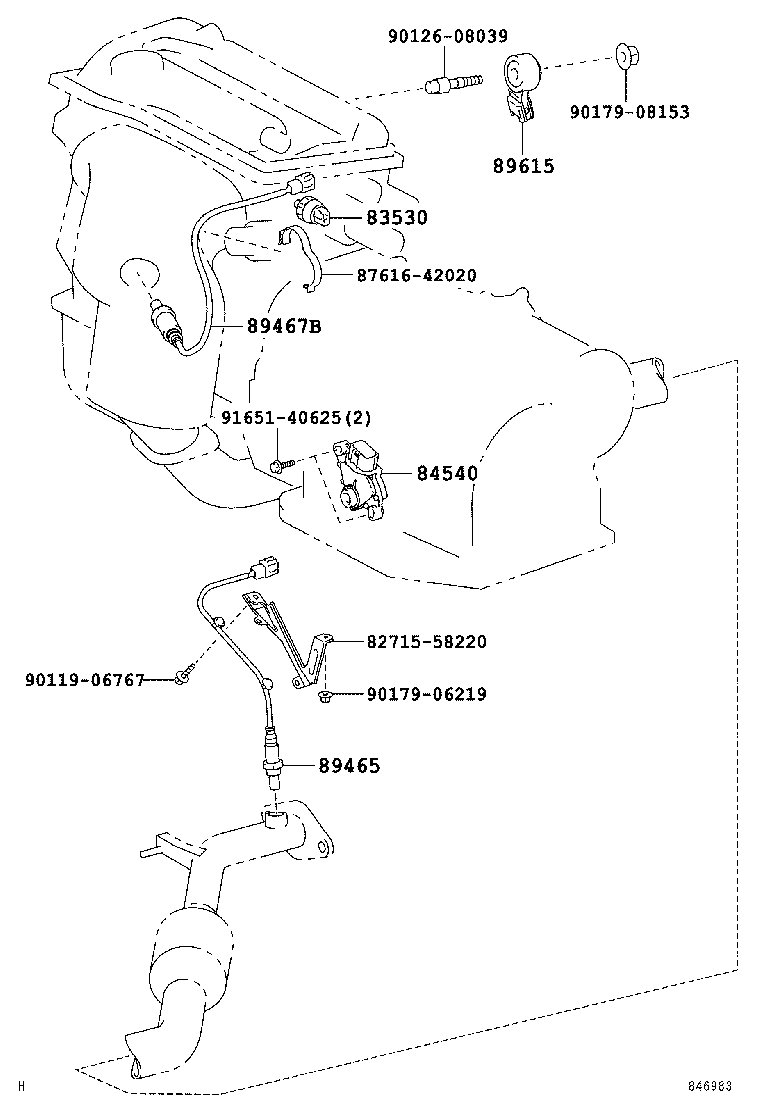

ILLUST NO. 1 OF 9(0504- )ANH1#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ANH1#,MNH1# DENSO |
1 | ||
| 83530-28020 |
ANH1#,MNH1# |
1 | ||
| 83530-60020 |
ANH1#,MNH1# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-32110 |
ANH1#,MNH1# |
1 | ||
| 84540-48010 |
ANH1#,MNH1# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-58020 |
ANH1# |
1 | ||
| 89465-58080 |
ANH15 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-58090 |
ANH1# |
1 | ||
| 89465-58010 |
ANH1# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-44010 |
ANH1# |
1 | ||
| 89615-20090 |
ANH1# |
1 | ||
| Common parts | ||||
| 82715-58220 | ||||
| 87616-42020 | ||||
| 90119-06767 | ||||
| 90126-08039 | ||||
| 90179-06219 | ||||
| 90179-08153 | ||||
| 91651-40625 | ||||

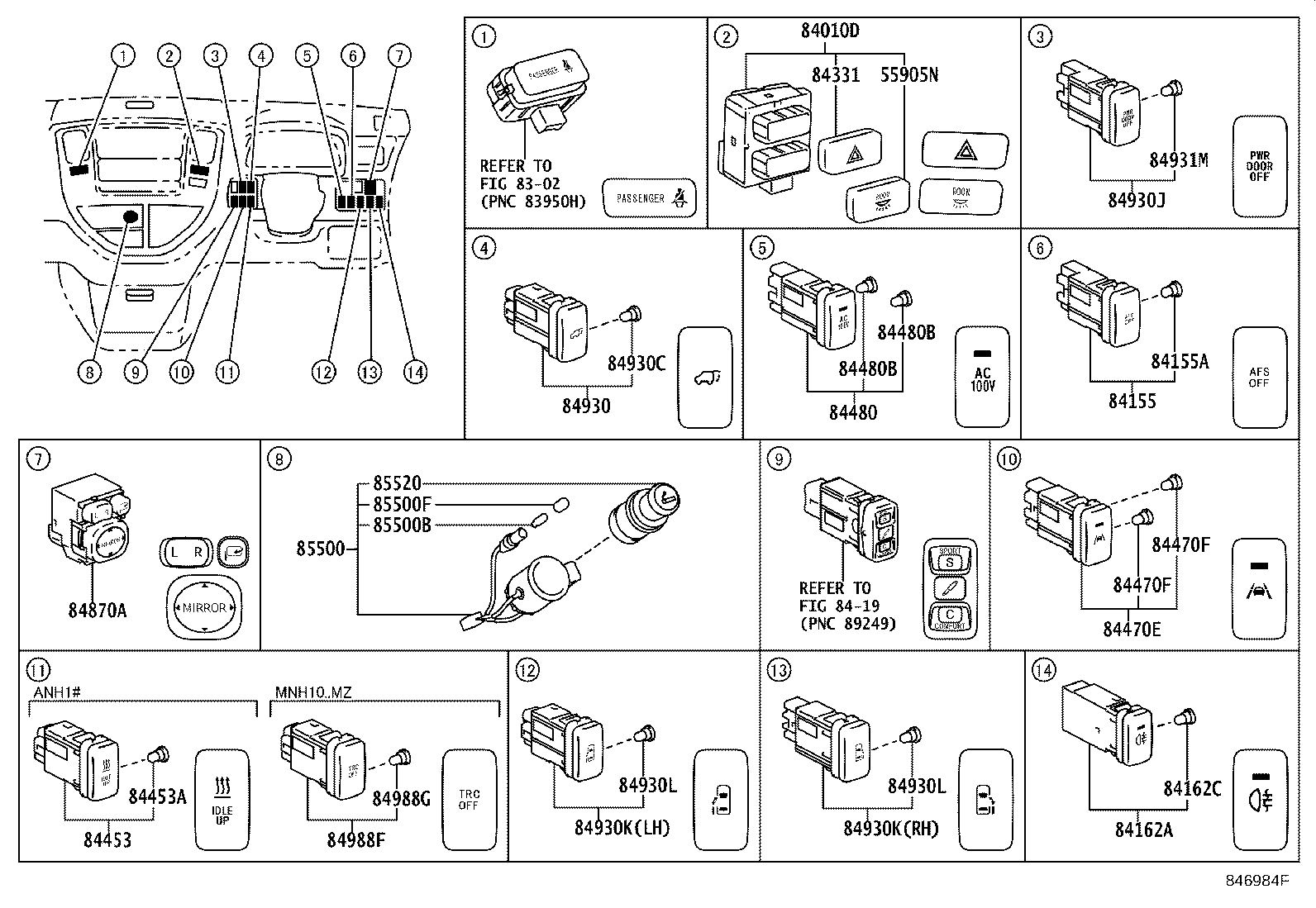

ILLUST NO. 5 OF 9(0504- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55937-58020 |
ANH1#,MNH1# |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-58040 |
ANH1#,MNH1# |
1 | ||
| 84155 - SWITCH, HEADLAMP SWIVEL MAIN | ||||
| 84155-22010 |
ANH1#,MNH1#..AS,MS,MZ |
1 | ||
| 84155A - BULB, HDEADLAMP SWIVEL MAIN SWITCH | ||||
| 90010-01062 |
ANH1#,MNH1#..AS,MS,MZ |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-52050 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 84165-33040 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-58010 |
ANH1#,MNH1# |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-44010 |
ANH1# 寒冷地仕様 |
1 | ||
| 84453-58010 |
ANH1# 寒冷地仕様 |
1 | ||
| 84453A - BULB, IDLE UP SWITCH | ||||
| 90010-01061 |
ANH1# 寒冷地仕様 |
1 | ||
| 90010-01061 |
ANH1# 寒冷地仕様 |
1 | ||
| 84470E - SWITCH ASSY, LANE MONITORING MAIN | ||||
| 84470-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 84470-58010 |
ANH1#,MNH1#..4FC ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 84470-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 84470-58010 |
ANH1#,MNH1#..4FC ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 84470F - BULB, LANE MONITORING MAIN SWITCH | ||||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟ[ｶ |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ[有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰJ |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 84470F - BULB, LANE MONITORING MAIN SWITCH | ||||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1#..4FC 14V 0.63W,ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟ[ｶ |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..4FC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ[有り |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 90010-01061 |
ANH1#,MNH1# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰJ |
1 | ||
| 90010-01089 |
ANH1#,MNH1# 14V 0.63W,ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-44010 |
ANH1#,MNH1#..4FC ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 84480-44010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 84480-44010 |
ANH1#,MNH1#..08S..(AS,MS) ｵｰﾃﾞｨｵ−ﾃﾞｭｱﾙﾋﾞｭｰ |
1 | ||
| 84480-44010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
ANH1#,MNH1#..4FC 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個j |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..4FC 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100u=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 84999-10310 |
ANH1#,MNH1#..08S..(AS,MS) 14V 0.91W,ｵｰﾃﾞｨｵ−ﾃﾞｭｱﾙﾋﾞｭｰ |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾃﾞｭｱﾙﾋﾞｭｰ |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰJ |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟ[ｶ |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
ANH1#,MNH1#..4FC 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100V=ｲﾝﾊﾞｰﾀ付/2個j |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..4FC 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−有り(AC100u=ｲﾝﾊﾞｰﾀ付/2個) |
1 | ||
| 84999-10310 |
ANH1#,MNH1#..08S..(AS,MS) 14V 0.91W,ｵｰﾃﾞｨｵ−ﾃﾞｭｱﾙﾋﾞｭｰ |
1 | ||
| 90010-01062 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾃﾞｭｱﾙﾋﾞｭｰ |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 84999-10310 |
ANH1#,MNH1# 14V 0.91W,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰJ |
1 | ||
| 90010-01062 |
ANH1#,MNH1# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟ[ｶ |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
ANH1#,MNH1# |
1 | ||
| 84872-52040 |
ANH1#,MNH1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-58040 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90010-01062 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)父pﾜｰﾊﾞｯｸﾄﾞｱ有り |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-58030 |
ANH1#,MNH1#..AS,MS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58030 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り |
1 | ||
| 84930-58030 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り |
1 | ||
| 84930-58030 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,左側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,右側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,右側 |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り,左側 |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,左側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り,右側 |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,左側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,右側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..AS,AX,MS,MX ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り,右側 |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り,左側 |
1 | ||
| 84930-58021 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り,左側 |
1 | ||
| 84930-28080 |
ANH1#,MNH1#..08S..(AS,MS) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り,右側 |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)父oｯｸﾄﾞｱｸﾛｰｻﾞ有り |
2 | ||
| 90010-01062 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)父pﾜｰﾊﾞｯｸﾄﾞｱ有り |
2 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
2 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)父oｯｸﾄﾞｱｸﾛｰｻﾞ有り |
2 | ||
| 90010-01062 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)父pﾜｰﾊﾞｯｸﾄﾞｱ有り |
2 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
2 | ||
| 84931M - BULB, DOOR CONTROL SWITCH | ||||
| 90010-01061 |
ANH1#,MNH1#..AS,MS 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..AS,AX,MS,MX 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)Lり |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)父oｯｸﾄﾞｱｸﾛｰｻﾞ有り |
1 | ||
| 90010-01061 |
ANH1#,MNH1#..08S..(AS,MS) 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)父pﾜｰﾊﾞｯｸﾄﾞｱ有り |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-24050 |
ANH1#,MNH1# |
1 | ||
| 85500-24050 |
ANH1#,MNH1# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
ANH1#,MNH1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
ANH1#,MNH1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
ANH1#,MNH1# |
1 | ||
| 84998-10510 |
ANH1#,MNH1# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
ANH1#,MNH1# |
1 | ||
| 85520-89101 |
ANH1#,MNH1# |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8419 | ||||
