ANH15W-PRPSK (2005)

Toyota Alphard G/V

Production Apr 2005 - Apr 2008
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

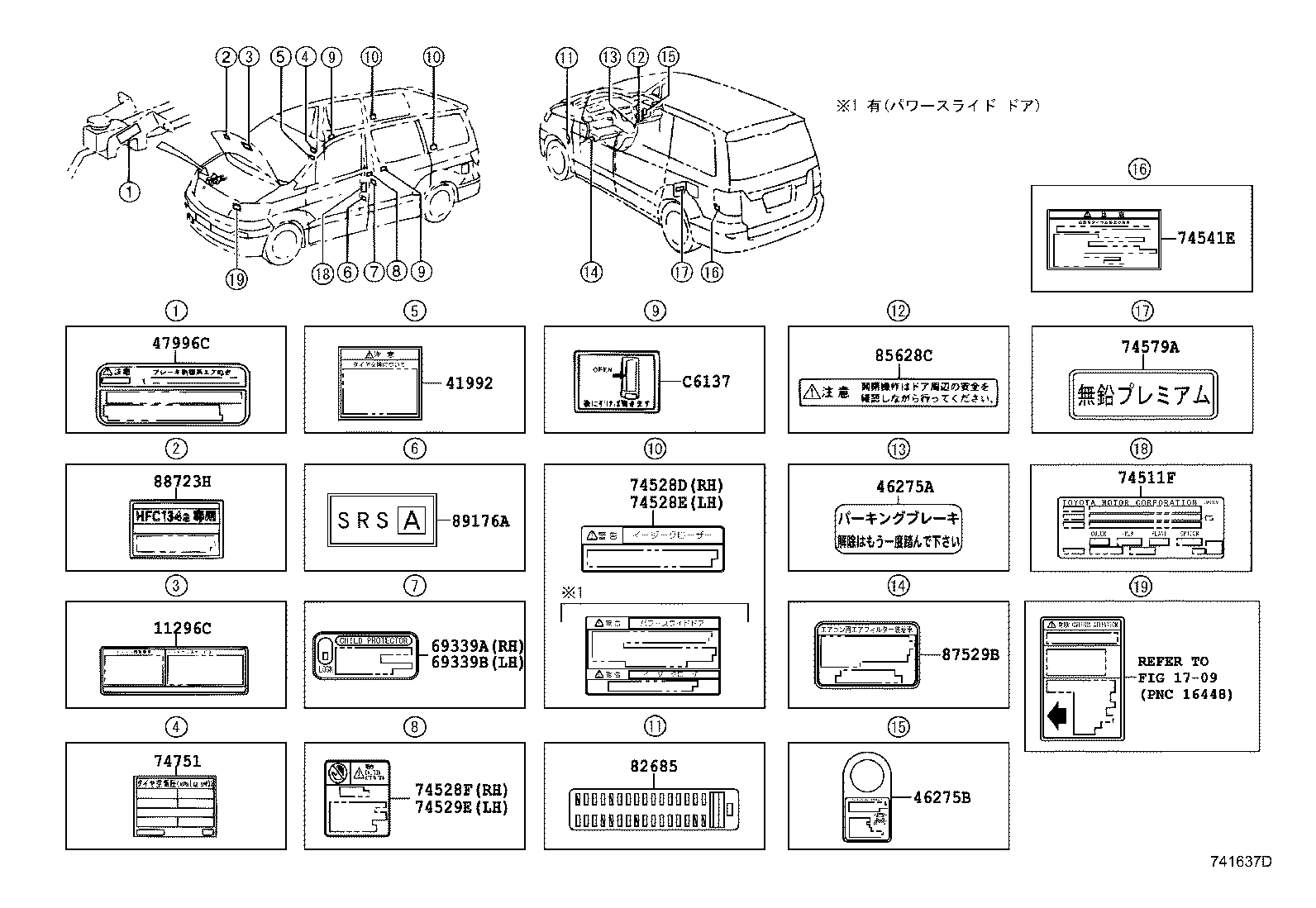

ILLUST NO. 1 OF 2(0504- )

Click highlighted areas on diagram

diagram 11296C 1709 41992 46275A 46275B 47996C 69339A 69339B 74511F 74528D 74528E 74528F 74529E 74541E 74579A 74751 82685 85628C 87529B 88723H 89176A C6137
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-28011

2AZFE..ANH1#

 1
11296-28012

2AZFE..ANH1#

 1
41992 - LABEL, DIFFERENTIAL NOTICE
41992-33010

ANH15,MNH15

 1
41992-33010

ANH15,MNH15

 1
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-33010A0

ANH1#,MNH1#..AS,MS

WHITE,TRIM1#

 1
46275-33010A0

ANH1#,MNH1#..08S..(AS,MS)

WHITE,TRIM0#,1#

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

ANH1#,MNH1#

 1
46275-47010

ANH1#,MNH1#

 1
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-20030

ANH1#,MNH1#

 1
69339-20030

ANH1#,MNH1#

 1
69339B - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-20030

ANH1#,MNH1#

 1
69339-20030

ANH1#,MNH1#

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

ANH1#,MNH1#

*111

 1
74528D - LABEL, POWER SLIDE DOOR NOTICE
74528-28110

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-28090

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-26080

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-28140

ANH1#,MNH1#..AS,AX,MS,MX

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り

 1
74528-28141

ANH1#,MNH1#..AS,AX,MS,MX

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り

 1
74528-26080

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-28141

ANH1#,MNH1#..08S..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り

 1
74528-28141

ANH1#,MNH1#..08S..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り

 1
74528E - LABEL, POWER SLIDE DOOR NOTICE
74528-28080

ANH1#,MNH1#..AS,MS

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り

 1
74528-28110

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-28141

ANH1#,MNH1#..AS,AX,MS,MX

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り

 1
74528-28140

ANH1#,MNH1#..AS,AX,MS,MX

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)有り

 1
74528-26080

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-28090

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-26080

ANH1#,MNH1#..AS,AX,MS,MX

 1
74528-28141

ANH1#,MNH1#..08S..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り

 1
74528-28141

ANH1#,MNH1#..08S..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り

 1
74528F - LABEL, DOOR CLOSER CAUTION, RH
74541-28060

ANH1#,MNH1#

 1
74541-26060

ANH1#,MNH1#

 1
74529E - LABEL, DOOR CLOSER CAUTION, LH
74541-28060

ANH1#,MNH1#

 1
74541-26060

ANH1#,MNH1#

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060

ANH1#,MNH1#

 1
42668-28060

ANH1#,MNH1#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-58020

ANH1#,MNH1#..AS,MS

 1
42661-58020

ANH1#,MNH1#..AS,MS

 1
82685 - PLATE, CAUTION
82683-58010

ANH1#,MNH1#

 1
82683-58010

ANH1#,MNH1#

 1
85628C - LABEL, AUTOMATIC DOOR
85628-58010

ANH1#,MNH1#..08S..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り

 1
85628-26011

ANH1#,MNH1#..4FC..(AS,AX,MS,MX)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(助手席側)有り

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

ANH1#,MNH1#

 1
87529-50020

ANH1#,MNH1#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88733-58020

ANH1#,MNH1#

 1
88733-58020

ANH1#,MNH1#

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

ANH1#,MNH1#

 1
89176-32010

ANH1#,MNH1#

 1
Linked diagrams
1709

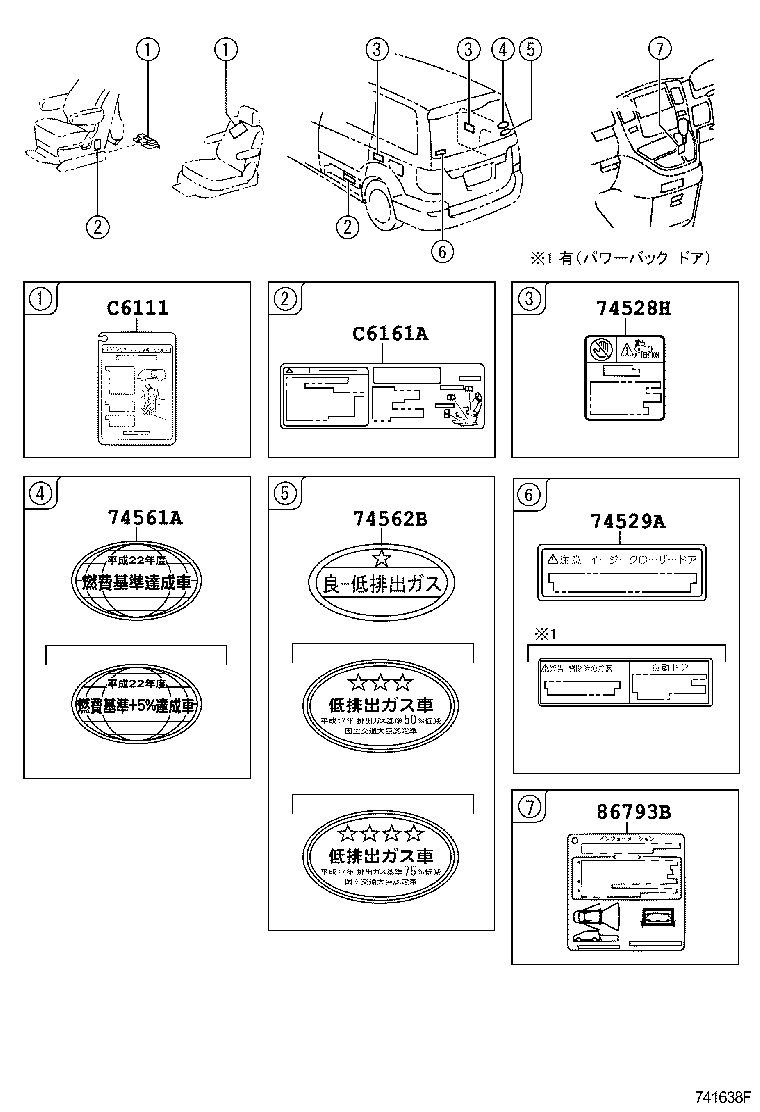

ILLUST NO. 2 OF 2(0504- )

Click highlighted areas on diagram

diagram 74528H 74529A 74561A 74562B 86793B C6111 C6161A
Part # Description Qty Price
74528H - LABEL, POWER SLIDE DOOR CAUTION
74541-26060

ANH1#,MNH1#

 1
74529A - PLATE, BACK DOOR CAUTION
74529-44010

ANH1#,MNH1#..08S..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ有り

 1
74528-58020

ANH1#,MNH1#..08S..(AS,MS)

LIMITED *(E),*(I)/AVN ｽﾍﾟｼｬﾙ *(D),*(J)

 1
74528-58020

ANH1#,MNH1#..08S..(AS,MS)

ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ(運転席側,助手席側)&ﾊﾞｯｸﾄﾞｱｸﾛｰｻﾞ有り

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52020

ANH1#

 1
74561-52020

ANH1#

指定自動車適合−排ｶﾞｽ検査修了書

 1
74562B - LABEL, EMISSION INFORMATION
74562-40050

ANH1#

 1
74562-47010

ANH1#

 1
86793B - LABEL, TELEVISION CAMERA INFORMATION
86793-52010

ANH1#,MNH1#..08S..(AS,MS)

LIMITED *(E),*(I)/AVN ｽﾍﾟｼｬﾙ *(D),*(J)&ﾊﾞｯｸﾓﾆﾀｰ−有り(音声ｶﾞｲﾄﾞ 無し)

 1
