ANH15W-PRPSK (2005)
Toyota Alphard G/V

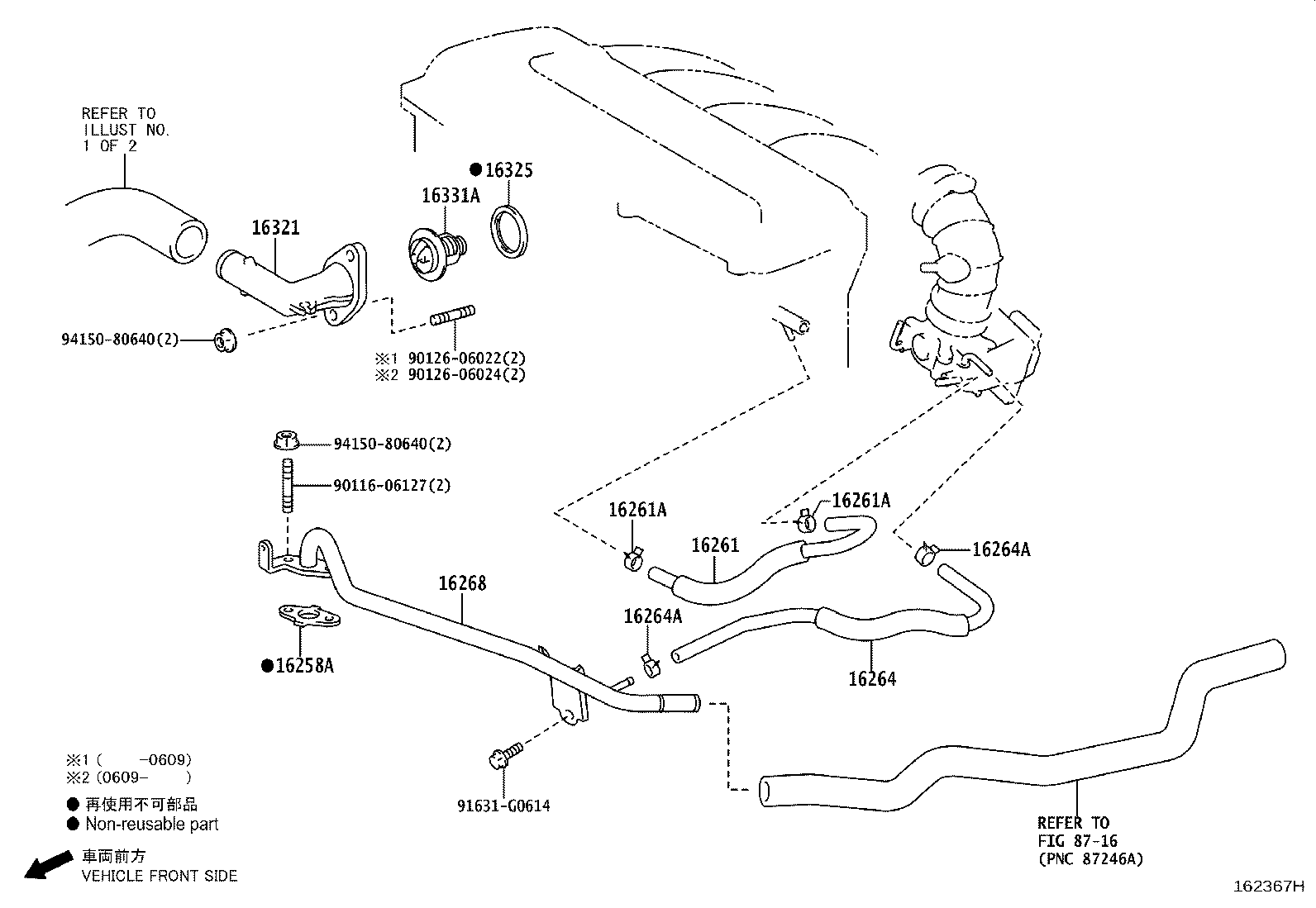

ILLUST NO. 2 OF 2(0504- )2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-28010 |
2AZFE..ANH1# |
1 | ||
| 16258-28030 |
2AZFE..ANH1# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-28050 |
2AZFE..ANH1# |
1 | ||
| 16261-28020 |
2AZFE..ANH1# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2AZFE..ANH1# |
2 | ||
| 96135-51300 |
2AZFE..ANH1# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2AZFE..ANH1# |
2 | ||
| 96135-51300 |
2AZFE..ANH1# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28020 |
2AZFE..ANH1# |
1 | ||
| 16264-28060 |
2AZFE..ANH1# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..ANH1# |
2 | ||
| 96135-41300 |
2AZFE..ANH1# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..ANH1# |
2 | ||
| 96135-41300 |
2AZFE..ANH1# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-28010 |
2AZFE..ANH1# |
1 | ||
| 16268-28010 |
2AZFE..ANH1# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-28010 |
2AZFE..ANH1# |
1 | ||
| 16321-28010 |
2AZFE..ANH1# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2AZFE..ANH1# |
1 | ||
| 16325-28010 |
2AZFE..ANH1# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
2AZFE..ANH1# *WAX 82−95 |
1 | ||
| 90916-03129 |
2AZFE..ANH1# *WAX 82−95 |
1 | ||
| 90916-03136 |
2AZFE..ANH1# *WAX 82−95 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90126-06022 | ||||
| 90126-06024 | ||||
| 91631-G0614 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0504- )2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-28610 |
2AZFE..ANH1# |
1 | ||
| 16041-28370 |
2AZFE..ANH1# |
1 | ||
| 16361 - FAN | ||||
| 16361-28040 |
2AZFE..ANH1# |
1 | ||
| 16361-28040 |
2AZFE..ANH1# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28090 |
2AZFE..ANH1# |
1 | ||
| 16361-28090 |
2AZFE..ANH1# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28020 |
2AZFE..ANH1# |
1 | ||
| 16363-28020 |
2AZFE..ANH1# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-23010 |
2AZFE..ANH1# |
1 | ||
| 16363-23010 |
2AZFE..ANH1# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2AZFE..ANH1# |
1 | ||
| 90910-09054 |
2AZFE..ANH1# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2AZFE..ANH1# |
1 | ||
| 96711-19007 |
2AZFE..ANH1# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2AZFE..ANH1# |
1 | ||
| 16401-72090 |
2AZFE..ANH1# |
1 | ||
| 16417 - COCK | ||||
| 16417-28530 |
2AZFE..ANH1# |
1 | ||
| 16418 - PACKING | ||||
| 16418-20290 |
2AZFE..ANH1# |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-28370 |
2AZFE..ANH1# NO.1 |
1 | ||
| 16431-28610 |
2AZFE..ANH1# NO.1 |
1 | ||
| 16431-28620 |
2AZFE..ANH1# NO.2 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-28370 |
2AZFE..ANH1# NO.1 |
1 | ||
| 16431-28610 |
2AZFE..ANH1# NO.1 |
1 | ||
| 16431-28620 |
2AZFE..ANH1# NO.2 |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-31480 |
2AZFE..ANH1# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2AZFE..ANH1# |
1 | ||
| 90467-11085 |
2AZFE..ANH1# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-20070 |
2AZFE..ANH1# |
1 | ||
| 16405-20071 |
2AZFE..ANH1# |
1 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-20300 |
2AZFE..ANH1# |
2 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-20300 |
2AZFE..ANH1# |
2 | ||
| 16505C - SUPPORT SUB-ASSY, RADIATOR, UPPER LH | ||||
| 16505-20030 |
2AZFE..ANH1# |
1 | ||
| 16506-20070 |
2AZFE..ANH1# |
1 | ||
| 16506C - SUPPORT SUB-ASSY, RADIATOR, LOWER LH | ||||
| 16506-20020 |
2AZFE..ANH1# |
1 | ||
| 16505-20110 |
2AZFE..ANH1# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28010 |
2AZFE..ANH1# |
2 | ||
| 16523-28010 |
2AZFE..ANH1# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64120 |
2AZFE..ANH1# |
2 | ||
| 16535-64120 |
2AZFE..ANH1# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-28180 |
2AZFE..ANH1# |
1 | ||
| 16571-28180 |
2AZFE..ANH1# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
2AZFE..ANH1# |
2 | ||
| 90467-37008 |
2AZFE..ANH1# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
2AZFE..ANH1# |
2 | ||
| 90467-37008 |
2AZFE..ANH1# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-28130 |
2AZFE..ANH1# |
1 | ||
| 16572-28131 |
2AZFE..ANH1# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
2AZFE..ANH1# |
2 | ||
| 90467-37008 |
2AZFE..ANH1# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
2AZFE..ANH1# |
2 | ||
| 90467-37008 |
2AZFE..ANH1# |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-28250 |
2AZFE..ANH1# |
1 | ||
| 16711-28380 |
2AZFE..ANH1# |
1 | ||
| Common parts | ||||
| 90068-04036 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90119-08511 | ||||
| 90467-16022 | ||||
| 91511-80614 | ||||
| 91651-B0616 | ||||
| 93385-16012 | ||||
| 93385-16014 | ||||
| Linked diagrams | ||||
| 1104 | ||||
