ANH15W-PRPGK (2005)
Toyota Alphard G/V

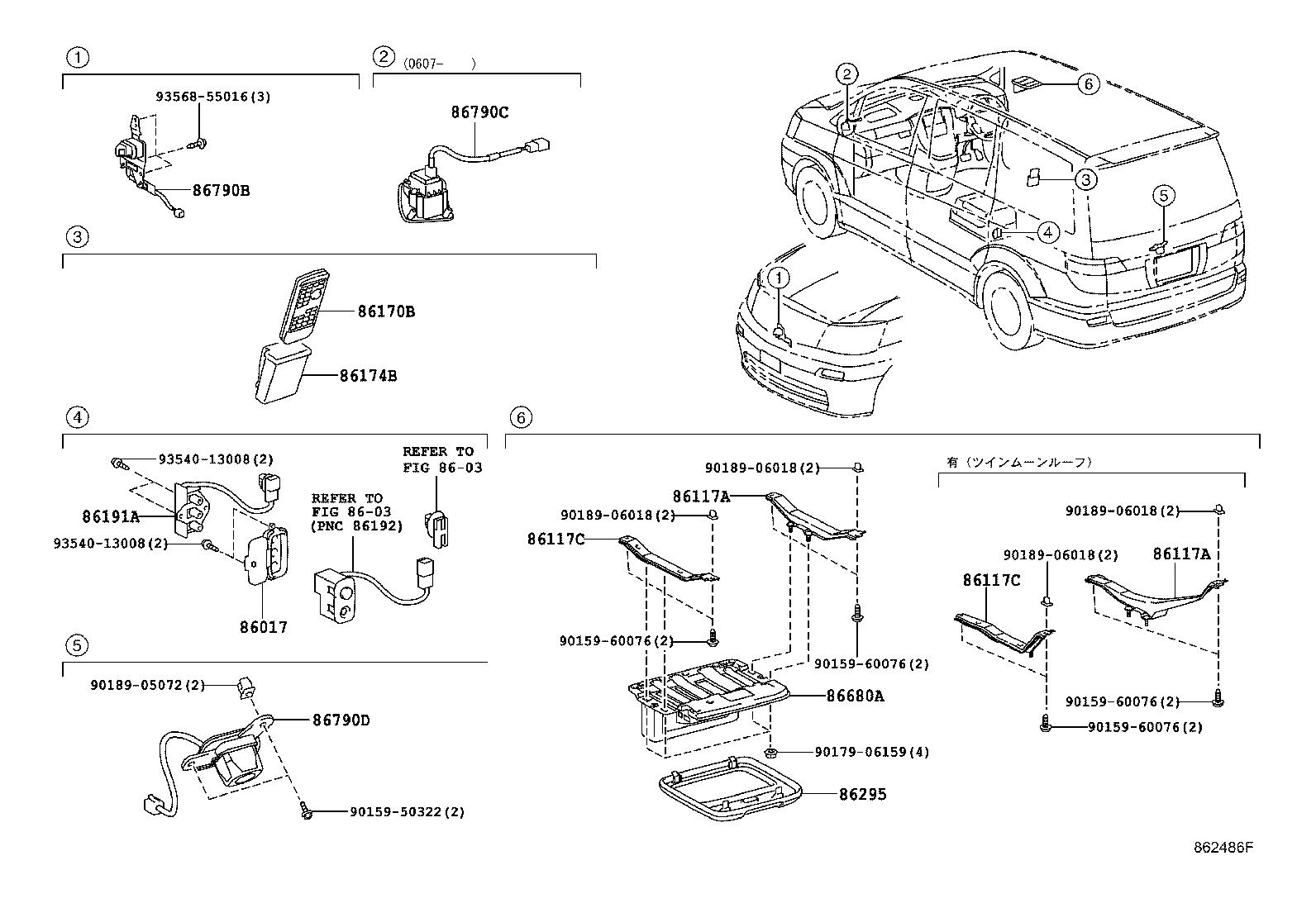

ILLUST NO. 1 OF 2(0504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86017 - PARTS SET, VIDEO | ||||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子有り,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..AX,MX,MZ VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..08S;ANH1#,MNH1#..07S..(AX,MX,MZ) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,IVORY,TRIM0# |
1 | ||
| 86017-28010A0 |
ANH1#,MNH1#..08S;ANH1#,MNH1#..07S..(AX,MX,MZ) ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ),IVORY,TRIM0# |
1 | ||
| 86117A - BRACKET, TELEVISION DISPLAY, A | ||||
| 86117-58280 |
ANH1#,MNH1# |
1 | ||
| 86117-58010 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58030 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58180 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117-58300 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 86117-58160 |
ANH1#,MNH1#..AX,MX 有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117A - BRACKET, TELEVISION DISPLAY, A | ||||
| 86117-58280 |
ANH1#,MNH1# |
1 | ||
| 86117-58010 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58030 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58180 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117-58300 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 86117-58160 |
ANH1#,MNH1#..AX,MX 有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-58290 |
ANH1#,MNH1# |
1 | ||
| 86117-58020 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58170 |
ANH1#,MNH1#..AX,MX 有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117-58040 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58190 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117-58310 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-58290 |
ANH1#,MNH1# |
1 | ||
| 86117-58020 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58170 |
ANH1#,MNH1#..AX,MX 有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117-58040 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86117-58190 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86117-58310 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-58010 |
ANH1#,MNH1# ﾘﾔﾃﾚﾋﾞ有り,7ｲﾝﾁ ﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86170-58030 |
ANH1#,MNH1#..AX,MX 有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86174B - CASE, SWITCH & VOLUME | ||||
| 86174-58010 |
ANH1#,MNH1#..4FC ﾘﾔﾃﾚﾋﾞ有り |
1 | ||
| 86174-58010 |
ANH1#,MNH1#..AX,MX 有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86174-58010 |
ANH1#,MNH1#..AX,MX 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ)&有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-58010 |
ANH1#,MNH1# VTR端子有り |
1 | ||
| 86191-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ&有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ) |
1 | ||
| 86191-58010 |
ANH1#,MNH1# VTR端子&ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ有り |
1 | ||
| 86191-58010 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 86191-58010 |
ANH1#,MNH1# VTR端子&ﾍｯﾄﾞﾎｰﾝ端子有り |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-58010A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0# |
1 | ||
| 86295-58020A0 |
ANH1#,MNH1#..AX,MX 有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ),IVORY,TRIM0# |
1 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-58010A0 |
ANH1#,MNH1#..AX,MX,MZ FUJITSU TEN,ﾘﾔﾃﾚﾋﾞ有り,IVORY,TRIM0#,7ｲﾝﾁ ﾃﾞｨｽﾌﾟﾚｲ |
1 | ||
| 86680-58030A0 |
ANH1#,MNH1#..AX,MX MATSUSHITA,有り(ﾘﾔｼｰﾄｴﾝﾀｰﾃｲﾒﾝﾄｼｽﾃﾑ),IVORY,TRIM0# |
1 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-58020A0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,WHITE PM.,042 ,2JD,ALPHARDV |
1 | ||
| 86790-58020G0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,LT.GREEN M.M.,6T2,ALPHARDu |
1 | ||
| 86790-58020D0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,BORDEAUX MC,3P2,ALPHARD V |
1 | ||
| 86790-58020B1 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,SILVER ME.,1C0,ALPHARD V |
1 | ||
| 86790-58020C0 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,BLACK MC,209,ALPHARD V |
1 | ||
| 86790-58020B0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,GRAY,042 ,1C0 ,1E8 ,209 ,2JD ,3P2 ,593 ,6T2,ALPHARD G |
1 | ||
| 86790-58020B2 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,GRAY M.M,1E8,ALPHARD V |
1 | ||
| 86790-58020F0 |
ANH1#,MNH1#..AX,MX,MZ ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り,GOLD ME.,593,ALPHARD V |
1 | ||
| 86790-58070B0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,GRAY,042 ,070 ,1E4 ,1F7 ,209 ,3P9 ,3R0,593 ,8K8 |
1 | ||
| 86790-58070A0 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,WHITE PM.,042 |
1 | ||
| 86790-58070B0 |
ANH1#,MNH1#..AX,MX,MZ ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,GRAY,042 ,070 ,1E4 ,1F7 ,209 ,3P9 ,3R0 ,593 ,8K8 |
1 | ||
| 86790-58070B1 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,SILVER ME.,1E4 |
1 | ||
| 86790-58070B1 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,SILVER ME.,1E4 |
1 | ||
| 86790-58070D1 |
ANH1#,MNH1#..AX,MX,MZ ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,BLACKISH RED MC.,3R0 |
1 | ||
| 86790-58070J0 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,DK.BLUE MC.,8K8 |
1 | ||
| 86790-58070D1 |
ANH1#,MNH1#..AX,MX,MZ ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,BLACKISH RED MC.,3R0 |
1 | ||
| 86790-58070A0 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,WHITE PM.,042 |
1 | ||
| 86790-58070B3 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,SILVER ME.,1F7 |
1 | ||
| 86790-58070F0 |
ANH1#,MNH1#..AX,MX,MZ ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,GOLD ME.,593 |
1 | ||
| 86790-58070F0 |
ANH1#,MNH1#..AX,MX,MZ ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,GOLD ME.,593 |
1 | ||
| 86790-58070C0 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,BLACK MC.,209 |
1 | ||
| 86790-58070B3 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,SILVER ME.,1F7 |
1 | ||
| 86790-58070J0 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,DK.BLUE MC.,8K8 |
1 | ||
| 86790-58070C0 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,BLACK MC.,209 |
1 | ||
| 86790-58070A1 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ,WHITE PEARL CS.,070 |
1 | ||
| 86790-58070A1 |
ANH1#,MNH1# ﾌﾞﾗﾝﾄﾞ ﾈｰﾑ & 車名−ｱﾙﾌｧｰﾄﾞV&ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ,WHITE PEARL CS.,070 |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-58011 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 86790-58010 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀｰ有り |
1 | ||
| 86790-58011 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 86790-58010 |
ANH1#,MNH1# ﾊﾞｯｸﾓﾆﾀｰ有り |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-60076 | ||||
| 90179-06159 | ||||
| 90189-05072 | ||||
| 90189-06018 | ||||
| 93540-13008 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8603 | ||||

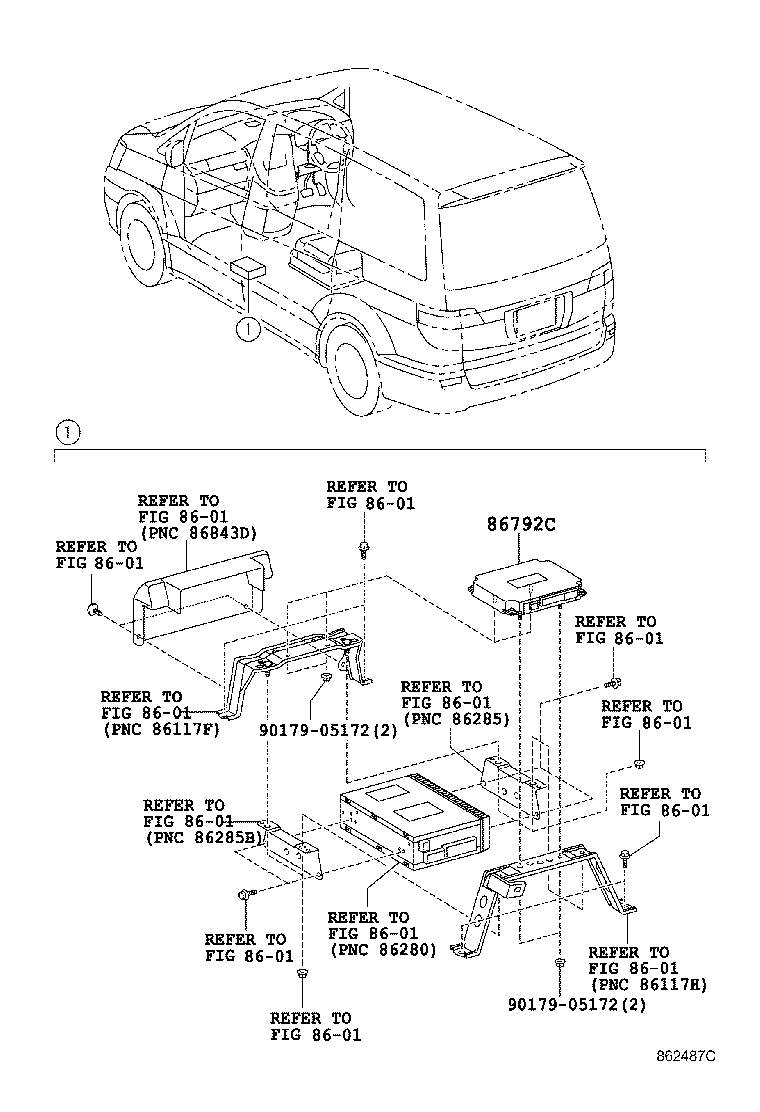

ILLUST NO. 2 OF 2(0504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-58070 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| 86792-58070 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 86792-58071 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 10ｽﾋﾟｰｶ |
1 | ||
| 86792-58071 |
ANH1#,MNH1# ｵｰﾃﾞｨｵ−ﾏﾙﾁﾃﾞｨｽﾌﾟﾚｲ 6ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90179-05172 | ||||
| Linked diagrams | ||||
| 8601 | ||||
