ANH15W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0205- )ANH15,MNH15

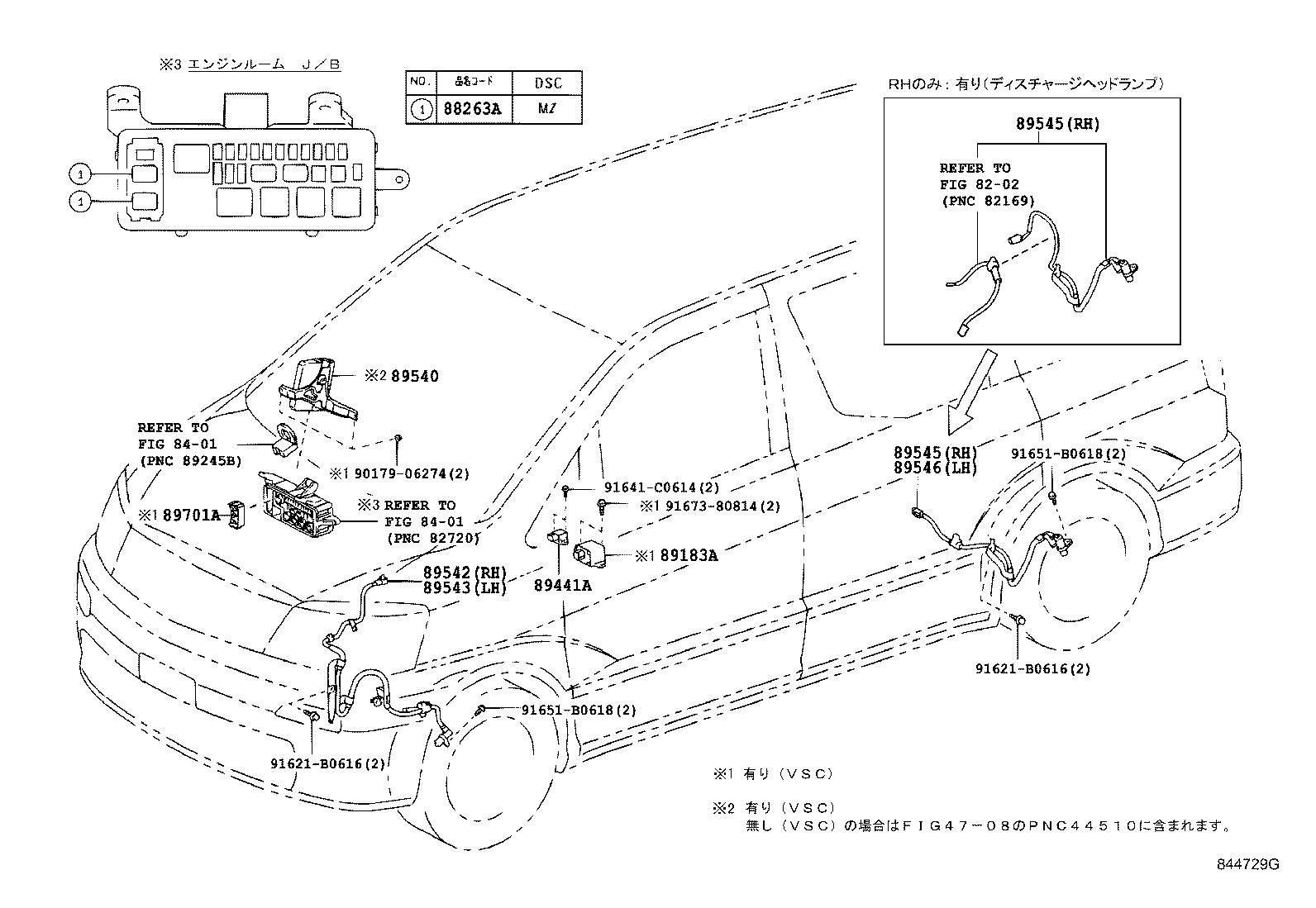

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89441A - SENSOR, DECELERATION
89441-60010	ANH15,MNH15	05/2002 - 04/2005	1
89542 - SENSOR, SPEED, FRONT RH
89542-28090	ANH1#,MNH1#	05/2002 - 04/2005	1
89543 - SENSOR, SPEED, FRONT LH
89543-28090	ANH1#,MNH1#	05/2002 - 04/2005	1
89545 - SENSOR, SPEED, REAR RH
89545-58020	ANH15..AX ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ	05/2002 - 04/2005	1
89545-58010	ANH15..AX	05/2002 - 04/2005	1
89545 - SENSOR, SPEED, REAR RH
89545-58020	ANH15..AX ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ	05/2002 - 04/2005	1
89545-58010	ANH15..AX	05/2002 - 04/2005	1
89546 - SENSOR, SPEED, REAR LH
89546-58010	ANH15,MNH15	05/2002 - 04/2005	1
Common parts
90179-06274
91621-B0616
91641-C0614
91651-B0618
91673-80814
Linked diagrams
8202
8401
