ANH15W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205-0504)AX,MX,MZ

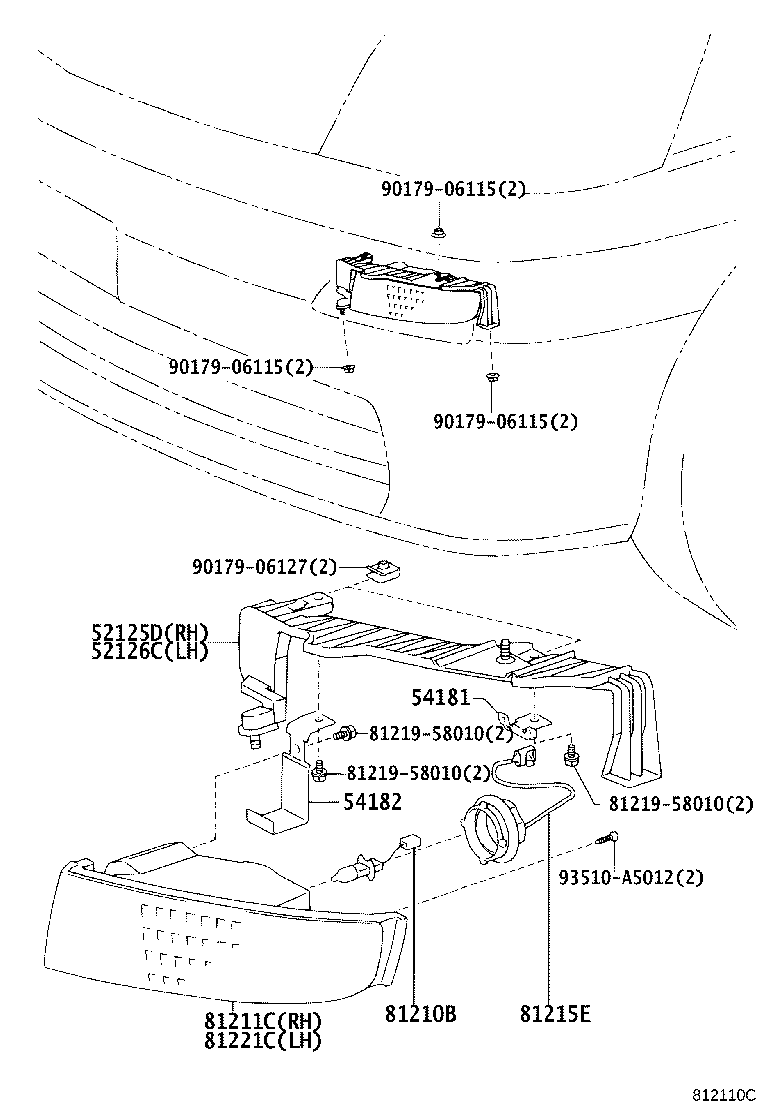

Click highlighted areas on diagram

diagram 52125D 52126C 54181 54182 81210B 81211C 81215E 8121958010 8121958010 8121958010 81221C 9017906115 9017906115 9017906115 9017906127 93510A5012
Part # Description Qty Price
52125D - BRACKET, FOG LAMP MOUNTING, RH
52125-58010

ANH1#,MNH1#..AX,MX,MZ

 1
52126C - BRACKET, FOG LAMP MOUNTING, LH
52126-58010

ANH1#,MNH1#..AX,MX,MZ

 1
54181 - BRACKET, FOG LAMP BASE, NO.1
54181-58010

ANH1#,MNH1#..AX,MX,MZ

 2
54182 - BRACKET, FOG LAMP BASE, NO.2
54182-58010

ANH1#,MNH1#..AX,MX,MZ

 2
81210B - BULB, FOG LAMP
90981-13071

ANH1#,MNH1#..AX,MX,MZ

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-58031

ANH1#,MNH1#..AX,MX,MZ

 1
81211-58030

ANH1#,MNH1#..AX,MX,MZ

 1
81215E - CORD, FOG LAMP
81215-26020

ANH1#,MNH1#..AX,MX,MZ

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-58031

ANH1#,MNH1#..AX,MX,MZ

 1
81221-58030

ANH1#,MNH1#..AX,MX,MZ

 1
Common parts
81219-58010
90179-06115
90179-06127
93510-A5012
