ANH15W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )08S

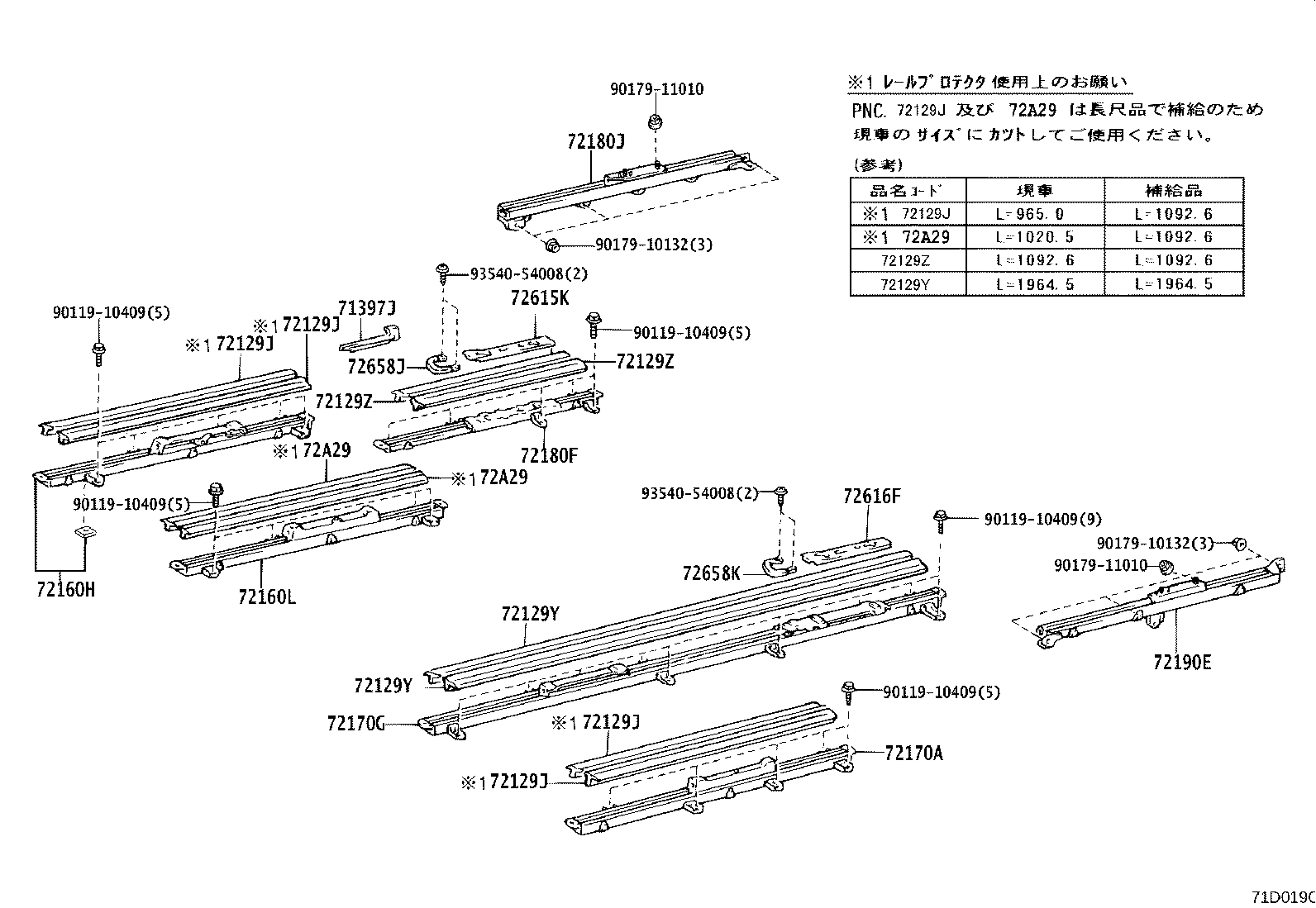

Click highlighted areas on diagram

diagram 71397J 72129J 72129J 72129J 72129J 72129Y 72129Y 72129Z 72129Z 72160H 72160L 72170A 72170G 72180F 72180J 72190E 72615K 72616F 72658J 72658K 72A29 72A29 9011910409 9011910409 9011910409 9011910409 9011910409 9017910132 9017910132 9017911010 9017911010 9354054008 9354054008
Part # Description Qty Price
71397J - STOPPER, REAR SEAT
71397-58010

ANH1#,MNH1#..08S

 1
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58040A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 4
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58040A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 4
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58040A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 4
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58040A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 4
72129Y - PROTECTOR, SEAT TRACK LOWER RAIL, NO.3
72129-58030A0

ANH1#,MNH1#..08S..(AX,MX,MZ)

IVORY,TRIM0#

 2
72129Y - PROTECTOR, SEAT TRACK LOWER RAIL, NO.3
72129-58030A0

ANH1#,MNH1#..08S..(AX,MX,MZ)

IVORY,TRIM0#

 2
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-58040A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
72129-58040B0

ANH1#,MNH1#..08S

STONE,TRIM1#

 2
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-58040A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 2
72129-58040B0

ANH1#,MNH1#..08S

STONE,TRIM1#

 2
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-58010

ANH1#,MNH1#..08S

 1
72160L - TRACK ASSY, REAR NO.1 SEAT, RH
72170-58010

ANH1#,MNH1#..08S

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-58020

ANH1#,MNH1#..08S

 1
72170G - TRACK ASSY, REAR NO.1 SEAT, LH
72160-58020

ANH1#,MNH1#..08S

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72190-58020

ANH1#,MNH1#..08S

 1
72180J - TRACK ASSY, REAR NO.2 SEAT, RH
72180-58010

ANH1#,MNH1#

 1
72180-58010

ANH1#,MNH1#

 2
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-58010

ANH1#,MNH1#

 2
72190-58010

ANH1#,MNH1#

 1
72615K - COVER, REAR SEAT LOCK STRIKER, RH
72615-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
72616F - COVER, REAR SEAT BACK LOCK STRIKER, LH
72615-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
72658J - KNOB, REAR SEAT LOCK HANDLE, RH
72658-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
72658K - KNOB, REAR SEAT LOCK HANDLE, LH
72658-58010A0

ANH1#,MNH1#..AX,MX,MZ

IVORY,TRIM0#

 1
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-58040A0

ANH1#,MNH1#..08S..(AX,MX,MZ)

IVORY,TRIM0#

 2
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-58040A0

ANH1#,MNH1#..08S..(AX,MX,MZ)

IVORY,TRIM0#

 2
Common parts
90119-10409
90179-10132
90179-11010
93540-54008
