ANH15W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )ANH15,MNH15

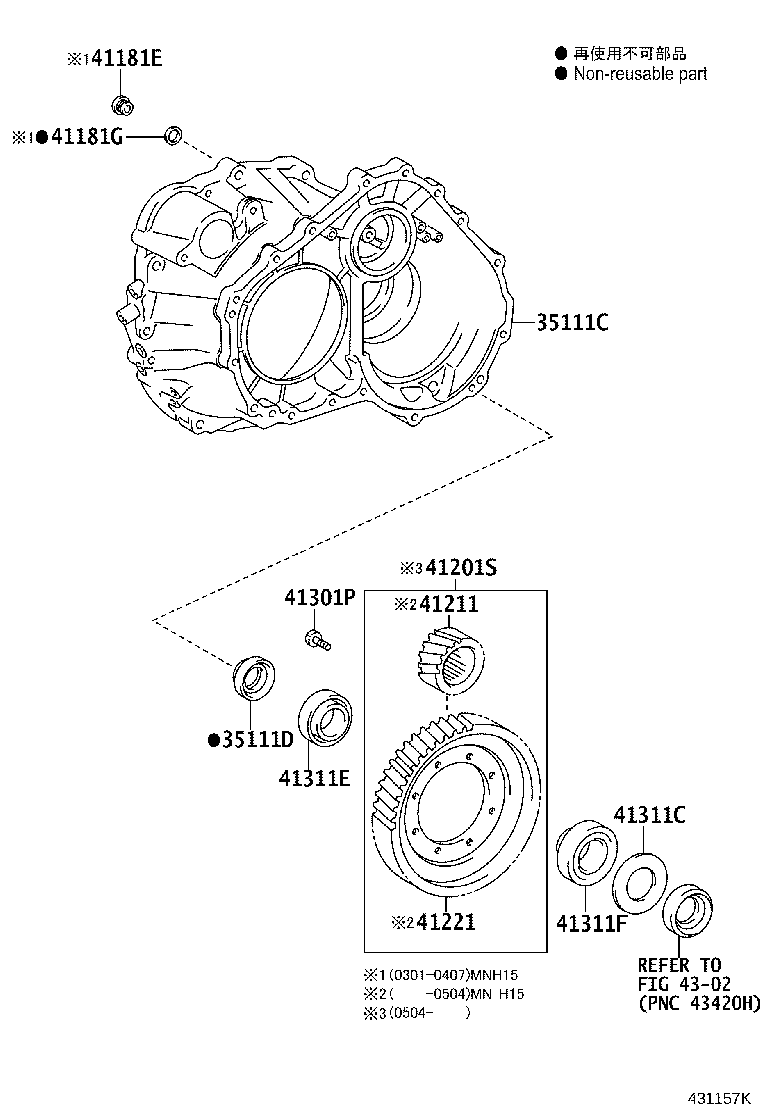

Click highlighted areas on diagram

U140F,U151F

diagram 35111C 35111D 41181E 41181G 41201S 41211 41221 41301P 41311C 41311E 41311F 4302
Part # Description Qty Price
35111C - HOUSING, TRANSAXLE
35105-42012

ANH15

 1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-62004

ANH15,MNH15

 1
41211 - PINION, DIFFERENTIAL DRIVE
41211-42030

ANH15

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-42060

ANH15

 1
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90105-12302

ANH15,MNH15

 16
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-79002

ANH15,MNH1#

厚さ=2.05,ﾏｰｸ 1

 1
90564-79006

ANH15,MNH1#

厚さ=2.25,ﾏｰｸ 5

 1
90564-79001

ANH15,MNH1#

厚さ=2.00,ﾏｰｸ 0

 1
90564-79004

ANH15,MNH1#

厚さ=2.15,ﾏｰｸ 3

 1
90564-79009

ANH15,MNH1#

厚さ=2.40,ﾏｰｸ 8

 1
90564-79007

ANH15,MNH1#

厚さ=2.30,ﾏｰｸ 6

 1
90564-79014

ANH15,MNH1#

厚さ=2.65,ﾏｰｸ D

 1
90564-79003

ANH15,MNH1#

厚さ=2.10,ﾏｰｸ 2

 1
90564-79010

ANH15,MNH1#

厚さ=2.45,ﾏｰｸ 9

 1
90564-79017

ANH15,MNH1#

厚さ=2.80,ﾏｰｸ G

 1
90564-79011

ANH15,MNH1#

厚さ=2.50,ﾏｰｸ A

 1
90564-79005

ANH15,MNH1#

厚さ=2.20,ﾏｰｸ 4

 1
90564-79013

ANH15,MNH1#

厚さ=2.60,ﾏｰｸ C

 1
90564-79016

ANH15,MNH1#

厚さ=2.75,ﾏｰｸ F

 1
90564-79015

ANH15,MNH1#

厚さ=2.70,ﾏｰｸ E

 1
90564-79018

ANH15,MNH1#

厚さ=2.85,ﾏｰｸ H

 1
90564-79008

ANH15,MNH1#

厚さ=2.35,ﾏｰｸ 7

 1
90564-79012

ANH15,MNH1#

厚さ=2.55,ﾏｰｸ B

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-62004

ANH15,MNH15

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50057

ANH15,MNH1#

 1
Linked diagrams
4302
