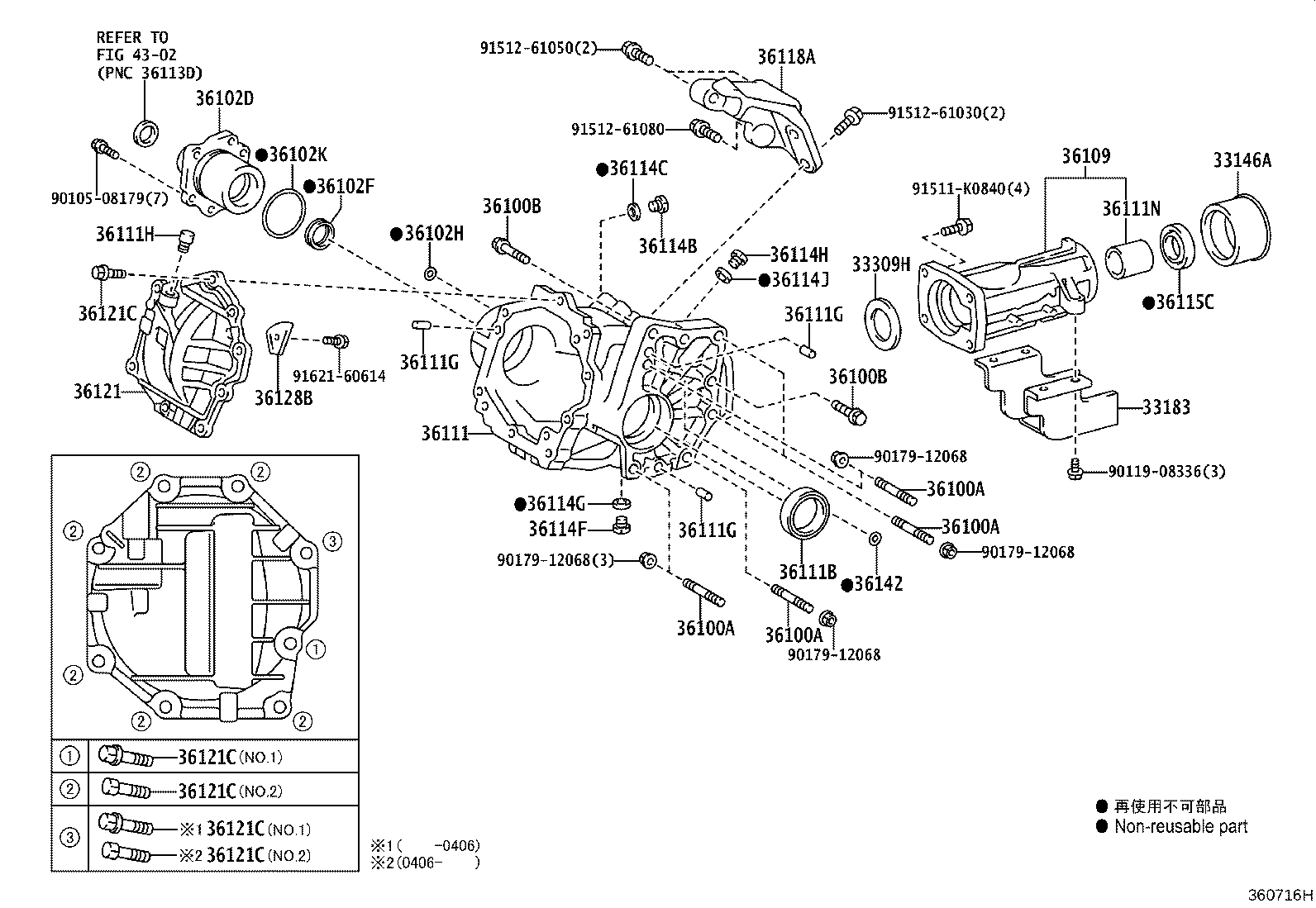

ANH15W-PRPGK (2002)
Toyota Alphard G/V
(0205- )ANH15,MNH15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
ANH15,MNH15 |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-33010 |
ANH15,MNH15 |
1 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-21450 |
ANH15,MNH15 厚さ=1.64,ﾏｰｸ QC |
1 | ||
| 36275-21070 |
ANH15,MNH15 厚さ=1.26,ﾏｰｸ CA |
1 | ||
| 36275-21010 |
ANH15,MNH15 厚さ=1.20,ﾏｰｸ AA |
1 | ||
| 36275-21090 |
ANH15,MNH15 厚さ=1.28,ﾏｰｸ CC |
1 | ||
| 36275-21030 |
ANH15,MNH15 厚さ=1.22,ﾏｰｸ AC |
1 | ||
| 36275-21050 |
ANH15,MNH15 厚さ=1.24,ﾏｰｸ BB |
1 | ||
| 36275-21170 |
ANH15,MNH15 厚さ=1.36,ﾏｰｸ FB |
1 | ||
| 36275-21150 |
ANH15,MNH15 厚さ=1.34,ﾏｰｸ EC |
1 | ||
| 36275-21190 |
ANH15,MNH15 厚さ=1.38,ﾏｰｸ GA |
1 | ||
| 36275-21110 |
ANH15,MNH15 厚さ=1.30,ﾏｰｸ DB |
1 | ||
| 36275-21410 |
ANH15,MNH15 厚さ=1.60,ﾏｰｸ PB |
1 | ||
| 36275-21250 |
ANH15,MNH15 厚さ=1.44,ﾏｰｸ JA |
1 | ||
| 36275-21310 |
ANH15,MNH15 厚さ=1.50,ﾏｰｸ LA |
1 | ||
| 36275-21270 |
ANH15,MNH15 厚さ=1.46,ﾏｰｸ JC |
1 | ||
| 36275-21430 |
ANH15,MNH15 厚さ=1.62,ﾏｰｸ QA |
1 | ||
| 36275-21130 |
ANH15,MNH15 厚さ=1.32,ﾏｰｸ EA |
1 | ||
| 36275-21370 |
ANH15,MNH15 厚さ=1.56,ﾏｰｸ NA |
1 | ||
| 36275-21330 |
ANH15,MNH15 厚さ=1.52,ﾏｰｸ LC |
1 | ||
| 36275-21350 |
ANH15,MNH15 厚さ=1.54,ﾏｰｸ MB |
1 | ||
| 36275-21290 |
ANH15,MNH15 厚さ=1.48,ﾏｰｸ KB |
1 | ||
| 36275-21210 |
ANH15,MNH15 厚さ=1.40,ﾏｰｸ GC |
1 | ||
| 36275-21230 |
ANH15,MNH15 厚さ=1.42,ﾏｰｸ HB |
1 | ||
| 36275-21390 |
ANH15,MNH15 厚さ=1.58,ﾏｰｸ NC |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12033 |
ANH15,MNH15 ﾈｼﾞ部長さ=15 & 27,長さ=58 |
4 | ||
| 90116-12034 |
ANH15,MNH15 ﾈｼﾞ部長さ=19 & 19,長さ=47 |
2 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12033 |
ANH15,MNH15 ﾈｼﾞ部長さ=15 & 27,長さ=58 |
4 | ||
| 90116-12034 |
ANH15,MNH15 ﾈｼﾞ部長さ=19 & 19,長さ=47 |
2 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12033 |
ANH15,MNH15 ﾈｼﾞ部長さ=15 & 27,長さ=58 |
4 | ||
| 90116-12034 |
ANH15,MNH15 ﾈｼﾞ部長さ=19 & 19,長さ=47 |
2 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12033 |
ANH15,MNH15 ﾈｼﾞ部長さ=15 & 27,長さ=58 |
4 | ||
| 90116-12034 |
ANH15,MNH15 ﾈｼﾞ部長さ=19 & 19,長さ=47 |
2 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12228 |
ANH15,MNH15 *12−1.25PX32−24 |
2 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12228 |
ANH15,MNH15 *12−1.25PX32−24 |
2 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-48010 |
ANH15,MNH15 |
1 | ||
| 36102-21010 |
ANH15,MNH15 |
1 | ||
| 36102F - SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER) | ||||
| 90316-37001 |
ANH15,MNH15 |
1 | ||
| 36102H - RING, O (FOR TRANSFER RH BEARING RETAINER) | ||||
| 90301-11018 |
ANH15,MNH15 |
1 | ||
| 36102K - RING, O | ||||
| 90301-70002 |
ANH15,MNH15 |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-33010 |
ANH15,MNH15 |
1 | ||
| 36111 - CASE, TRANSFER | ||||
| 36111-48030 |
ANH15,MNH15 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-58009 |
ANH15,MNH15 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08046 |
ANH15,MNH15 長さ=16,外径=8 |
2 | ||
| 90250-08030 |
ANH15,MNH15 長さ=16,外径=8 |
2 | ||
| 90250-10017 |
ANH15,MNH15 長さ=20,外径=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08046 |
ANH15,MNH15 長さ=16,外径=8 |
2 | ||
| 90250-08030 |
ANH15,MNH15 長さ=16,外径=8 |
2 | ||
| 90250-10017 |
ANH15,MNH15 長さ=20,外径=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08046 |
ANH15,MNH15 長さ=16,外径=8 |
2 | ||
| 90250-08030 |
ANH15,MNH15 長さ=16,外径=8 |
2 | ||
| 90250-10017 |
ANH15,MNH15 長さ=20,外径=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03133 |
ANH15,MNH15 |
1 | ||
| 36111N - BUSH (FOR TRANSFER CASE) | ||||
| 90384-38004 |
ANH15,MNH15 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18055 |
ANH15,MNH15 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
ANH15,MNH15 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
ANH15,MNH15 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
ANH15,MNH15 |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
ANH15,MNH15 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
ANH15,MNH15 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38062 |
ANH15,MNH15 |
1 | ||
| 90311-38090 |
ANH15,MNH15 |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-33020 |
ANH15,MNH15 |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-48010 |
ANH15,MNH15 |
1 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
6 | ||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
7 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
1 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
2 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
6 | ||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
7 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
1 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
2 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
6 | ||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
7 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
1 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
2 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
6 | ||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
7 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
1 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
2 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
6 | ||
| 91511-J0820 |
ANH15,MNH15 NO.2 |
7 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
1 | ||
| 90105-08351 |
ANH15,MNH15 NO.1 |
2 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-21010 |
ANH15,MNH15 |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36141-21010 |
ANH15,MNH15 |
1 | ||
| Common parts | ||||
| 90105-08179 | ||||
| 90119-08336 | ||||
| 90179-12068 | ||||
| 91511-K0840 | ||||
| 91512-61030 | ||||
| 91512-61050 | ||||
| 91512-61080 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 4302 | ||||
